CIMM

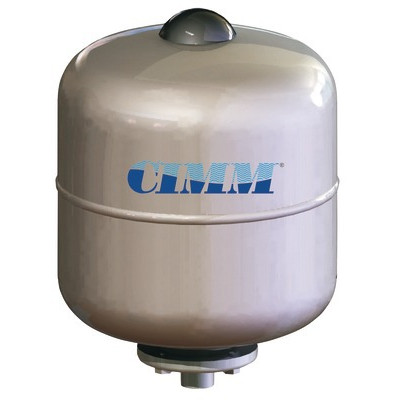

Domestic water expansion vessel - 8liters tank - CIMM : 510842

Reference: 100171

This product has been replaced by 100417

Vessel 8 liters for water heater 180/200/250L. Avoids loss of water due to security valves

Domestic water expansion vessel -12 liters tank - CIMM : 511242

Reference: 100177

This product has been replaced by 100418

Vessel 12 liters for water heater 300/350L. Avoids loss of water due to security valves Maxi temperature 80°C The membrane is suitable for drinking water Connection 3/4M Diam 270mm Height 264mm

Vessel with diaphragm 18 liters 317x350 - CIMM : 820018

Reference: 100007

This product has been replaced by 100402

For central heating installation conform to the DTU 65-11 of 1973 january Tested pressure : 5 bars Service pressure : 3 bars Max temperature : 90 °C Preinflating : 1 bar Dimensions : diam 317mm Height 350mm...

Vessel with diaphragm 24 liters 317x448 - CIMM : 820024

Reference: 100009

This product has been replaced by 100403

For central heating installation conform to the DTU 65-11 of 1973 january Tested pressure : 5 bars Service pressure : 3 bars Max temperature : 90 °C Preinflating : 1 bar Dimensions : diam 317mm Height 448mm...

Expansion valve 35l with base 820035/002 - CIMM : 820035/002

Reference: 100063

This product has been replaced by 100406

expansion vessel 35litres with foot

Domestic water expansion vessel - 5 liters tank - CIMM : 510542

Reference: 100172

This product has been replaced by 100416

Vessel 5 liters for water heater 100/120/150L. Avoids loss of water due to security valves, Maxi temperature 80°C, The membrane is suitable for drinking water, Connection 3/4M Diam 160mm Height 270mm

Expansion tank 100L - CIMM : 820100

Reference: 100083

This product has been replaced by 100409

Expansion tank capacity 100L on foot support

Solar expansion vessel 18L - CIMM : 400018

Reference: 100181

This product has been replaced by 100422

Max working pressure 10 bars Temperature of -10°C/100°C Steel vessel norm PED 97/23/CE Capacity : 18L Fitting 3/4M Diameter 260mm x Height : 380mm Preinflation 2,5 bar color red

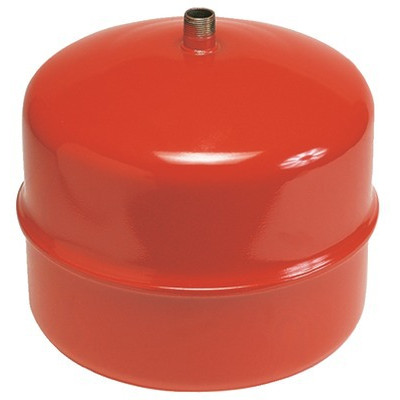

Vessel with diaphragm 35 liters 368x540 - CIMM : 820035

Reference: 100010

This product has been replaced by 100404

For central heating installation conform to the DTU 65-11 of 1973 january Tested pressure : 5 bars Service pressure : 3 bars Max temperature : 90 °C Preinflating : 1,5 bar Dimensions : diam 368mm Height 540mm...

Vessel with diaphragm 12 liters 267x334 - CIMM : 820012

Reference: 100005

This product has been replaced by 100401

For central heating installation conform to the DTU 65-11 of 1973 january Tested pressure : 5 bars Service pressure : 3 bars Max temperature : 90 °C Preinflating : 1 bar Dimensions : Diam 267mm Height 334mm...

Expansion valve 50l with base 820050/002 - CIMM : 820050/002

Reference: 100064

This product has been replaced by 100407

expansion vessel 50litres with foot

Expansion tank 200L - CIMM : 820200

Reference: 100085

This product has been replaced by 100411

Expansion tank capacity 200L on foot support

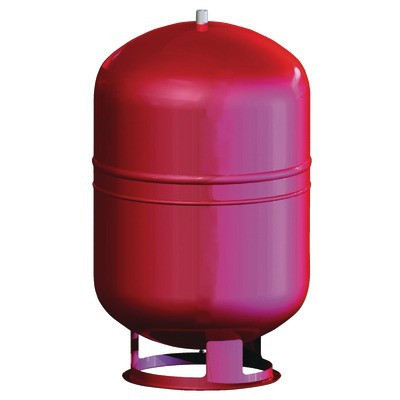

Vessel with diaphragm 80 liters 480x667 - CIMM : 820080

Reference: 100012

This product has been replaced by 100408

For central heating installation conform to the DTU 65-11 of 1973 january Tested pressure : 5 bars Service pressure : 3 bars Max temperature : 90 °C Preinflating : 1,5 bar Dimensions : diam 480mm Height 667mm...

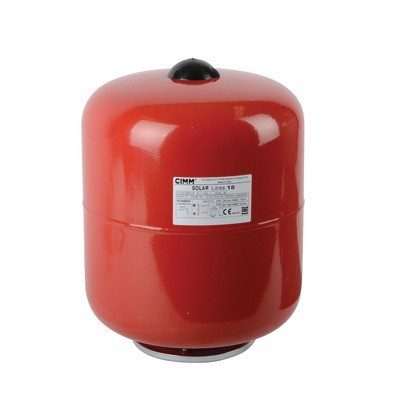

Solar expansion vessel 24L - CIMM : 400024

Reference: 100182

In Stock 5 products

Max working pressure 10 bars Temperature of -10°C/100°C Steel vessel norm PED 97/23/CE Capacity : 24L Fitting 3/4M Diameter 260mm x Height : 490mm Preinflation 2,5 bar color red

Expansion tank with membrane 400l - CIMM : 820400/001

Reference: 110721

This product has been replaced by 100414

650 x 1550

Solar expansion vessel 12L - CIMM : 400012

Reference: 100180

This product has been replaced by 100421

Max working pressure 10 bars Temperature of -10°C/100°C Steel vessel norm PED 97/23/CE Capacity : 12L Fitting 3/4M Diameter 260mm x Height : 315mm Preinflation 2,5 bar color red

Expansion tank 150L - CIMM : 820150

Reference: 100084

This product has been replaced by 100410

Expansion tank capacity 150L on foot support

Vessel with diaphragm 8 liters 217x338 - CIMM : 820008

Reference: 100003

Last items in stock 2 products

For central heating installation conform to the DTU 65-11 of 1973 january Tested pressure : 5 bars Service pressure : 3 bars Max temperature : 90 °C Preinflating : 0,5 bar Dimensions : diam 217mm Height 338mm...
