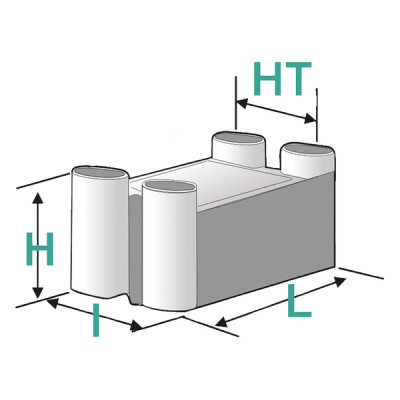

Note : To increase and regulate the flame sensing signal. For installation see Control Unit part of this chapter AL Inlet 240V 50-60Hz -Outlet 260V - 280V - Power 0.7VA - Connection : PTFE 6,35mm terminal- - Dimensions: 62mm long 36mm larg 34mm high - Enteraxial fixation: 54mm Enteraxial HV: 21mm
Note : To increase and regulate the flame sensing signal. For installation see Control Unit part of this chapter AL Inlet 240V 50-60Hz -Outlet 260V - 280V - Power 2,4VA - Connection : PTFE 6,35mm terminal- - Dimensions: 62mm long 36mm larg 34mm high -Enteraxial fixation: 54mm Enteraxial HV: 21mm
Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.
