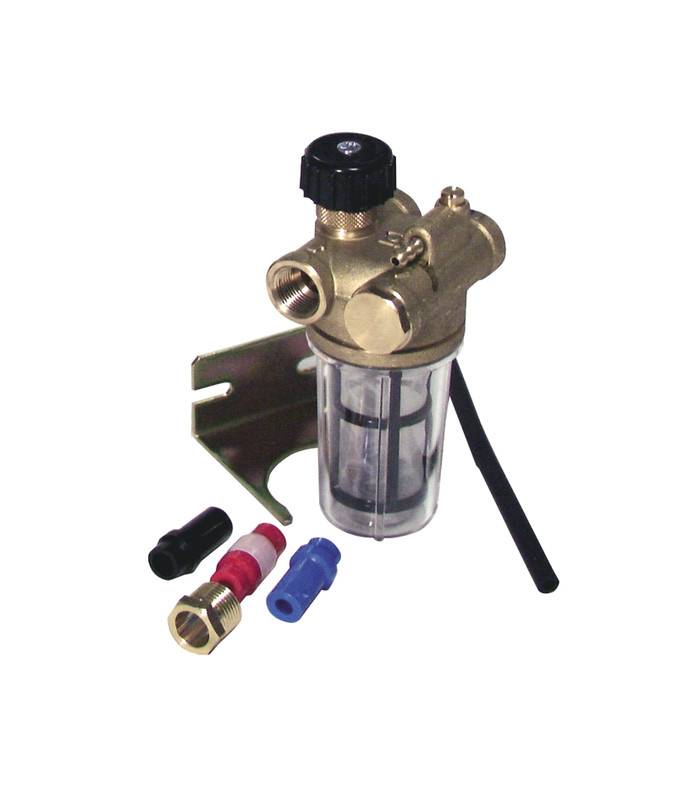

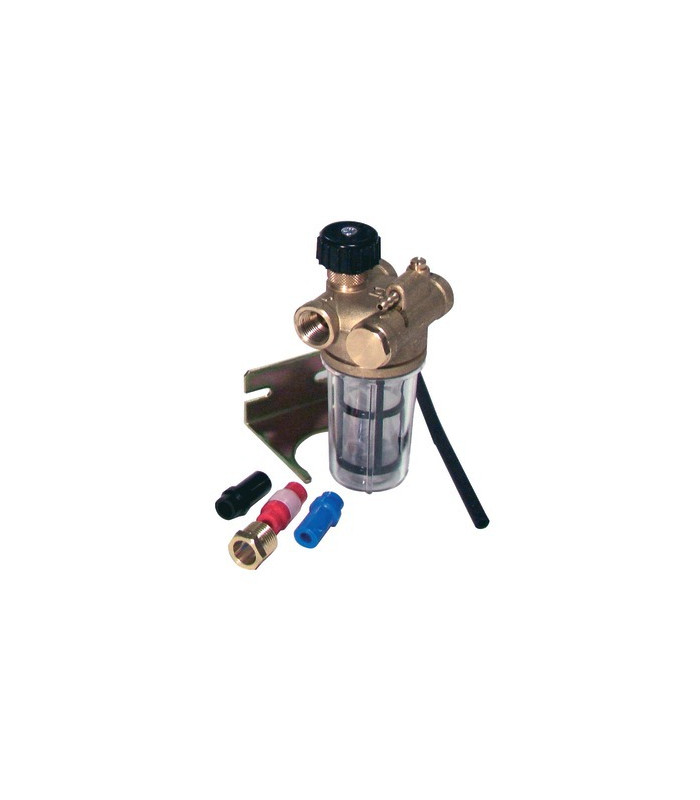

Filter fuel rz recycling with block valve ff3/8" - WATTS INDUSTRIES : 22L0137100

Brass filter for one-pipe installationwith burner pump with 2 hoses.It permits the removing of the return pipe at the tank and using a pipe with a lowdiameterStop valve by suction, filtertransparent bowl (resistant at 10°C - 6 bars)in immutable resin to screw with impermeability by o-ringType RV diameter FF3/8" Supplied with fittings Ø8mm - 10mm - 12mmand metallic fixing bracketCharge losses : 28mm CE at 50L/h90mm CE at 100L/hFlow 400L/h with filter cleanFlow : 100L/h with filter blocked at 75%Caution : the return pressure to the pumpmust not be lower at 0,8 bar

Safety Information :
Installation and replacement of spare parts in the environment of an oil burner must be carried out with care. To ensure proper operation and safety of the unit, we strongly recommend that these operations be carried out by a qualified technician. Incorrect installation can lead to malfunctions, leaks, fire or safety hazards.
