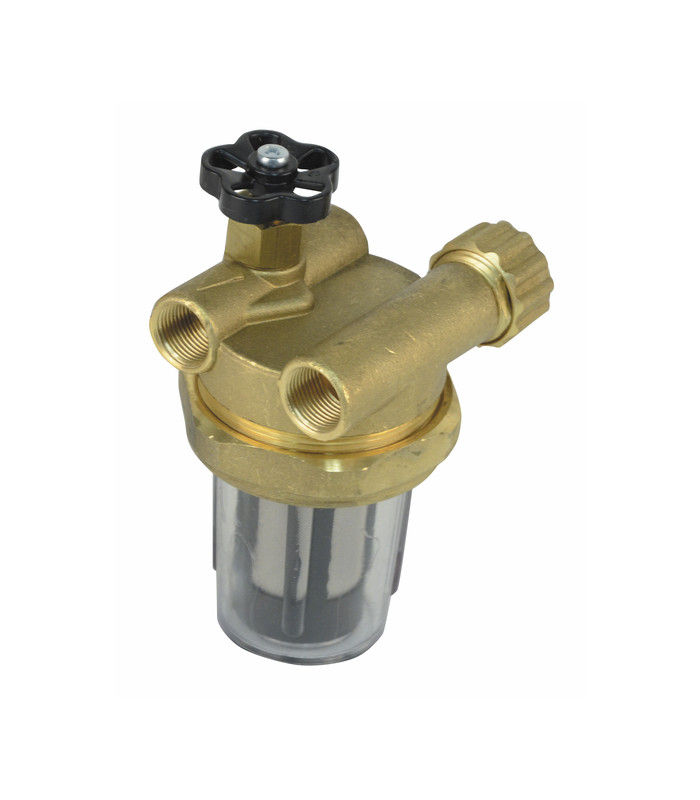

Filter of fuel filtre block valve serial recycling - DIFF

Name: Filter of fuel filtre block valve serial recycling - DIFF
Brand: DIFF
SKU: 903466
Price: 35.3 EUR
Availability: InStock

Standard With stop valve and drainage. Recycling in the filter, No return on the tank. Flow 400 liters/hour. Inlet/Outlet female FF3/8". Conical fittings for copper tube Ø 8 - 10 - 12 mm. Nickel-plated sieve 54 microns.Brass body. Tray in cellulose acetate. Supplied with metallic fixing plate.

Brand:

€35.30 (tax excl.)

In Stock 6 products

Reference:

903466

Download PDF

Add to wishlist

Description
Installed on models ...

Description

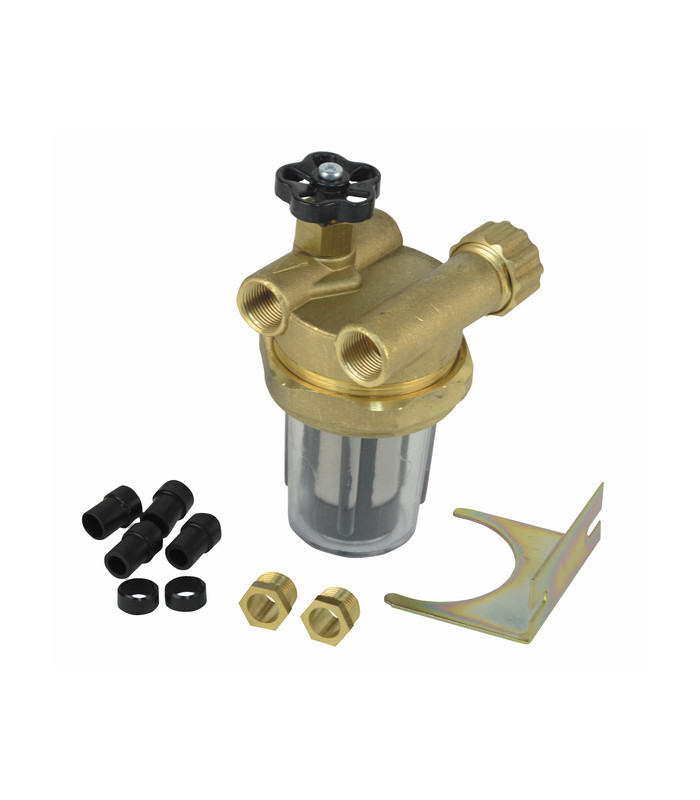

StandardWith stop valve and drainage. Recycling in the filter, No return on the tank. Flow 400 liters/hourInlet/Outlet female FF3/8"Conical fittings for copper tube Ø 8 - 10 - 12 mmNickel-plated sieve 54 micronsBrass bodyTray in cellulose acetateSupplied with metallic fixing plate.

Safety Information :
Installation and replacement of spare parts in the environment of an oil burner must be carried out with care. To ensure proper operation and safety of the unit, we strongly recommend that these operations be carried out by a qualified technician. Incorrect installation can lead to malfunctions, leaks, fire or safety hazards.

Product Details

Reference 903466

Data sheet

FAB_COM_EQ: DIFF PERIPHERIQUE

Installed on models ...
