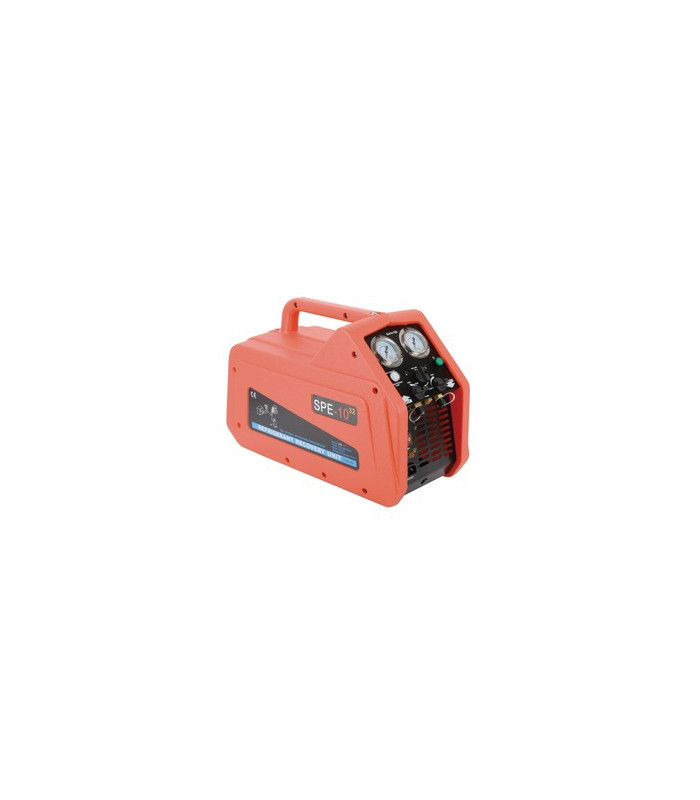

Power transfer unit SPE10-32 HFO - GALAXAIR : SPE-10 -32

Compact and lightweight, its enveloping body in moulded plastic protects the connectors, manometers, valves, switches located on the front of the machine. It transfers all refrigerant fluids in liquid phase and in gaseous phase whose vapour pressure does not exceed 15 bars at 20°C, including R410A (P max = 38.5 bars), and the HFO (R32, R1234yf, ?).HFC CFC, HFC, HCF, pure or mixed, whichever oil is used: minerals, polyol ester, PAG, etc. without risk of deterioration, pollution, or fluid mixing.

Complies with EN35-421 & 378-4 standards.
15.6 kg/h in gaseous phase
111 kg/h in direct liquid phase
373.2 kg/h in liquid phase by overpressuring the installation (depending on the Ø of the hoses and connectors).

Characteristics:

High pressure safety: 38.5 bar
Motor power: 368W (3/4cv)
Weight: 16 kg
Voltage: 220-240VAC 50Hz - 110-120VAC 60Hz
