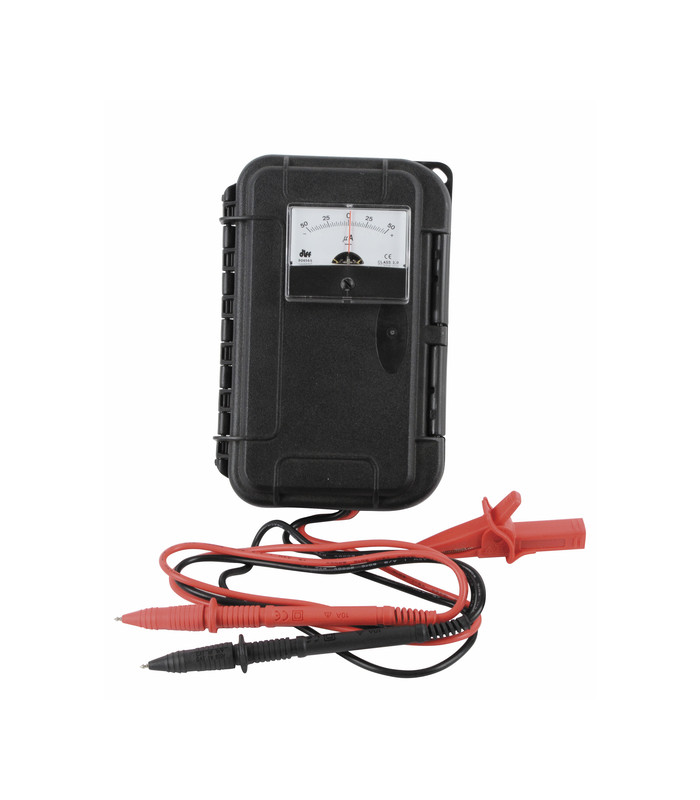

Microammeter map portable -50 to 50µa

The micro ammeter MAP measures the very low intensity of the flame sensing and UV cell current for fuel blue flame burners with flame sensing probe. Checks functionning status of flame detection :By flame sensing (burner with electrode); By UV cell Measure range -10'A / 0 / +10'A, -50'A/ 0 /-50'A or -100'A / 0 / -100'A (according to the selected model).Its zero indicator allows measure even if the wires are commutated. A micro Ammeter is installed in series (on the same line as the probe or the cell to be measured). Dimensions :136mm long 87mm wide 65mm high

Safety Information :
Check cables regularly for signs of wear, tear or damage. Do not use damaged cables.Ensure that plugs and connectors are in good condition and free from corrosion.
