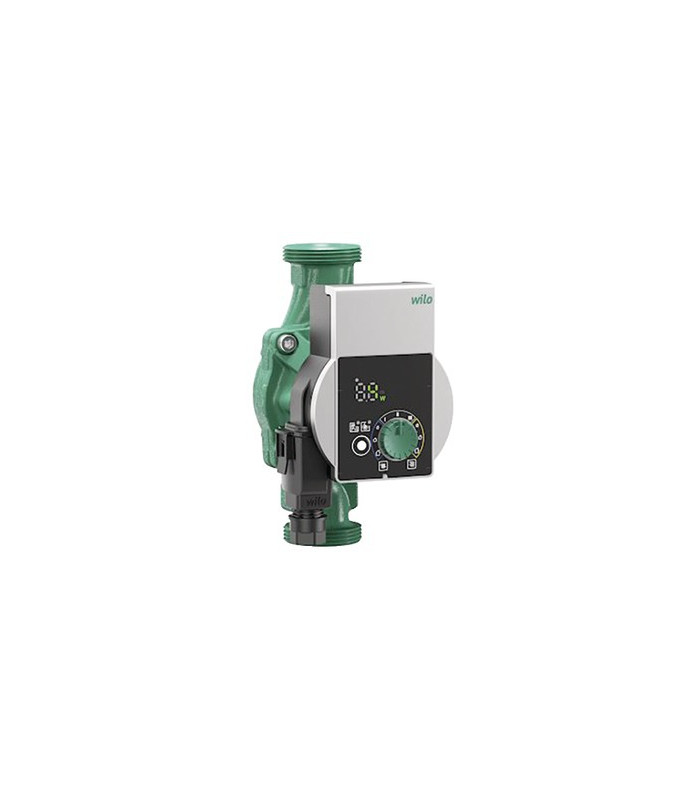

Yonos Pico 25/1-6-130-(row) - WILO : 4215516

Complies with ErPGlandless circulation pump with threaded connection, blocking-current proof CE motor and integrated electronic power control Equipment / function: ¿ p-c for constant differential pressure ¿ p-v for variable differential pressure Setting the operating mode Setting of pump output (delivery head) Pump venting function Infinitely variable power adjustment according to the operating mode Automatic motoring function Display of power consumption in W Display of delivery head during setting Technical characteristics Fluid temperature -10°C to +110°C Mains connection 1~ 230V, 50Hz Protection class IPX2D Threaded connection Rp 1/2, Rp 1 and Rp 1/4 Max. operating pressure 6 bar

Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.
