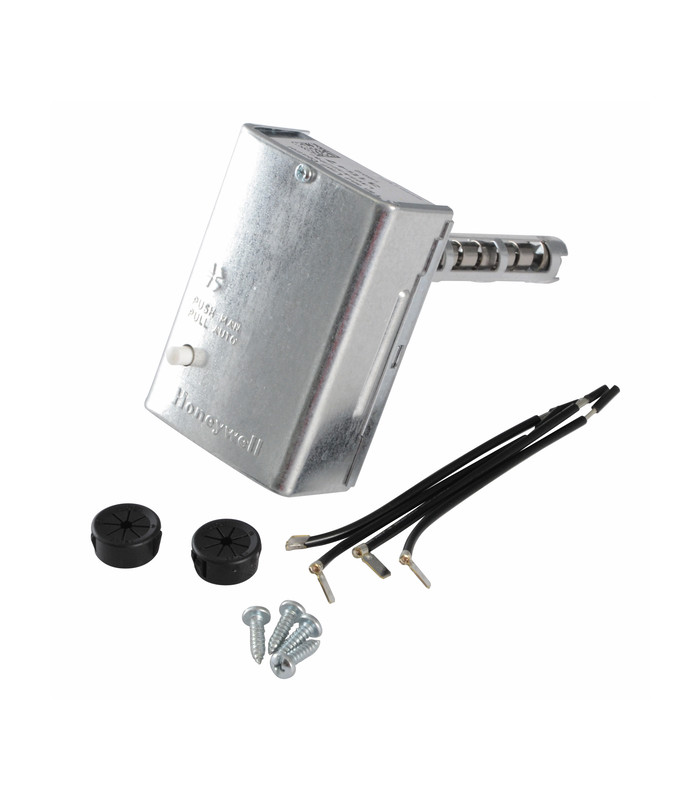

Double air thermostat - l4064b1683/b2228 - DIFF

Adjusting devices of temperature L4064B are suited for all forced-air heating system. They act on the burner during the passage in regulator and on the fan to the blowing adjusting.DESCRIPTION:Adjustment under cover.MANUAL - AUTO switch. Cut-off power 7A - 250V. Automatic rearming fan.Automatic rearming burner.Adjusting from 10 to 65°C in stop of fan.Adjusting from 20 to 75°C in start of fan.Preset to 93°C in burner regulator. Adjusting possible until 121°C in burner regulator.Possibility to work on 2 different voltage grid (cut the deck).Supplied with 3 connection leads.Fixing by plate housing. Dimensions :Length 110mm,Width 75mm,Height 50mm,Diameter probe 20mm x 295mm,NOTE : temperatures in Farenheit.Conversion : C° = (°F - 32) x 5/9

Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.
