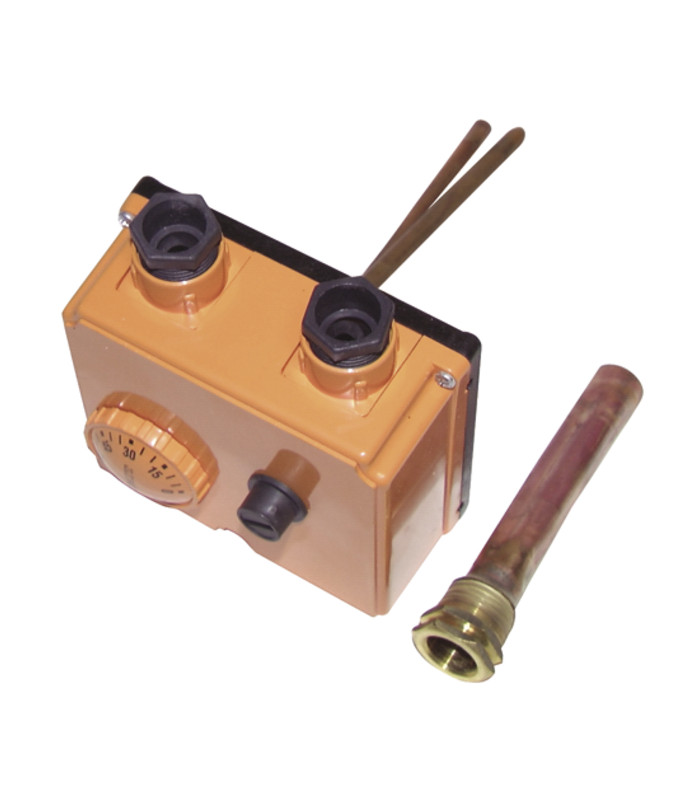

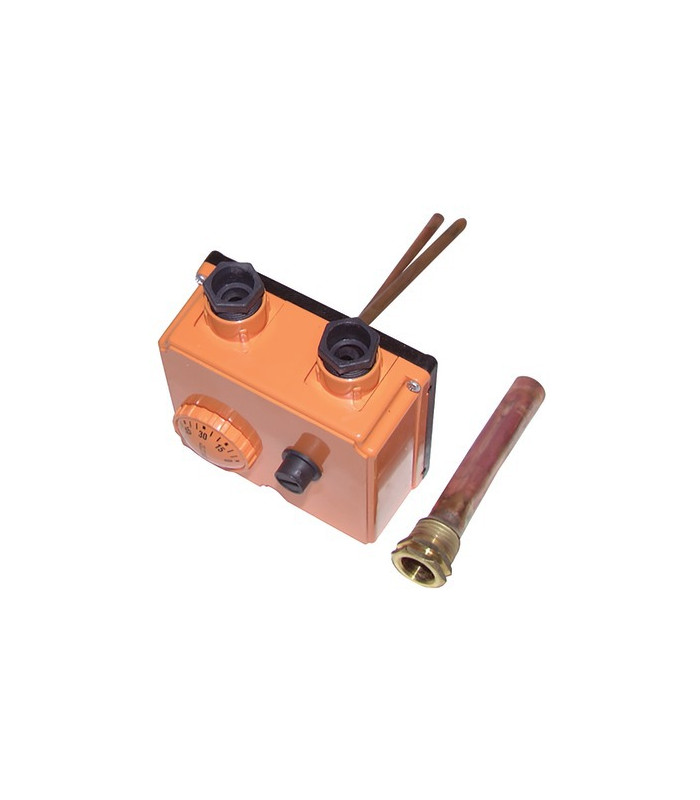

Casing box immersion aquastat imit - tlsc 542714- IMIT - 542714C

Name: Casing box immersion aquastat imit - tlsc 542714- IMIT - 542714C
Brand: IMIT
SKU: 705486
Price: 47.76 EUR
Availability: InStock

Double submersion thermostat for control and blocking overheating piping temperature Adjusting from 0 to 90°C External adjusting Differential 6°C Manual rearming on safety 90 to 110°C Reversing contact 10A - 250V Supplied with pocket M1/2" x 100mm Protection IP40 Dimensions : Length 100mm Width 105mm Height 55mm

Brand:

€47.76 (tax excl.)

In Stock 19 products

Reference:

705486

Download PDF

Add to wishlist

Description
Caracteristique

Description

Double submersion thermostat for control and blocking overheating piping temperatureAdjusting from 0 to 90°CExternal adjustingDifferential 6°CManual rearming on safety 90 to 110°CReversing contact 10A - 250VSupplied with pocket M1/2" x 100mmProtection IP40Dimensions :Length 100mmWidth 105mmHeight 55mm

Caractéristiques

Length (mm)	100.00
Logo Marque	IMIT
Shut-off capacity	10(2.5)A 7A
Range °C	0/90
Ø	F1/2"
Differential	6 4
Control contact	inverseur
Power Supply / Voltage	250V 380V
Safety (°C)	100
Package Height (m)	0.105
Package Width (m)	0.115
Package Length (m)	0.19
Package Weight (kg)	0.442

Product Details

Reference 705486

Data sheet

FAB_COM_EQ: ORIGINE FABRICANT

Length (mm): 100.00

Logo Marque: IMIT

Shut-off capacity: 10(2.5)A 7A

Range °C: 0/90

Ø: F1/2"

Differential: 6 4

Control contact: inverseur

Power Supply / Voltage: 250V 380V

Safety (°C): 100

Package Height (m): 0.105

Package Width (m): 0.115

Package Length (m): 0.19

Package Weight (kg): 0.442
