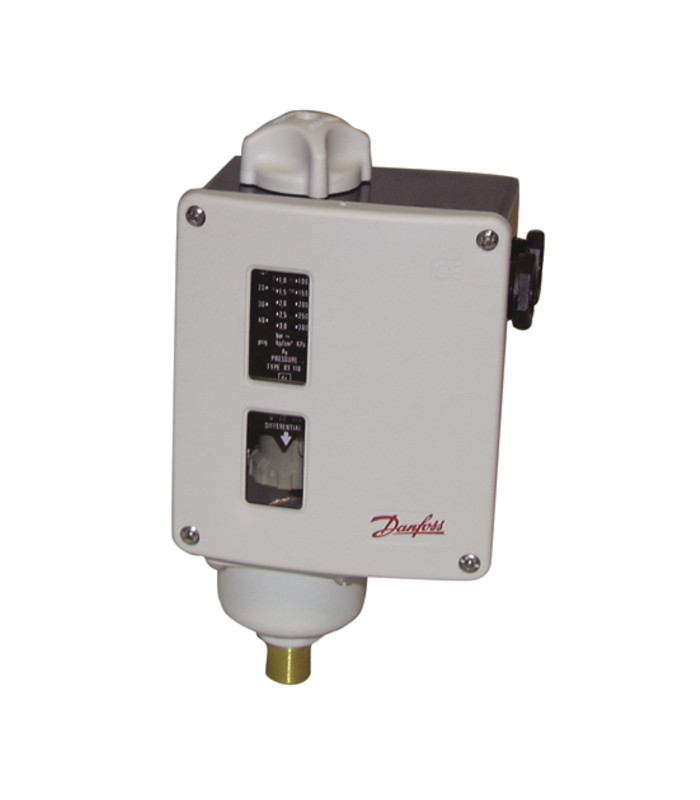

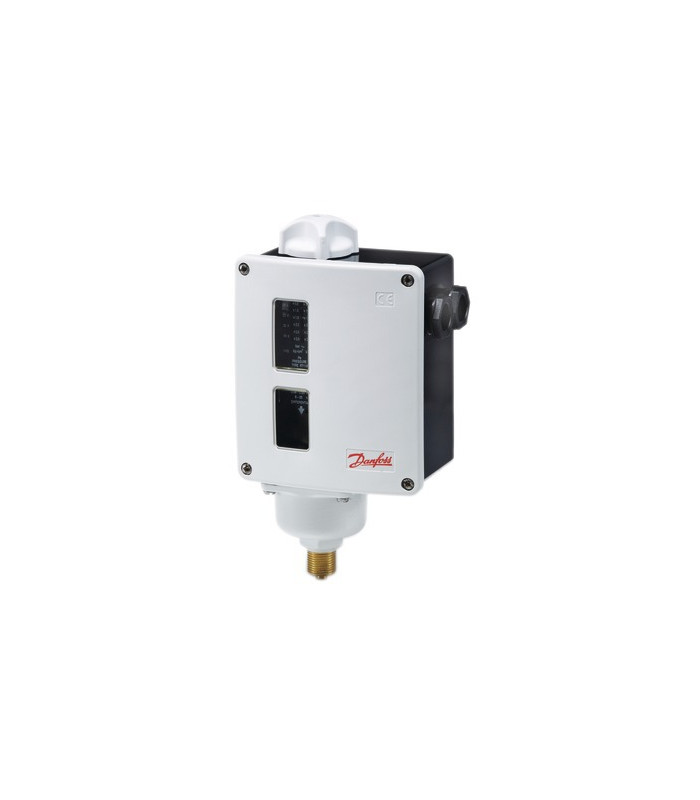

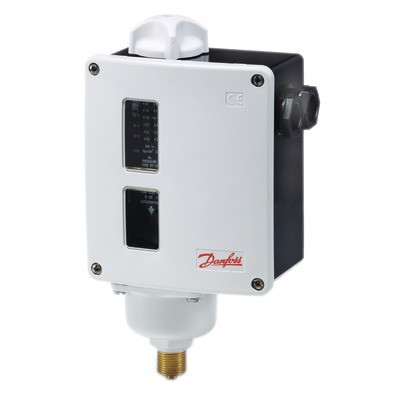

Pressure switch type rt 200 17-5237- DANFOSS - 017-523766
Pressure switch type rt 200 17-5237- DANFOSS - 017-523766

Pressure switch type rt 200 17-5237- DANFOSS - 017-523766

Pressure switches RT have an unipolar change-over contact controlled by pressure. The position is acording to the inlet pressure and the set point value. Used especially in industry and navy. RT range also have safety pressure switch for heating installation. FEATURES : Switch activated by a controled pressure variation. Male fitting 3/8" Cut-off power 10(4) A 400V. Range : 0,2 to 6 bar Adjusting differential : 0,25 to 1,2 bar Max working pressure : 22 bar Protection IP66 Dimensions : Height 196mm Width 110mm Deepth 74mm

Brand:
DANFOSS
€466.36 (tax excl.)
In Stock 9 products
Reference:
708030
  Download PDF
Add to wishlist
Description







Caractéristiques
Max. pressure (bar) service 22b / essai 25b
Differential 0,25 à 1,2b
Type 017-523766
Connection 3/8"G
Adjustment 0,2 à 6 bar
Package Height (m) 0.08
Package Width (m) 0.13
Package Length (m) 0.285
Package Weight (kg) 1
Product Details
708030

Data sheet

FAB_COM_EQ
ORIGINE FABRICANT
Max. pressure (bar)
service 22b / essai 25b
Differential
0,25 à 1,2b
Type
017-523766
Connection
3/8"G
Adjustment
0,2 à 6 bar
Package Height (m)
0.08
Package Width (m)
0.13
Package Length (m)
0.285
Package Weight (kg)
1
