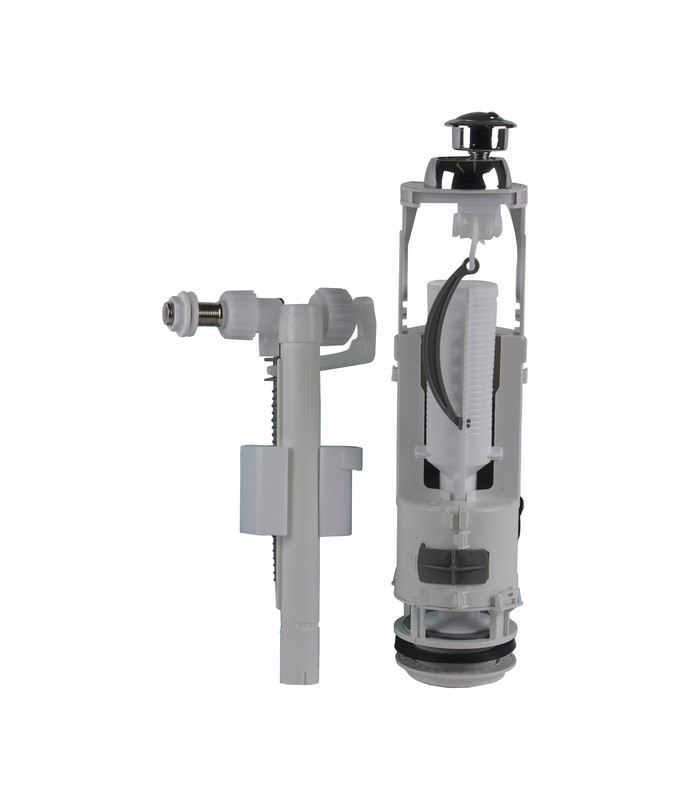

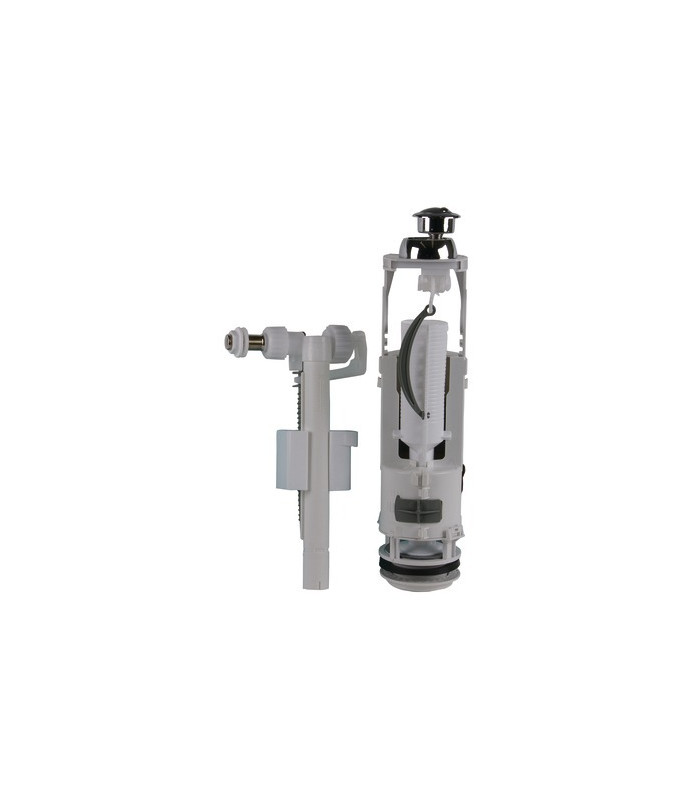

Wc - Double volum mechanism with pushbutton and valve 37950110 - SIAMP : 37950110

10 years warranty
French norm NF
Autoadjustable chrome-plated control button:
small button = small flush
large button = large flush
Cover drilled from 16 to 50mm
The calliper can be eccentred of 15mm,
The cradle height can be adjusted every 12mm in order to
maintain the tank cover
Overflow device precut every 4mm that is adjustable
from 155 to 245mm
Small flush adjustable 3-4.5L
Residual water setting stopper
ABS plug with rinse flow 2.75L/s
Can be adapted on 58-72mm discharge holes
Covering height with escutcheon from
282 to 430mm
Covering height without rosace from
300 to 448mm
Delivered with gasket and screw
Faucet:
10 years warranty
French norm NF
Use pressure from 0.5 to 16 bars
Nickel brass-plated water supply port
G 3/8 with screwed port and round washer
Instant hydraulic closure to
avoid waterhammer
Quick filling
Adjustable water level
Quiet - Group 1 acoustic class
Compact
The pipeline can be cut to be adapted to low height
tanks
Antisiphon device
Maintenance without disassembling the supply device
Right or left sided supply
Flow rate 0.14L/s at 3 bars
