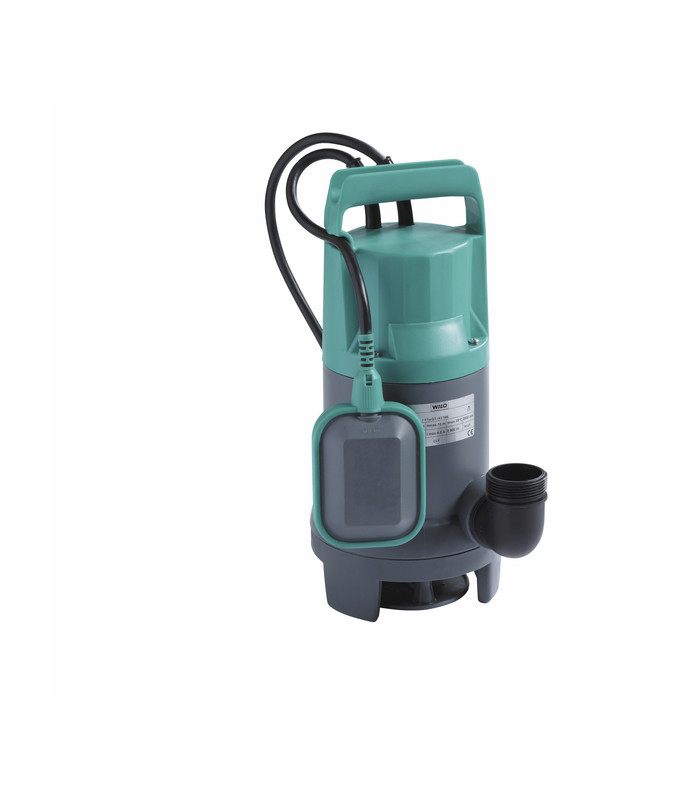

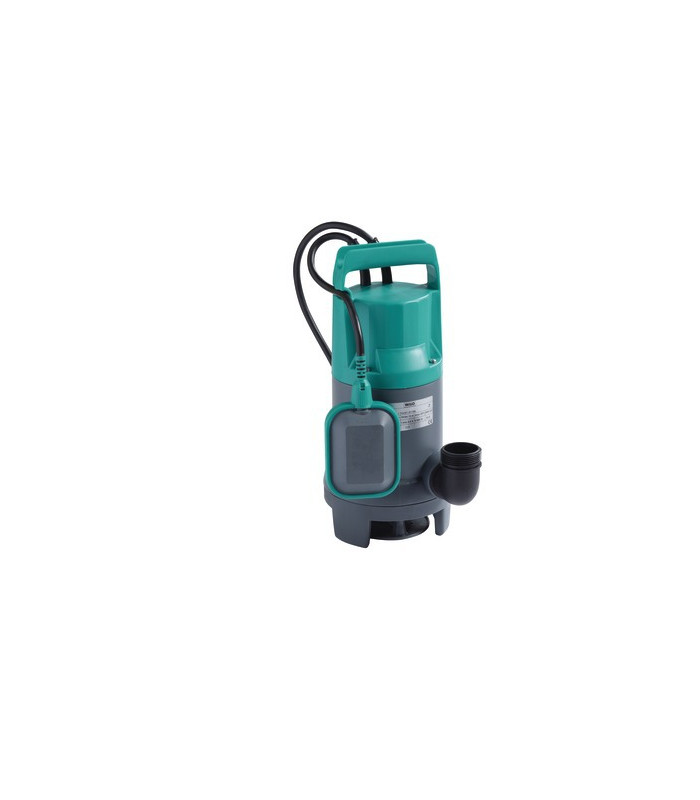

Submersible pump INITIAL WASTE 14-9- WILO - 4168022
Submersible pump for dirty water in submerged single-piece unit for stationary submersible installation and transportable.
Hydraulic
The pumps in the Initial Waste range are equipped with a Vortex wheel and accept a particle size of 20mm.
Minimum possible suction level up to 40 mm. The discharge side connector is an Rp 1-1/2" horizontal threaded orifice
Motor
Immersed motor in AC version and integrated thermal protection with automatic restart.
Cable
The pump is equipped with a 10m connecting cable with protective contact plug and an installed float switch.
Ease of installation in narrow pits due to compact construction and low weight Automatic motor protection by temperature sensor Automatic mode due to the float switch Exceptional reliability provided by a robust material and double sealing ring Liquid temperature range: 3...35°C Immersion depth: 5m Size grading: 20mm Cable length: 10m
Read more
Hydraulic
The pumps in the Initial Waste range are equipped with a Vortex wheel and accept a particle size of 20mm.
Minimum possible suction level up to 40 mm. The discharge side connector is an Rp 1-1/2" horizontal threaded orifice
Motor
Immersed motor in AC version and integrated thermal protection with automatic restart.
Cable
The pump is equipped with a 10m connecting cable with protective contact plug and an installed float switch.
Ease of installation in narrow pits due to compact construction and low weight Automatic motor protection by temperature sensor Automatic mode due to the float switch Exceptional reliability provided by a robust material and double sealing ring Liquid temperature range: 3...35°C Immersion depth: 5m Size grading: 20mm Cable length: 10m
| Garantie | 3 | |
| Current | 4.5A | |
| Insulation | F | |
| Logo Marque | WILO | |
| Matière | LAITON | |
| Protection | IP68 | |
| Speed (rpm) | 2800 | |
| Flow Rate (m³/h) | 14.0 | |
| Ø | F1"1/2 | |
| Specifications | Hauteur refoulement max. 9m | |
| Power Supply / Voltage | 230V | |
| Number | 1 | |
| PN (bar) | 3 | |
| Package Height (m) | 0.42 | |
| Package Width (m) | 0.205 | |
| Package Length (m) | 0.24 | |
| Package Weight (kg) | 6.24 |
4168022/WI
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- Garantie
- 3
- Current
- 4.5A
- Insulation
- F
- Logo Marque
- WILO
- Matière
- LAITON
- Protection
- IP68
- Speed (rpm)
- 2800
- Flow Rate (m³/h)
- 14.0
- Ø
- F1"1/2
- Specifications
- Hauteur refoulement max. 9m
- Power Supply / Voltage
- 230V
- Number
- 1
- PN (bar)
- 3
- Package Height (m)
- 0.42
- Package Width (m)
- 0.205
- Package Length (m)
- 0.24
- Package Weight (kg)
- 6.24
