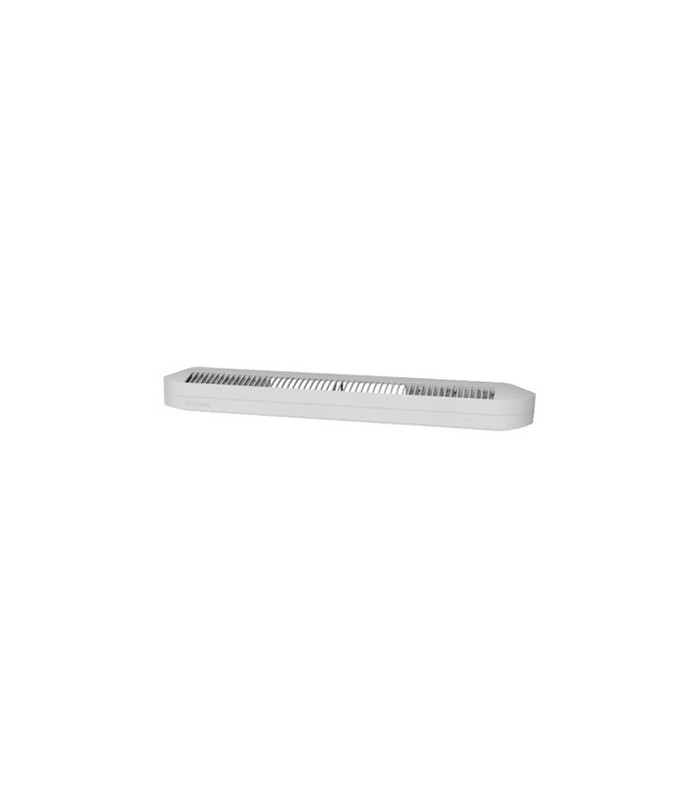

Acoustic air inlet MINI ESEA 15m3, CEA and screws - ANJOS : 0847

This model 15 m³/h allows breaking the breakable clips to get 22 or 30 m³/h.

Self adjustable air inlet acoustic, for indoor only, built in white polystyrene with a grid against the mosquitoes
Use on surfaces sheltered from the weather.

External dimensions:
Length 305mm
Height 36 mm
Thickness 35 mm (exceeding 15 mm).
Spacing: 276mm
Notch: 160 x 12 mm and 250 x 12 mm.

Cap façade CEA in polystyrene
Dimensions:
Length 295mm
Height 20 mm

Dimensions :
Longueur 295mm
Largeur 20 mm
Epaisseur 8 mm.
Entraxe de fixation 276mm

Delivered as a kit with 4 screws 2 screw covers

Safety Information :
Never block or remove air inlets and extract units. Never block the air passage under doors.
