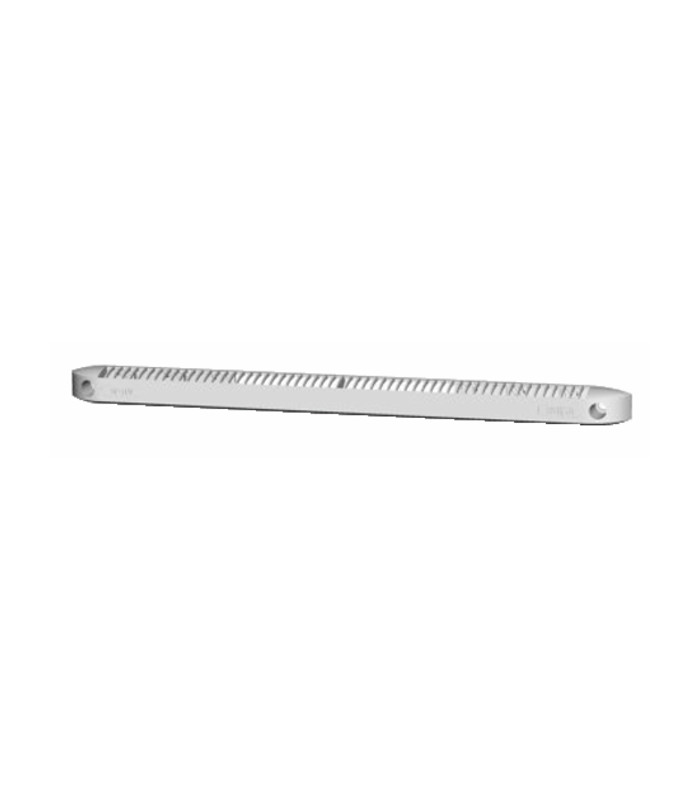

Air inlet kit VM-G15 + CEA + screws - ANJOS : 0805
By cutting the scored clips, this 15m³/h model permits to obtain 22 to 30m³/h on the yard.
Autoadjustable acoustic air inlet, interior mounting, white impact polystyrene with insect grille.
Must be used on weather sheltered surfaces.
Exterior size :
Length 305mm
Width 36mm
Thickness 18mm
Fixing distance 276mm
Cutout 250 x 12mm ad 250 x 15mm.
Impact polystyrene CEA air inlet hood for VM air inlet
Size :
Length 295mm
Width 20mm
Thickness 8mm
Fixing distance 276mm
Delivered in kit with 4 screw + 2 screw covers
