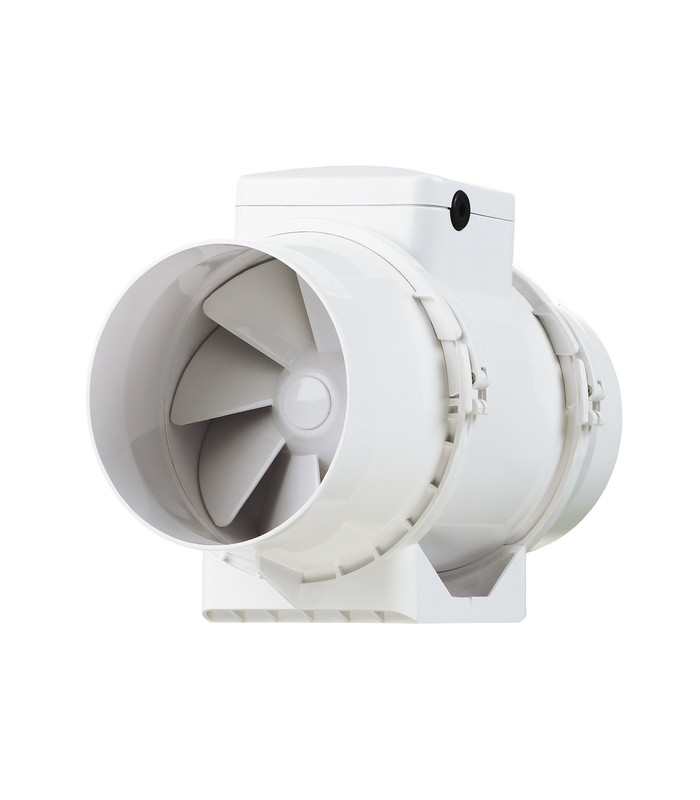

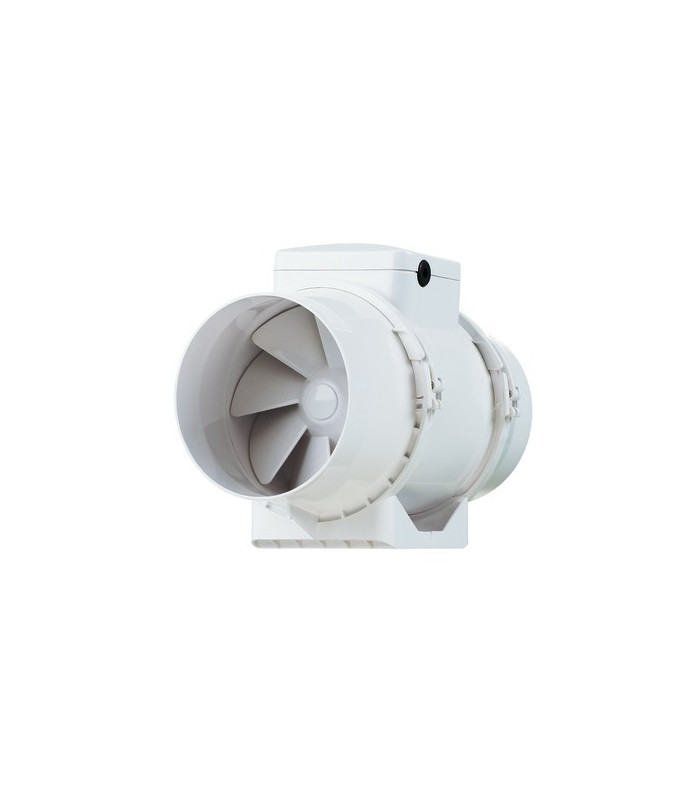

Ventilator for long conduits TT Expert 100 - NATHER : 999209

Ventilator for long conduits TT Expert 100 - NATHER : 999209

Name: Ventilator for long conduits TT Expert 100 - NATHER : 999209
Brand: NATHER
SKU: 50397
Price: 61.8 EUR
Availability: InStock

Ø 100mm - Length 246mm

Brand:

€61.80 (tax excl.)

In Stock 11 products

Reference:

50397

Download PDF

Add to wishlist

Description
Fitted on models...

Description

Ventilator for long conduits up to 12ml
Air supply or extraction.
2-speeds. Static pressure available.
Multi-position installation, interspersed on the duct.
Intended for air renewal.
Maintenance simplified by easy disassembly.
230V-1Ph-50Hz Insulation IPX4

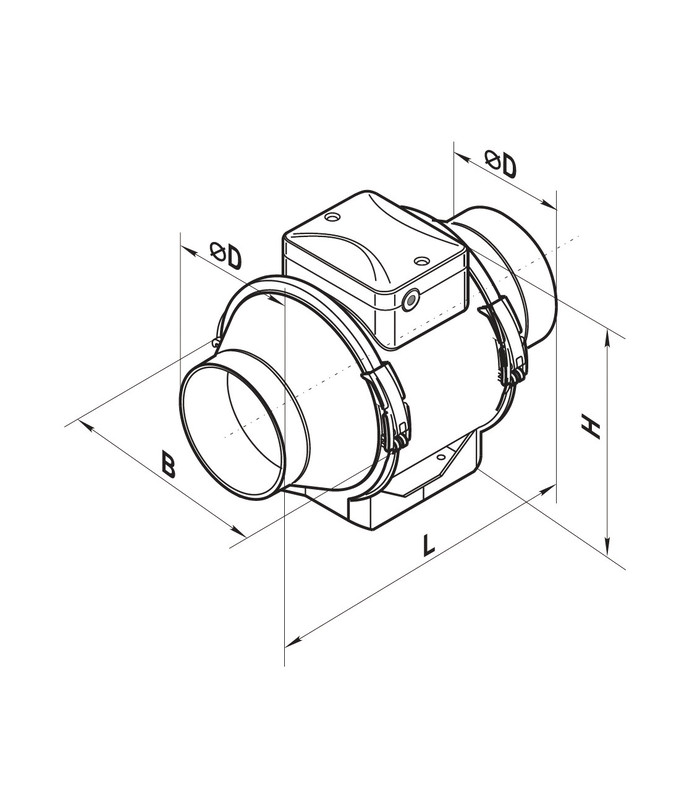

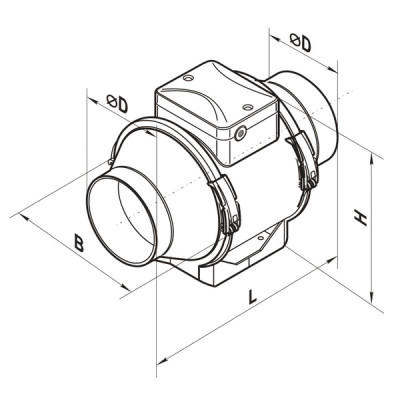

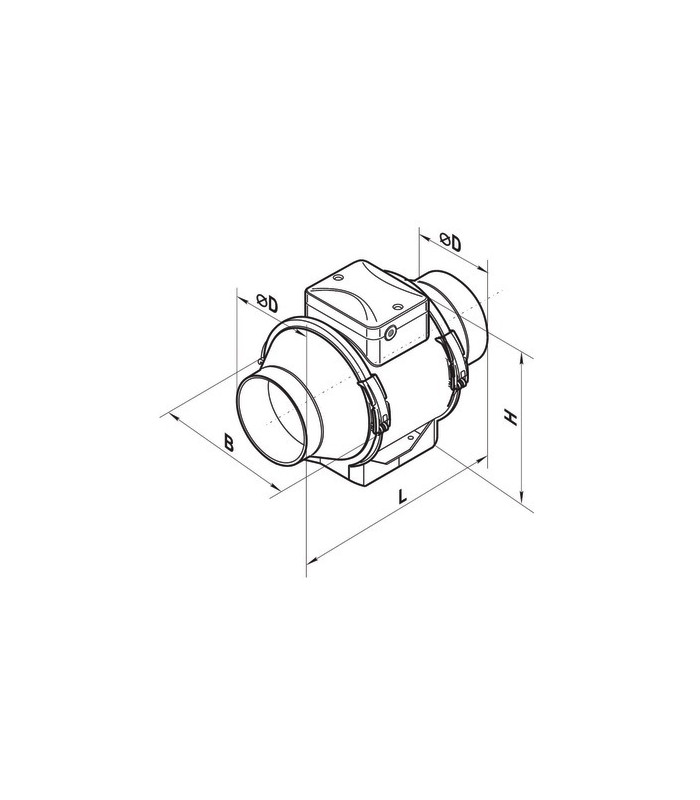

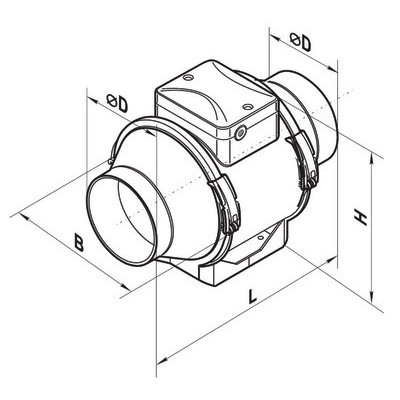

Ø 100mm - Length 246mm
Minimum speed: Consumption 21W - Flow 145m3/h 27dBA
Maximum speed: Consumption 33W - Flow 187m3/h - 38dBA

Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.
