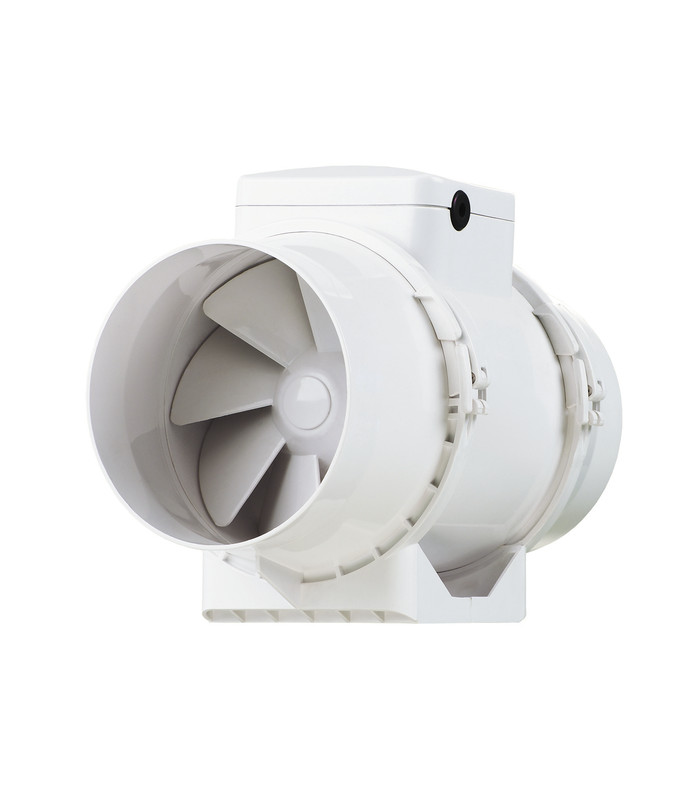

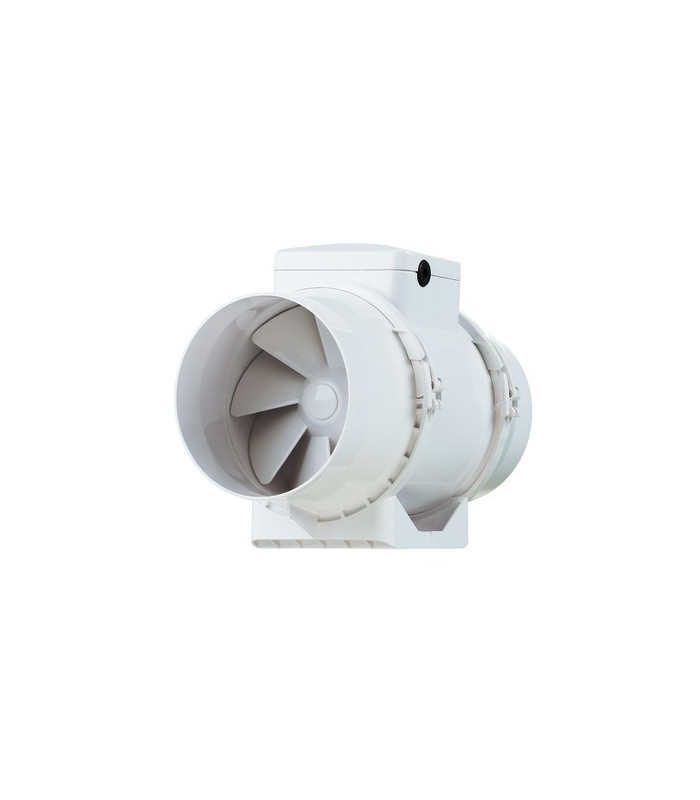

Ventilator for long conduits TT Expert 125 - NATHER : 999210

Ventilator for long conduits TT Expert 125 - NATHER : 999210

Name: Ventilator for long conduits TT Expert 125 - NATHER : 999210
Brand: NATHER
SKU: 50398
Price: 79.55 EUR
Availability: InStock

Ø 125mm - Length 246mm

Brand:

€79.55 (tax excl.)

In Stock 10 products

Reference:

50398

Download PDF

Add to wishlist

Description
Fitted on models...

Description

Ventilator for long conduits up to 12ml
Air supply or extraction.
2-speeds. Static pressure available.
Multi-position installation, interspersed on the duct.
Intended for air renewal.
Maintenance simplified by easy disassembly.
230V-1Ph-50Hz Insulation IPX4

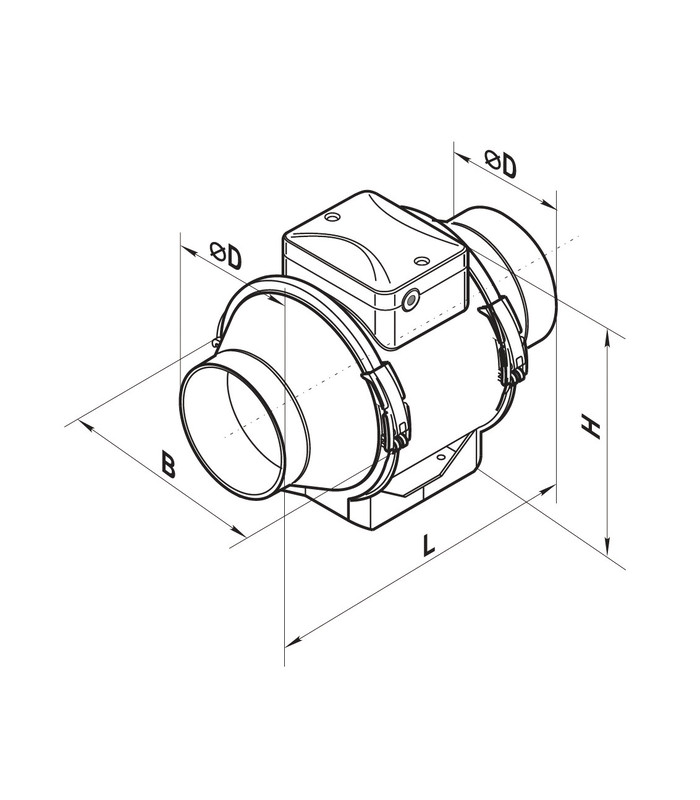

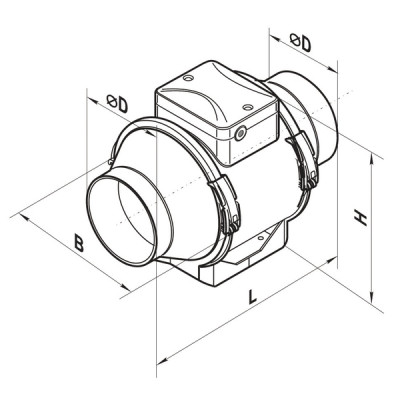

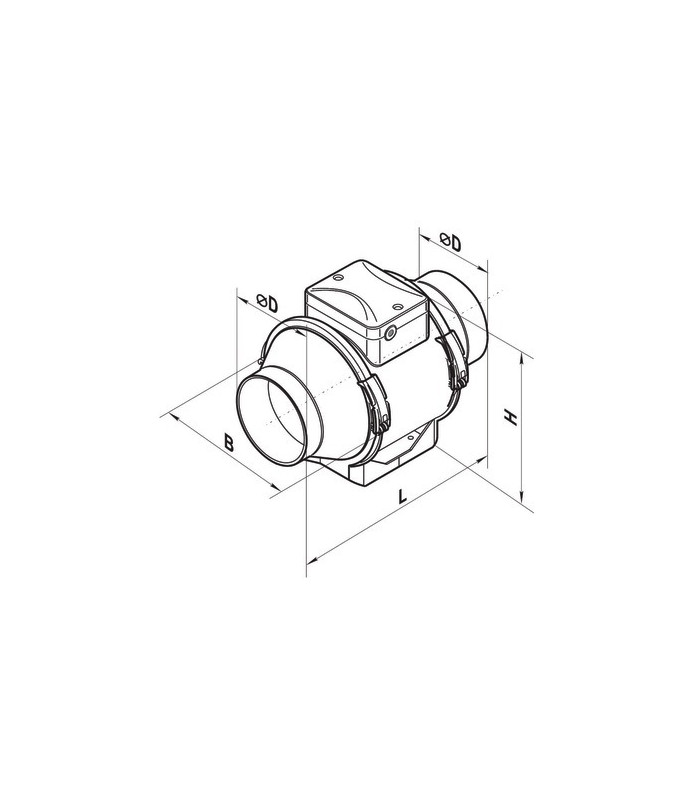

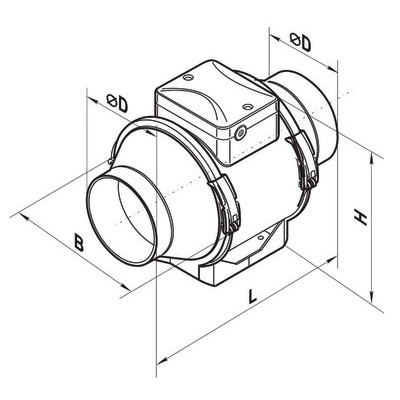

Ø 125mm - Length 246mm
Minimum speed: Consumption 23W - Flow 220m3/h 28dBA
Maximum speed: Consumption 37W - Flow 280m3/h - 37dBA

Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.
