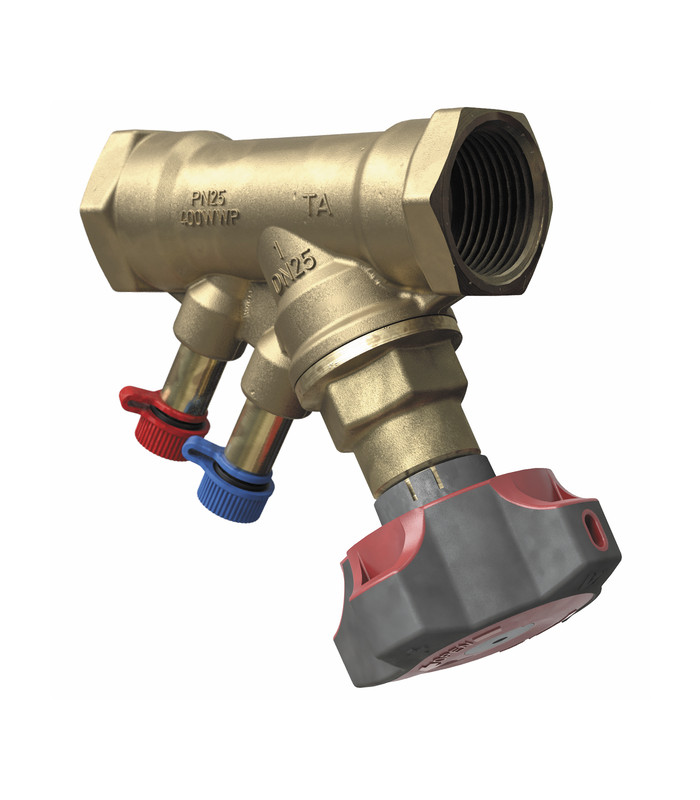

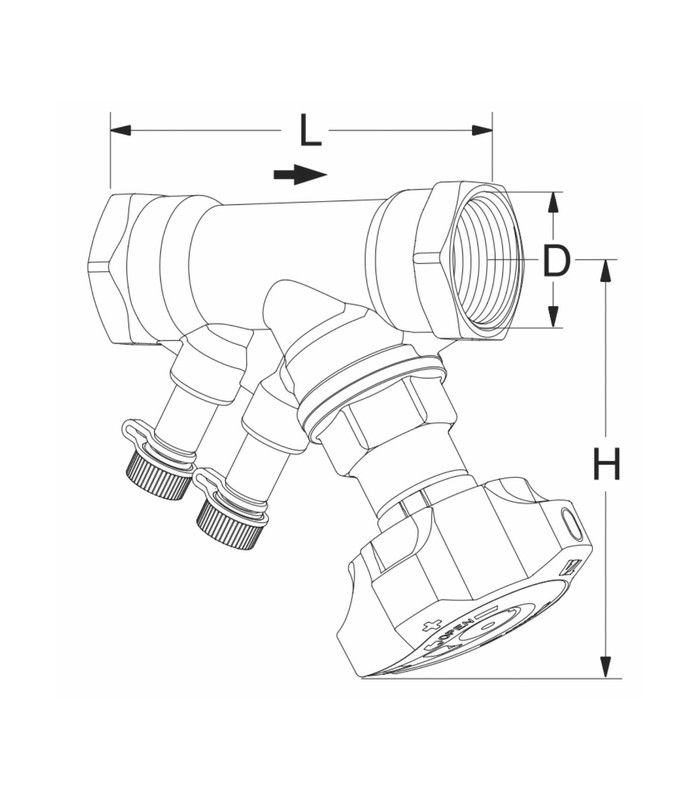

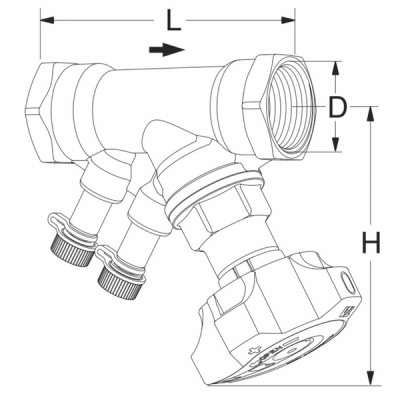

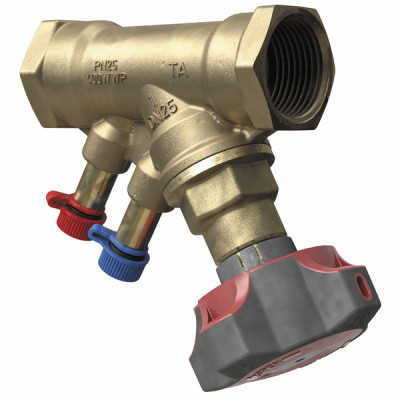

Tapped balancing valve STAD F1/2? - IMI : 52851115
Valve for heating and cooling installations The model most frequently installed on HVAC installations Simple and direct reading of the position on the handle Positive close function to simplify maintenance Self-sealing pressure taps Body made of AMETAL, unequalled lifetime Functions: balancing, presetting, measurement (flow, temperature, available TDH), close, drain Female thread to ISO standard 228 Tapping to ISO standard 7/1 No drain connector (can be installed with the installation under pressure) Operating temperature: -20°C...120°C
