PRESSURE SWITCH 605 100-80Pa/4.8 - DIFF

USE :
Kit specially designed for checking housing VMC
Cut-off power 1,5A - 250V
Change-over contact
Temperature : -30 to 110°C
Connection with feats 6,2mm

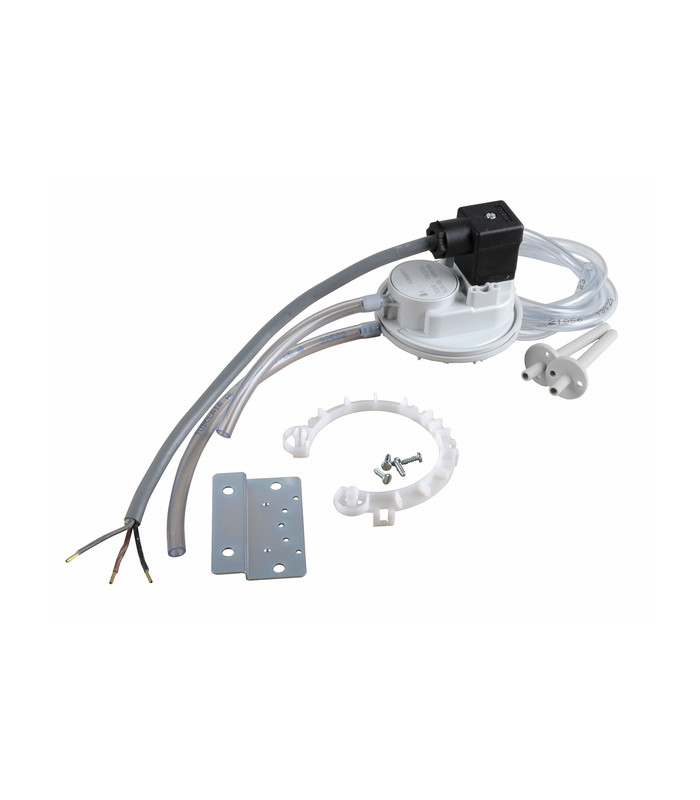

KIT composed with :

1 differential pressure switch HUBA 605 for fixed adjusting to 80Pa (0,8 mbar) with a PVC hose of 12cm and a PVC hose of 20cm
1 fixing plate.

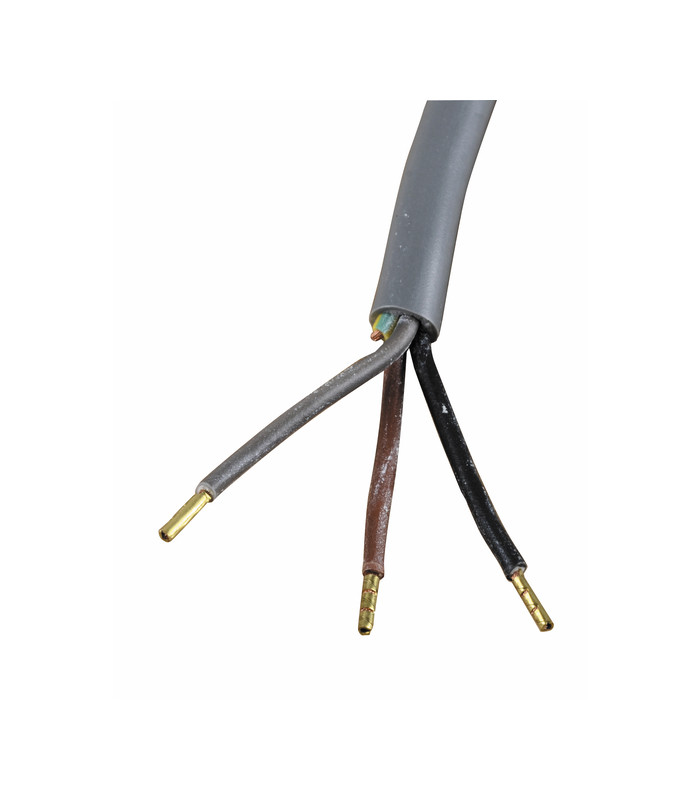

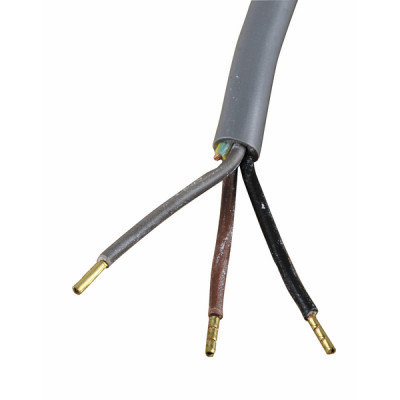

1 connector with cable 3 leads of 310mmm
2 meters of PVC hose.
1 piercing gauge.
2 connection flanges 6,2mm
Fixing screw.
Protection IP42

Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.
