Pump TPD 50-120/2-A-F-A-BQQE- GRUNDFOS - 98957982

Name: Pump TPD 50-120/2-A-F-A-BQQE- GRUNDFOS - 98957982
Brand: GRUNDFOS
SKU: 98957982/GR
Price: 1788.99 EUR
Availability: OutOfStock

Brand:

€1,788.99 (tax excl.)

Reference:

98957982/GR

Download PDF

Add to wishlist

Description
Caracteristique

Description

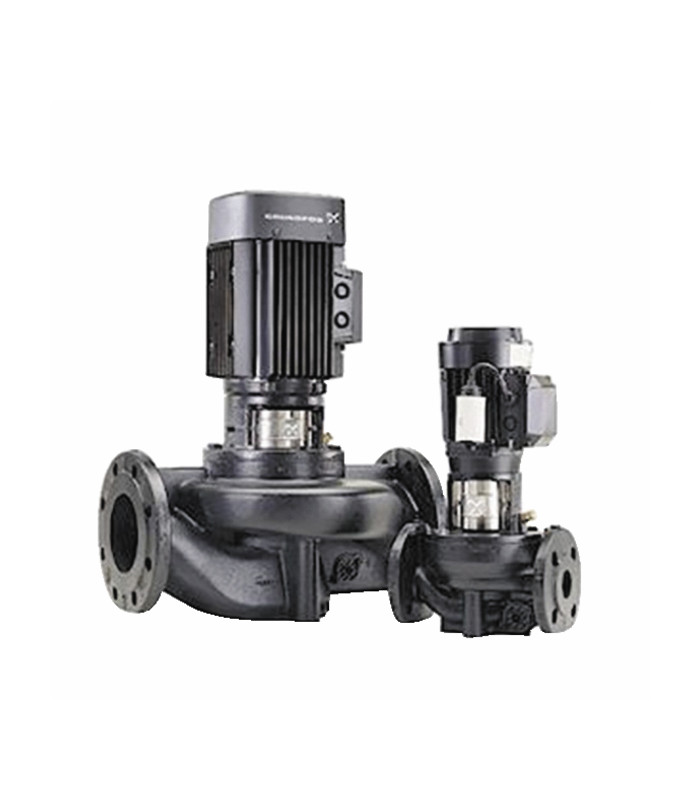

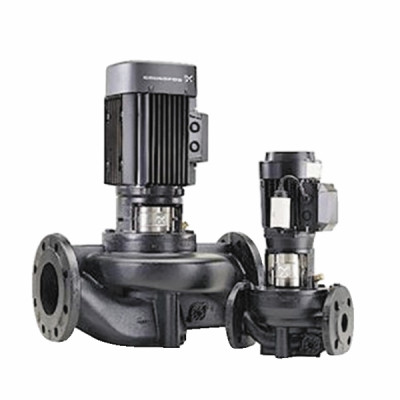

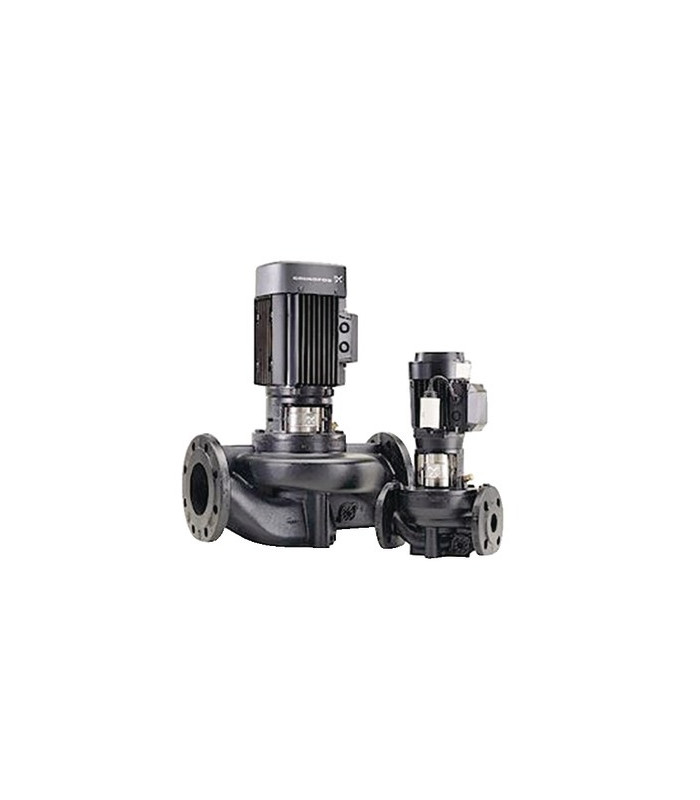

Single-cell, single-piece, double pump with double volute head with in-line suction and output ports with the same diameter. The double pump is designed with two heads operating in parallel. The pump is a front slide design. This makes it easy to extract the pump head (motor, head and wheel) for maintenance or repair, while the pump body remains on the piping. Each pump head is equipped with an unbalanced elastomer bellows seal. The mechanical packing complies with standard EN 12756. The connection to the pipework is made by flanges DIN PN 6/10 (EN 1092-2 and ISO 7005-2). Each pump head is equipped with an asynchronous ventilated motor with identical size. Liquid temperature range: -25?120°C Ambient temperature range: -30? 40°C

Caractéristiques

Garantie	2
Insulation	F
Protection	IP55
Speed (rpm)	1420
DN	50
Center-to-Center Distance (mm)	280
Power Supply / Voltage	230/400V
PN (bar)	10
Package Height (m)	0.57
Package Width (m)	0.38
Package Length (m)	0.57
Package Weight (kg)	67

Product Details

Reference 98957982/GR

Data sheet

FAB_COM_EQ: ORIGINE FABRICANT

Garantie: 2

Insulation: F

Protection: IP55

Speed (rpm): 1420

DN: 50

Center-to-Center Distance (mm): 280

Power Supply / Voltage: 230/400V

PN (bar): 10

Package Height (m): 0.57

Package Width (m): 0.38

Package Length (m): 0.57

Package Weight (kg): 67
