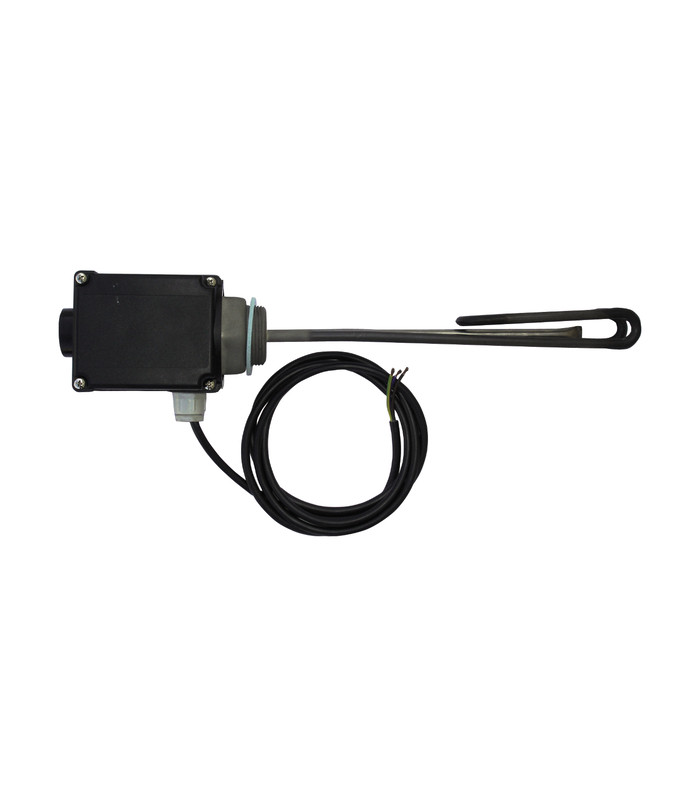

Solar immersion heater tpsu0025 - DIFF

Screw heater to serve as auxiliary power in a solar water heater and containing a unipolar Combistats (BBS) or tripolar (BTS) The heater is screwed directly on the solar hot water tank and connected to the network. Heating element hairpin can directly heat the fluid by natural convection or forced, the thermostat is ensuring the temperature of water in case of insufficient solar energy. The safety thermostat with manual reset helps power cut of heating element to prevent overheating. Cap stainless G1" 1 / 2 in AISI-304 Immersion heating for TPSU : 8.5 mm Incoloy 800, O asbestosis gasket for TPST : Ø 6.25 mm Incoloy 800, O asbestosis gasket Standard : EN 60335 Power 2500W 230V single phase IP44 BBS with button outside 30°Cto70°C Preset safety to 90°C
