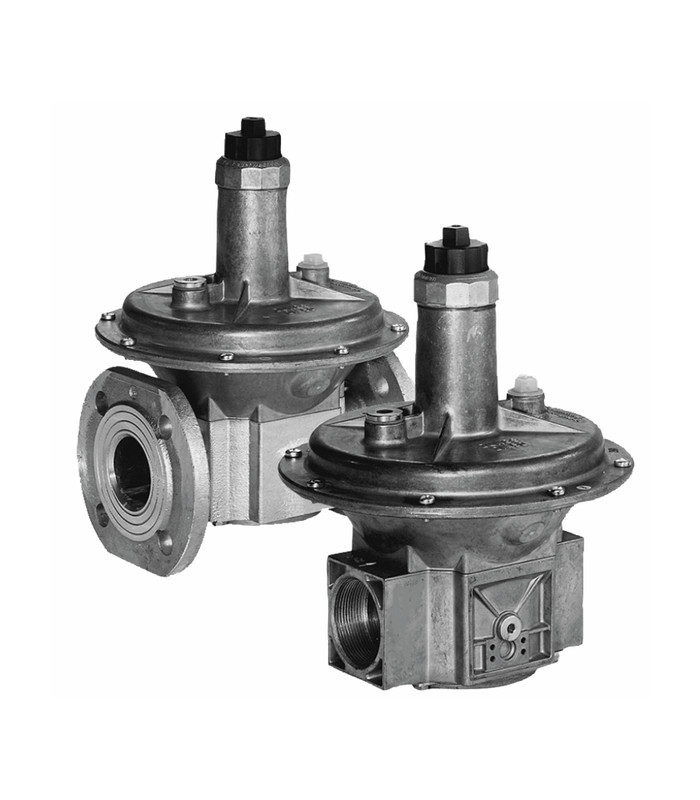

Gas pressure regulator dungs frs520/1 ff2" - DUNGS : 058628

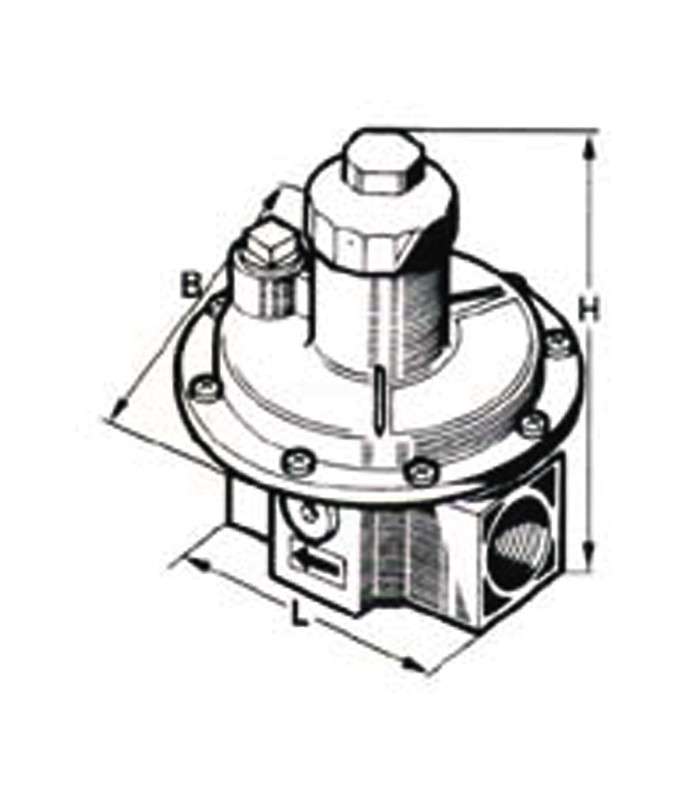

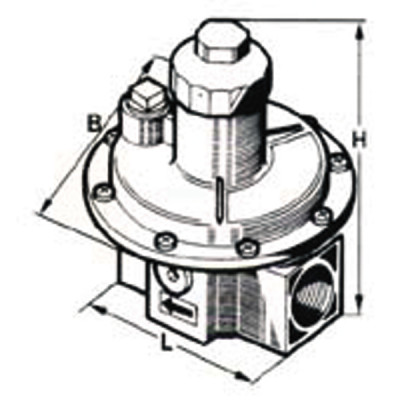

FEATURES : Closing at 0 Inlet pressure : 2,5 mbar to 0,5 bar Range 5 to 150 mbars acording to the spring. Temperature : -20 to +70°C Installation in horizontal position. Regulator supplied with blue spring 10 to 30 mbars. For differents pressure change the spring acording to the use. The indicated height corresponds to the spring mounting reserve. The pressure range depends on the installed adjustable setpoint spring. NOTE : Adjust the regulator when burner is off.
Brand:
€326.61
(tax excl.)
Reference:
Download PDF
105605
Add to wishlist
FEATURES :Closing at 0Inlet pressure : 2,5 mbar to 0,5 barRange 5 to 150 mbars acording to the spring.Temperature : -20 to +70°CInstallation in horizontal position.Regulator supplied with blue spring 10 to 30 mbars.For differents pressure change the spring acording to the use.The indicated height corresponds to the spring mounting reserve.The pressure range depends on the installed adjustable setpoint spring.NOTE : Adjust the regulator when burner is off.
