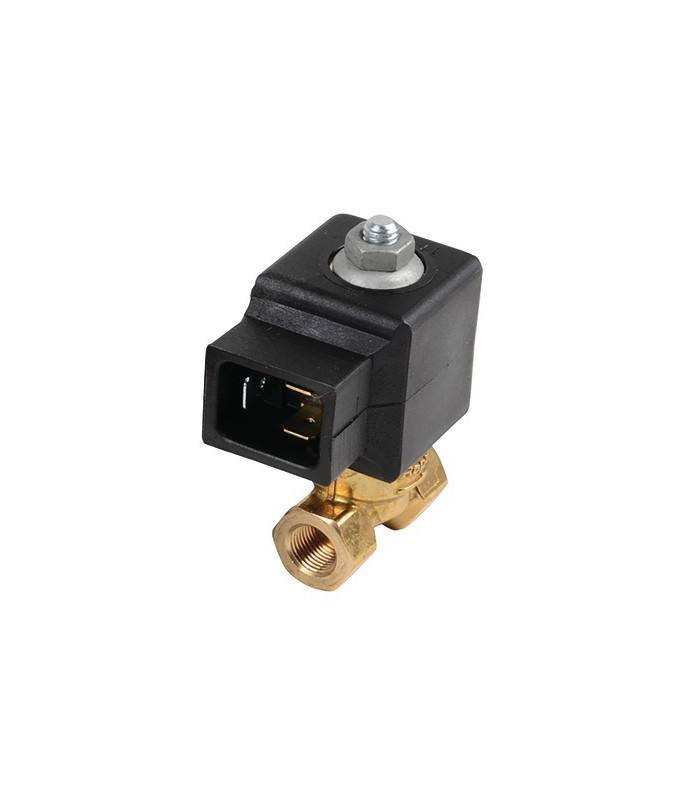

Solenoid valve type rapa bv01 ff1/8" 220v- SUNTEC - SL1V2807
For FUEL AND OIL preventilating STANDARD WITH ZERO DIFFERENTIAL PRESSURE (Normally closed) Replaces VE131X SCEM. Supplied in 220V AC with connector. Supplied without connector Usable on fuel burners with a pressure drop of 2 bars, max power 1.000.000K/cal. Suit OERTLI - SGB - CUENOD - ELCO DIEMO -MAZECO - GEMINOX - MAT KLOCKNER ZAEGEL HELD.
Brand:
€25.84
(tax excl.)
Reference:
Download PDF
109000
Add to wishlist
For FUEL AND OILpreventilating STANDARDWITH ZERO DIFFERENTIAL PRESSURE(Normally closed)Replaces VE131X SCEM. Supplied in 220V AC without connector. Supplied without connectorUsable on fuel burners with a pressure drop of 2 bars, max power 1.000.000K/cal.Suit OERTLI - SGB - CUENOD - ELCO DIEMO -MAZECO - GEMINOX - MAT KLOCKNER ZAEGEL HELD.
Read more
| Length (mm) | 32 | |
| Range °C | 0/60 | |
| Ø | F1/8''xF1/8'' | |
| Dimensions (mm) | 32x65 | |
| Power Supply / Voltage | 230V | |
| Kv (m³/h) | 1.4 | |
| Pressure (bar) | 0,024 | |
| Type | BV01 | |
| Connection | FxF1/8" | |
| Package Height (m) | 0.04 | |
| Package Width (m) | 0.05 | |
| Package Length (m) | 0.07 | |
| Package Weight (kg) | 0.189 |
109000
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- Length (mm)
- 32
- Range °C
- 0/60
- Ø
- F1/8''xF1/8''
- Dimensions (mm)
- 32x65
- Power Supply / Voltage
- 230V
- Kv (m³/h)
- 1.4
- Pressure (bar)
- 0,024
- Type
- BV01
- Connection
- FxF1/8"
- Package Height (m)
- 0.04
- Package Width (m)
- 0.05
- Package Length (m)
- 0.07
- Package Weight (kg)
- 0.189
