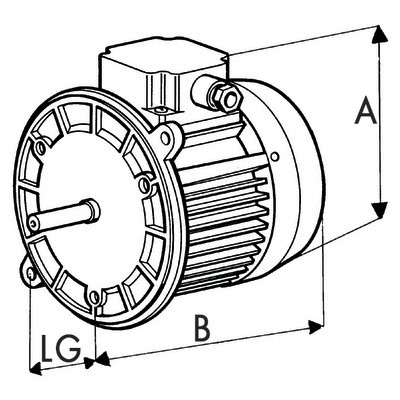

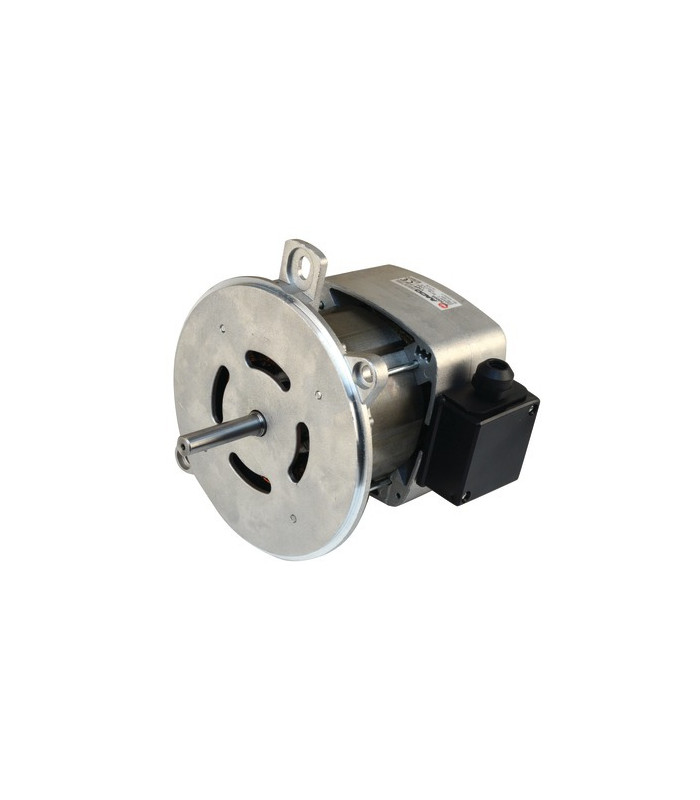

Burner motor type 135 2 370 tv- DIFF - 702382

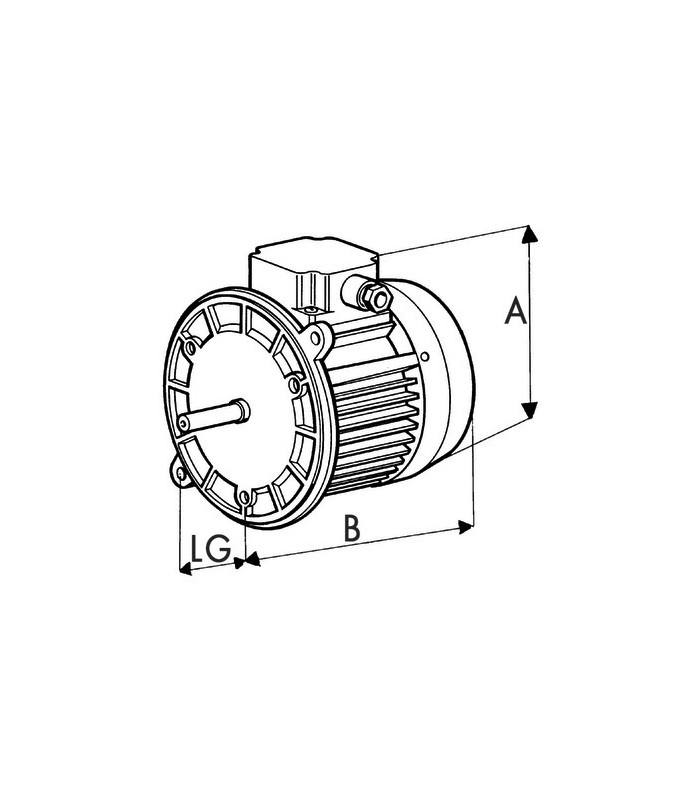

Nema 2 flange. Three phased motors totally closed up to 1/4 HP (185 watt). Self ventilated motors for superior powers. Noiseless plain bearings. Two rotation directions on the terminal board. Face the shaft to observe the rotation direction. Flange models NEMA 2 : recess on flanging 162mm Ø, fixing bracket 184mm, shaft 12.7mm Ø x 57mm up to 3/4HP. Motor 220 V / 380V
Brand:
€151.63
(tax excl.)
Reference:
Download PDF
702382
Add to wishlist
Nema 2 flange. Three phased motors totally closed up to 1/4 HP (185 watt). Self ventilated motors for superior powers.Noiseless plain bearings. Two rotation directions on the terminal board. Face the shaft to observe the rotation direction. Flange models NEMA 2 : recess on flanging 162mm Ø, fixing bracket 184mm, shaft 12.7mm Ø x 57mm up to 3/4HP. Motor 220 V / 380V
