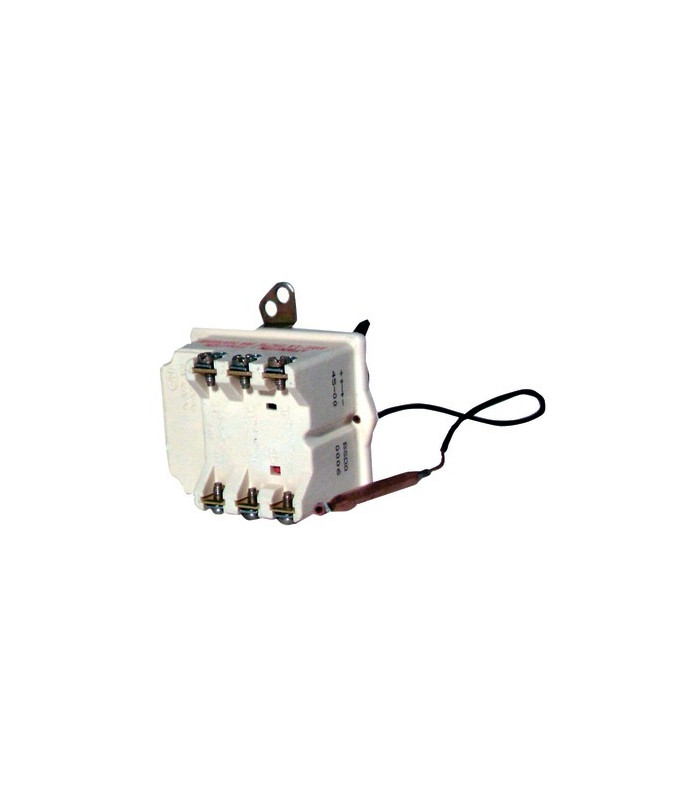

Water heater thermostat bsd 370 1 bulb 3phase- COTHERM - BSD0000607
Supplied with a kit of several accessories for easy use One bulb only takes the temperature. A plate device controls the safety. Diam 6mm x Length 370mm Regulation contact 3phase Safety 2 phase Adjustment 0/65°C Safety 75°C 20A/220V 15A/380V
Brand:
€29.40
(tax excl.)
Reference:
Download PDF
703550
Add to wishlist
| Length (mm) | 370.00 | |
| Shut-off capacity | 20A/230V-15A/400V | |
| Range °C | 54/65 | |
| Ø | 6 | |
| Differential | ± 4 à 15 | |
| Safety contact | bipolaire | |
| Control contact | tripolaire | |
| Number | 1 | |
| Norme | NF | |
| Type | BSD 370 tri | |
| Safety (°C) | 75 | |
| Package Height (m) | 0.075 | |
| Package Width (m) | 0.095 | |
| Package Length (m) | 0.58 | |
| Package Weight (kg) | 0.371 |
703550
Data sheet
- FAB_COM_EQ
- DIFF PERIPHERIQUE
- Length (mm)
- 370.00
- Shut-off capacity
- 20A/230V-15A/400V
- Range °C
- 54/65
- Ø
- 6
- Differential
- ± 4 à 15
- Safety contact
- bipolaire
- Control contact
- tripolaire
- Number
- 1
- Norme
- NF
- Type
- BSD 370 tri
- Safety (°C)
- 75
- Package Height (m)
- 0.075
- Package Width (m)
- 0.095
- Package Length (m)
- 0.58
- Package Weight (kg)
- 0.371
