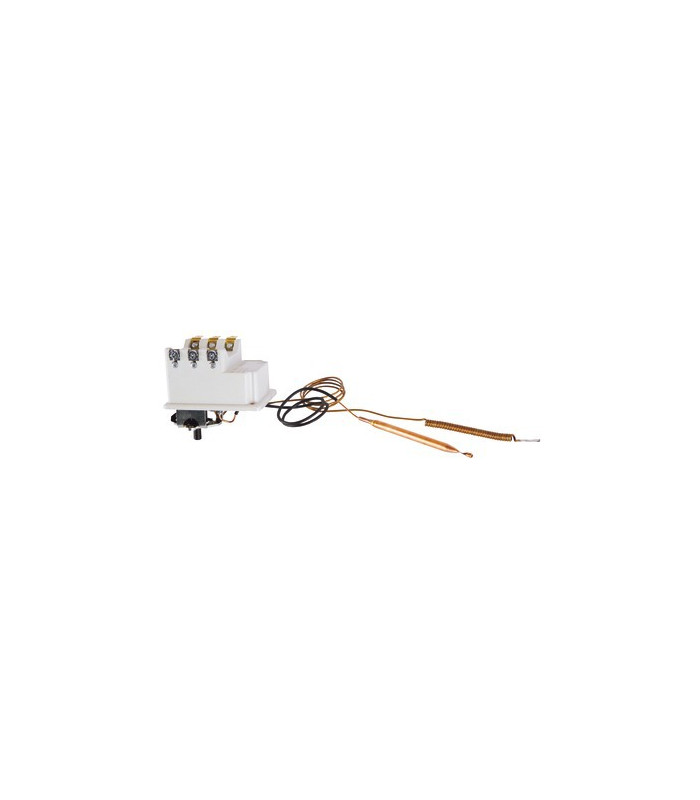

Water boiler thermostat - bspd model with 2 bulbs - COTHERM : KBSDP00907

Thermostat BSPD STANDARD This water boiler thermostat is delivered with a set of accessories to permit it to be adapted to the main variation of this same device.The vertical or perpendicular orientation of the bulbs, the use in various positions of the 2 fixing support devices and the electric screw-on or AMP crimped connection will be possible.On this device the temperature is measured by 2 bulbs, one used for the bipolar regulation between 20 and 80°C with a 4-15°C differential, French norm NF compliant and the other used for positive safety, boiling at 90°C.

Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.
