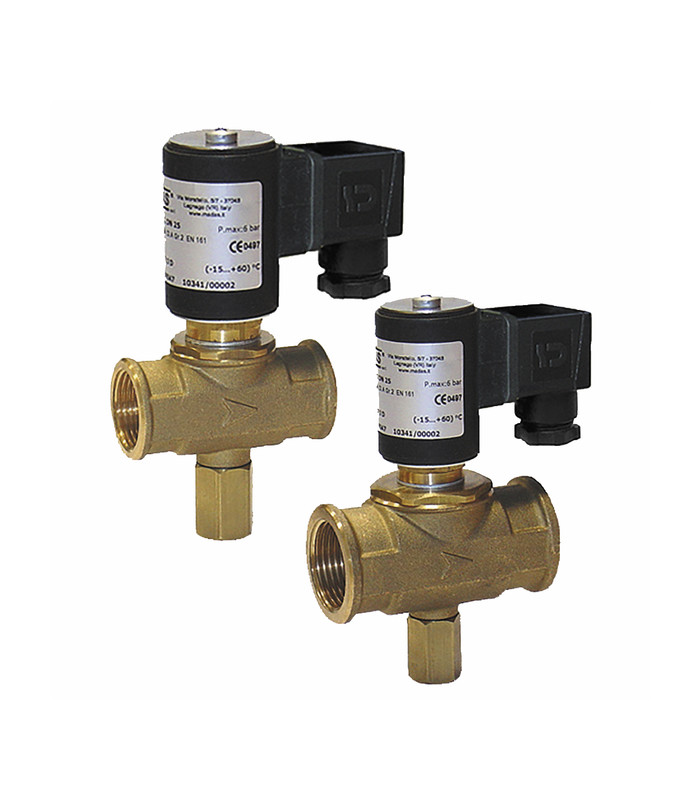

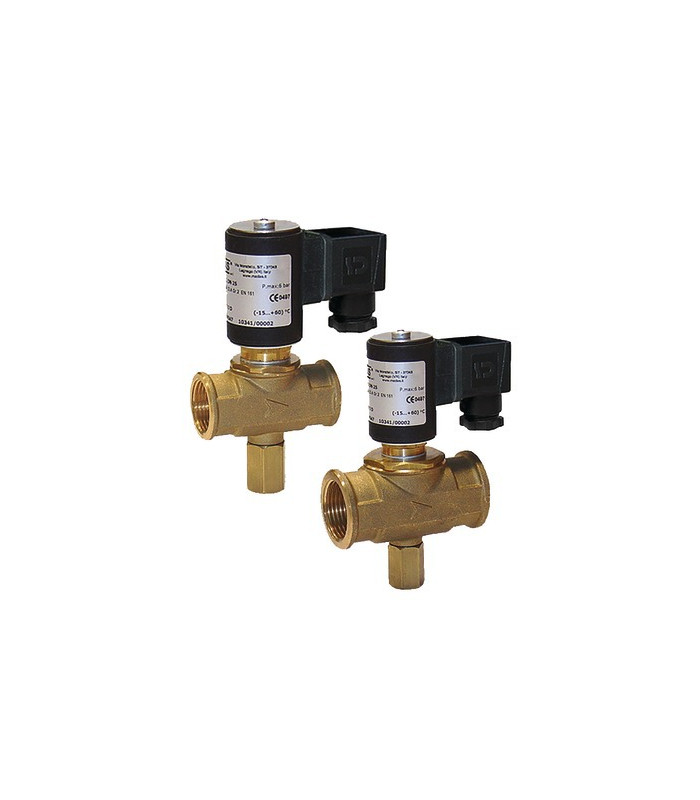

Solenoid valve type madas co 03 ff3/4"- MADAS - CO03C 008
For GAS COMBUSTIBLE MANUAL RESET
WITH ZERO PRESSURE DIFFERENTIAL (Normally Closed). To prevent interventions provoked by brief cuts of current, the solenoid valve is equipped of a particular device that permits intervening only when interruptions are superior to 0.3 seconds.
Needs a manual intervention twice to open the valve. Instantaneous closing because of lack of current.
Brand:
€44.99
(tax excl.)
Reference:
Download PDF
105401
Add to wishlist
| Thickness (mm) | 37 | |
| H (mm) | 132 | |
| Length (mm) | 66 | |
| Logo Marque | MADAS | |
| Max. pressure (bar) | 0,5 | |
| Ø | F3/4" | |
| DN | 20 | |
| Center-to-Center Distance (mm) | 66 | |
| Power Supply / Voltage | 230Vac | |
| Type | CO 03 corps en laiton | |
| Package Height (m) | 0.045 | |
| Package Width (m) | 0.115 | |
| Package Length (m) | 0.16 | |
| Package Weight (kg) | 0.652 |
105401
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- Thickness (mm)
- 37
- H (mm)
- 132
- Length (mm)
- 66
- Logo Marque
- MADAS
- Max. pressure (bar)
- 0,5
- Ø
- F3/4"
- DN
- 20
- Center-to-Center Distance (mm)
- 66
- Power Supply / Voltage
- 230Vac
- Type
- CO 03 corps en laiton
- Package Height (m)
- 0.045
- Package Width (m)
- 0.115
- Package Length (m)
- 0.16
- Package Weight (kg)
- 0.652
