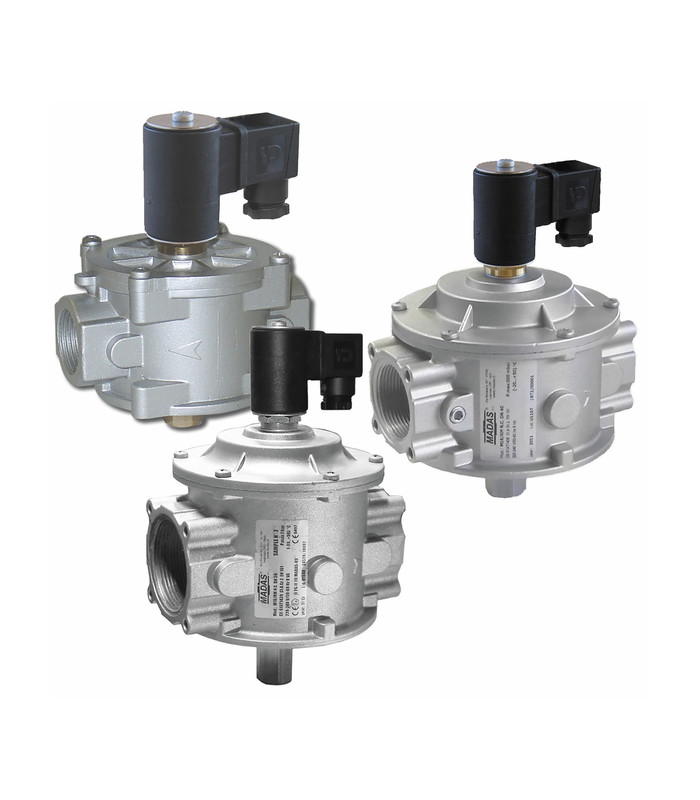

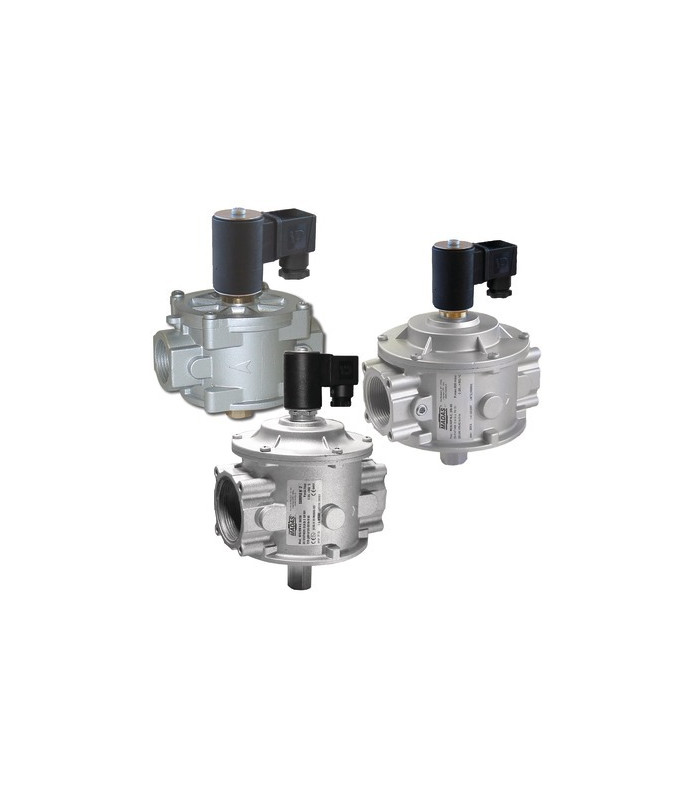

Solenoid valve type madas cm 04 ff1"- MADAS - CM04C 008
For GAS COMBUSTIBLE MANUAL RESET
WITH ZERO PRESSURE DIFFERENTIAL (Normally Closed). To prevent interventions provoked by brief cuts of current, the solenoid valve is equipped of a particular device that permits intervening only when interruptions are superior to 0.3 seconds.
Needs a manual intervention twice to open the valve. Instantaneous closing because of lack of current.
Brand:
€47.33
(tax excl.)
Reference:
Download PDF
105403
Add to wishlist
| Thickness (mm) | 94 | |
| H (mm) | 222 | |
| Length (mm) | 120 | |
| Logo Marque | MADAS | |
| Max. pressure (bar) | 0,5 | |
| Ø | F1" | |
| DN | 25 | |
| Center-to-Center Distance (mm) | 120 | |
| Power Supply / Voltage | 230Vac | |
| Type | CM 04 | |
| Package Height (m) | 0.11 | |
| Package Width (m) | 0.14 | |
| Package Length (m) | 0.17 | |
| Package Weight (kg) | 1.043 |
105403
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- Thickness (mm)
- 94
- H (mm)
- 222
- Length (mm)
- 120
- Logo Marque
- MADAS
- Max. pressure (bar)
- 0,5
- Ø
- F1"
- DN
- 25
- Center-to-Center Distance (mm)
- 120
- Power Supply / Voltage
- 230Vac
- Type
- CM 04
- Package Height (m)
- 0.11
- Package Width (m)
- 0.14
- Package Length (m)
- 0.17
- Package Weight (kg)
- 1.043
