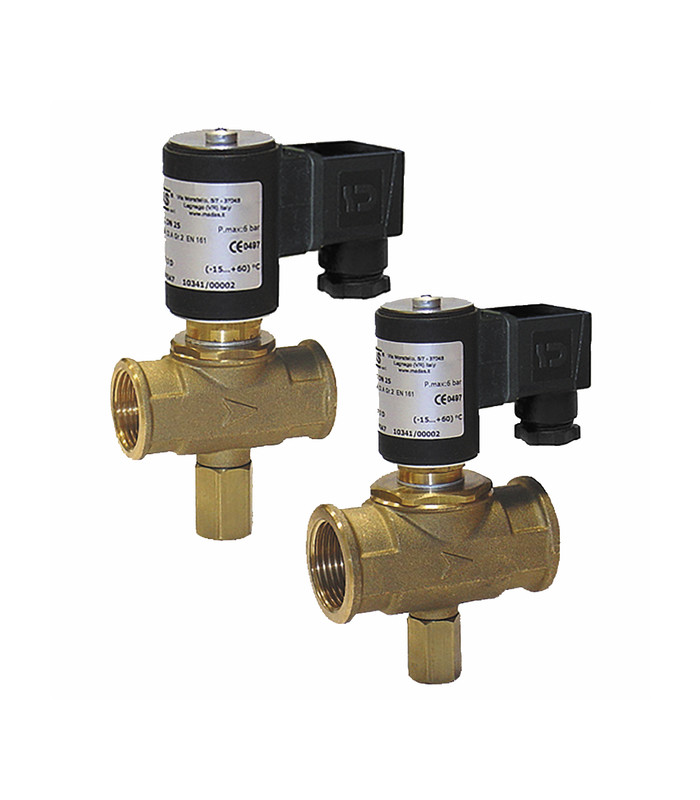

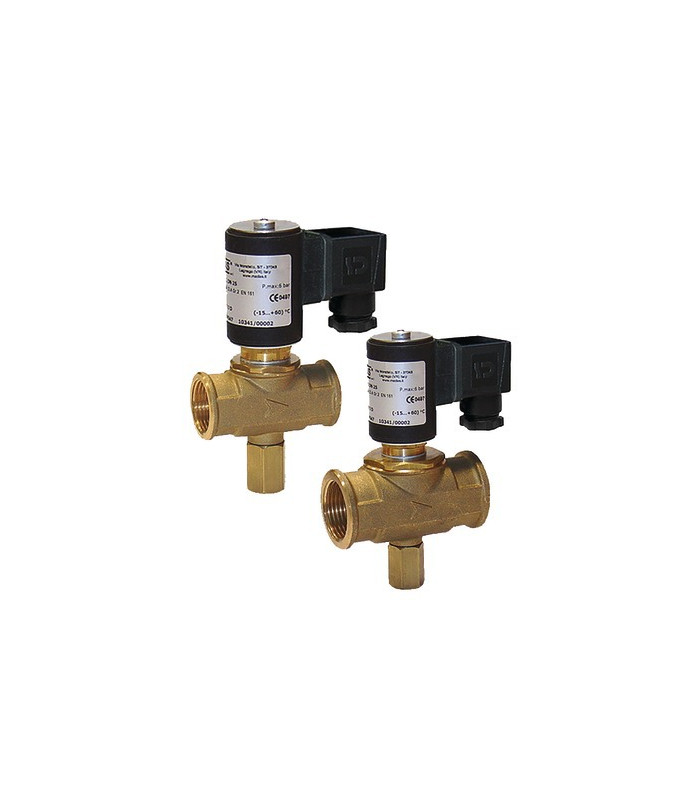

Solenoid valve type madas co 03a ff3/4"- MADAS - CO03C0000 008
For GAS COMBUSTIBLE MANUAL RESET CONTROL OF PRINCIPAL FLOW. To prevent interventions provoked by brief cuts of current, the solenoid valve is equipped of a particular device that permits intervening only when interruptions are superior to 0.3 seconds. Needs a manual intervention twice to open the valve. Instantaneous closing because of lack of current.
Brand:
€45.59
(tax excl.)
Reference:
Download PDF
105422
Add to wishlist
| Thickness (mm) | 37.00 | |
| H (mm) | 132.0 | |
| Length (mm) | 66.00 | |
| Logo Marque | MADAS | |
| Max. pressure (bar) | 6 | |
| Ø | F3/4" | |
| DN | 20.0 | |
| Center-to-Center Distance (mm) | 66 | |
| Power Supply / Voltage | 230Vac | |
| Type | CO 03A corps en laiton | |
| Package Height (m) | 0.05 | |
| Package Width (m) | 0.12 | |
| Package Length (m) | 0.16 | |
| Package Weight (kg) | 0.641 |
105422
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- Thickness (mm)
- 37.00
- H (mm)
- 132.0
- Length (mm)
- 66.00
- Logo Marque
- MADAS
- Max. pressure (bar)
- 6
- Ø
- F3/4"
- DN
- 20.0
- Center-to-Center Distance (mm)
- 66
- Power Supply / Voltage
- 230Vac
- Type
- CO 03A corps en laiton
- Package Height (m)
- 0.05
- Package Width (m)
- 0.12
- Package Length (m)
- 0.16
- Package Weight (kg)
- 0.641
