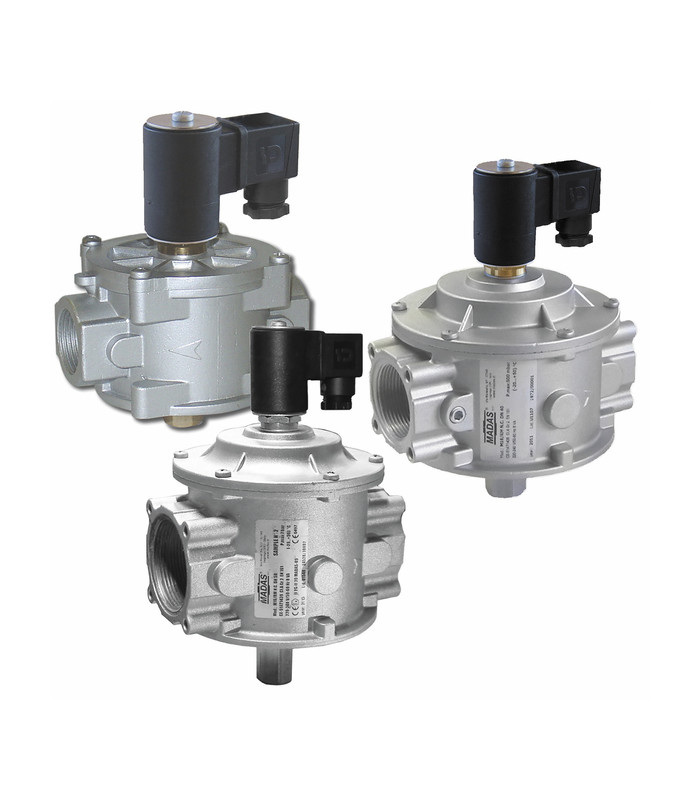

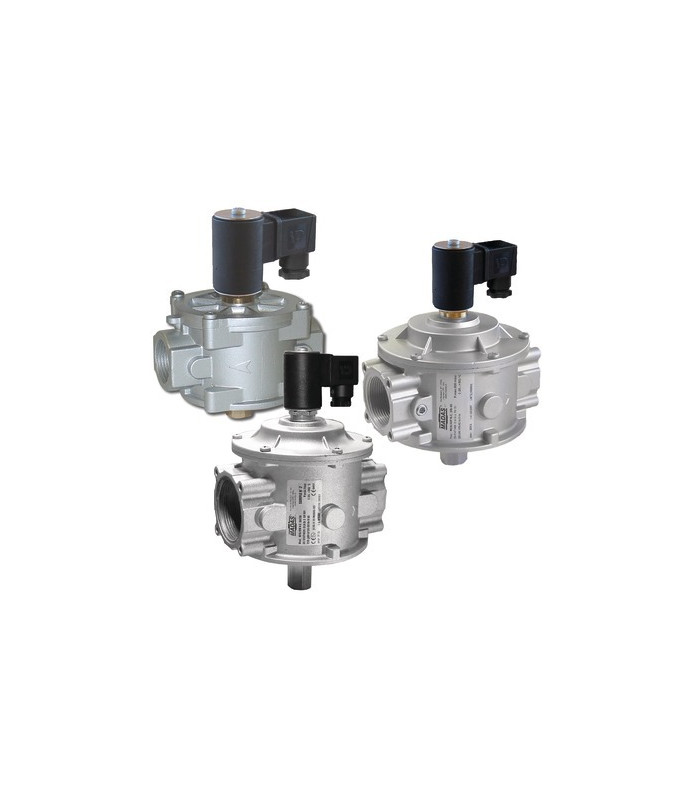

Solenoid valve type madas cm 04a ff1"- MADAS - CM04C0000 008
For GAS COMBUSTIBLE MANUAL RESET CONTROL OF PRINCIPAL FLOW. To prevent interventions provoked by brief cuts of current, the solenoid valve is equipped of a particular device that permits intervening only when interruptions are superior to 0.3 seconds. Needs a manual intervention twice to open the valve. Instantaneous closing because of lack of current.
Brand:
€67.97
(tax excl.)
Reference:
Download PDF
105423
Add to wishlist
For GAS COMBUSTIBLE MANUAL RESETCONTROL OF PRINCIPAL FLOWTo prevent interventions provoked by brief cuts of current, the solenoid valve is equipped of a particular device that permits intervening only when interruptions are superior to 0.3 seconds.Needs a manual intervention twice to open the valve. Instantaneous closing because of lack of current.CHARACTERISTICS :Voltage : 220V 50/60 Hz Protection : IP65Room temperature : -15 to +70°C All gasCoil 6 WNote : The coils of MADAS solenoid valves work in continuous current. To install them on alternate current, it is imperative to use the adjusted connector delivered with the solenoid valve. For solenoid valves of big diameter, it is normal to observe a slight heating of the coil not allowing one to put one's hand on the device. This should be taken into consideration while resetting.
Read more
| Thickness (mm) | 94 | |
| H (mm) | 226 | |
| Length (mm) | 120 | |
| Logo Marque | MADAS | |
| Max. pressure (bar) | 6 | |
| Ø | F1" | |
| DN | 25 | |
| Center-to-Center Distance (mm) | 120 | |
| Power Supply / Voltage | 230Vac | |
| Type | CM 04A | |
| Package Height (m) | 0.16 | |
| Package Width (m) | 0.133 | |
| Package Length (m) | 0.175 | |
| Package Weight (kg) | 1.124 |
105423
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- Thickness (mm)
- 94
- H (mm)
- 226
- Length (mm)
- 120
- Logo Marque
- MADAS
- Max. pressure (bar)
- 6
- Ø
- F1"
- DN
- 25
- Center-to-Center Distance (mm)
- 120
- Power Supply / Voltage
- 230Vac
- Type
- CM 04A
- Package Height (m)
- 0.16
- Package Width (m)
- 0.133
- Package Length (m)
- 0.175
- Package Weight (kg)
- 1.124
