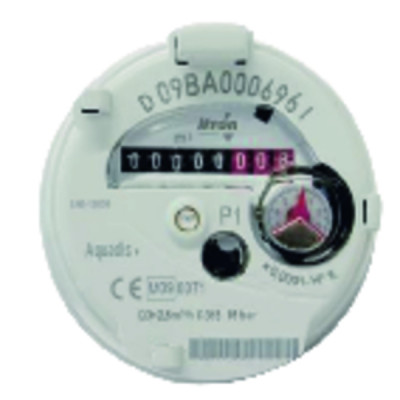

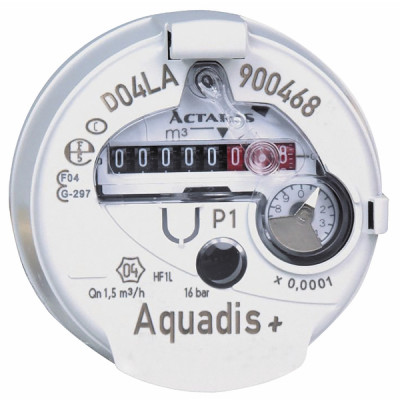

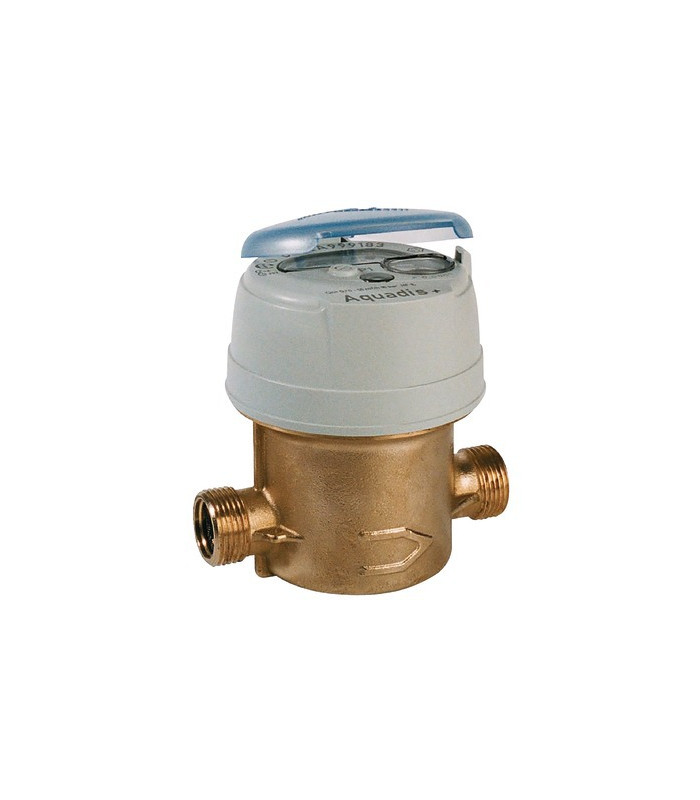

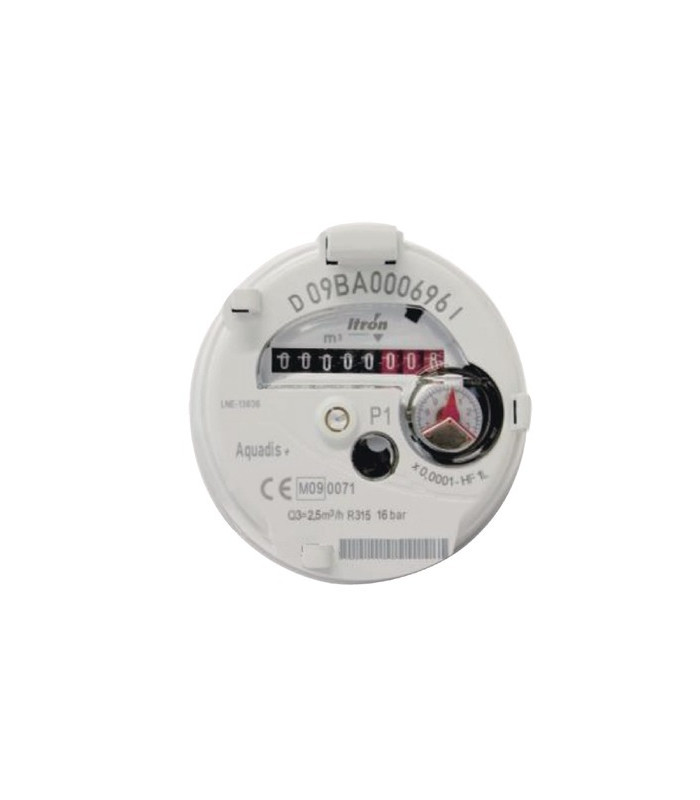

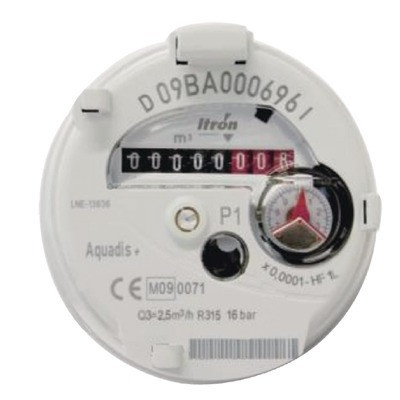

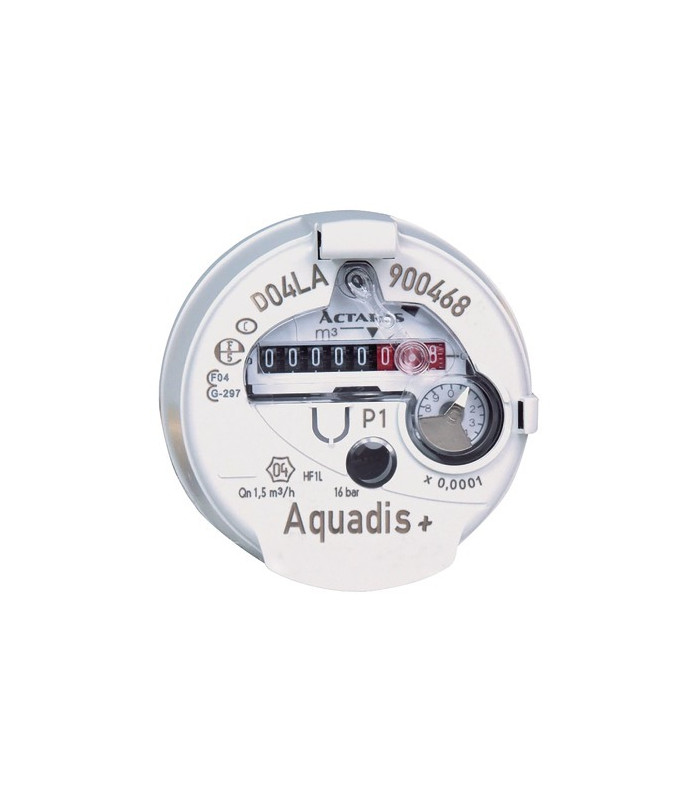

Cold water sub-meter 20/27- ITRON - AQUAP15110EMB
Pre-equipped for communication Water passage interior Ø (size): 15mm Permanent flow 2.5m3/h Overload flow 3.125m3/h Nominal flow: 6.3L/h Max. pressure: 16 bars All-position Max. water temperature 30°C Certificate of Sanitary Conformity
| Logo Marque | ITRON | |
| Ø | M3/4" | |

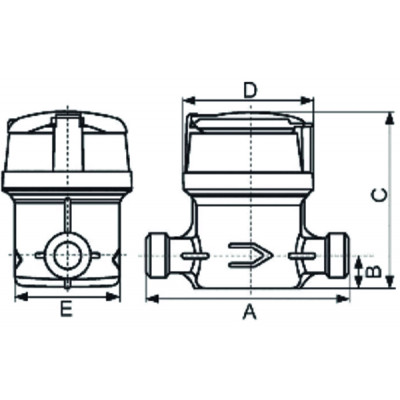

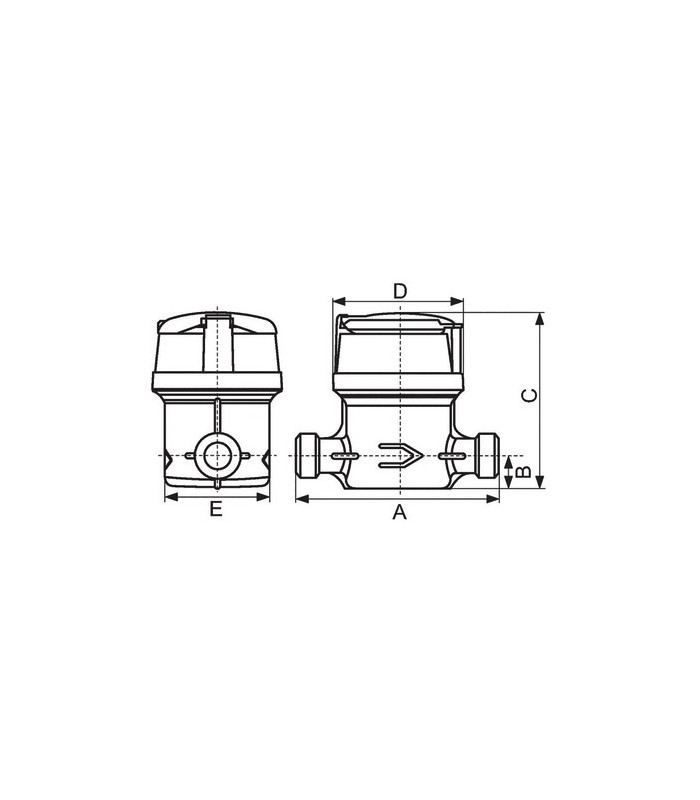

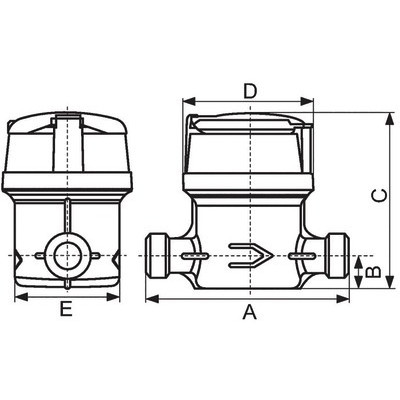

| E (mm) | 68.0 | |
| Certification | ACS | |
| Color | Multicouleur | |
| D (mm) | 85.0 | |
| A (mm) | 110.0 | |
| B (mm) | 22.0 | |
| C (mm) | 115.0 | |
| Number | 1 | |
| Pressure (bar) | 16 | |
| Norme | MID | |
| Package Height (m) | 0.1 | |
| Package Width (m) | 0.1 | |
| Package Length (m) | 0.12 | |
| Package Weight (kg) | 0.787 |
