Spacer sleeve D50 NF29323- SFERACO - 1195050
Cast iron with flanges R.F. GN10/16 up to DN150 GN10 in DN200 for spacing NF 29323 The butterfly valve and sleeve assembly allows for the replacement of steel gate valves without modification of the installation Admissible temperature: -10°C to +150°C Max. admissible pressure PN: 16 bar With drain 1/2? BSP spacing 99mm
Brand:
€28.80
(tax excl.)
Reference:
Download PDF
110181
Add to wishlist

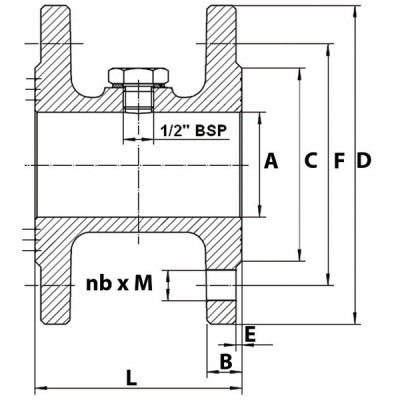

| F (mm) | 125,0 | |
| Length (mm) | 99.00 | |
| M (mm) | 19,0 | |
| DN | 50 | |
| E (mm) | 3,0 | |
| D (mm) | 165,0 | |
| A (mm) | 54.5 | |
| B (mm) | 15,0 | |
| C (mm) | 100,0 | |
| Number | 4 | |
| Package Height (m) | 0.16 | |
| Package Width (m) | 0.16 | |
| Package Length (m) | 0.095 | |
| Package Weight (kg) | 5.502 |
