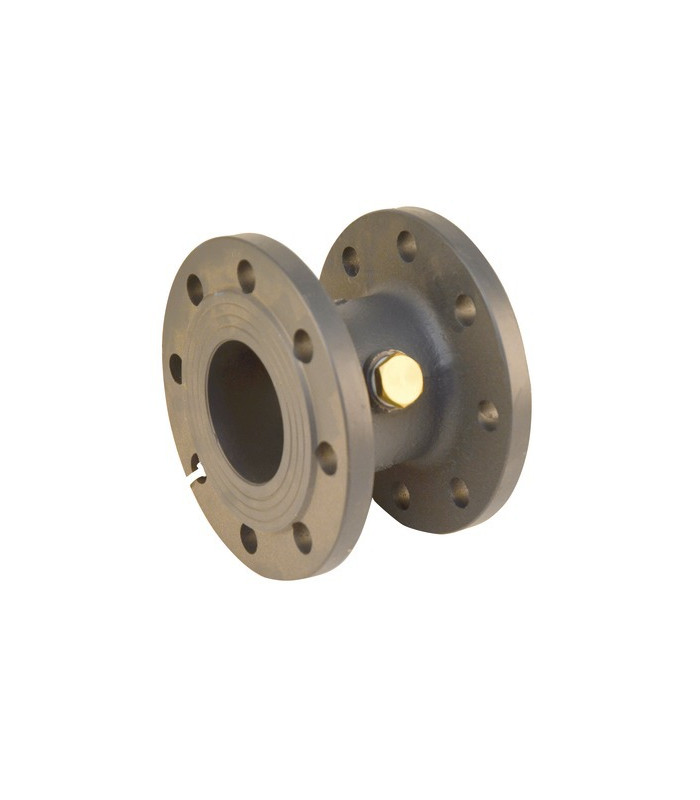

Spacer sleeve D65 NF29323- SFERACO - 1195065
Cast iron with flanges R.F. GN10/16 up to DN150 GN10 in DN200 for spacing NF 29323 The butterfly valve and sleeve assembly allows for the replacement of steel gate valves without modification of the installation Admissible temperature: -10°C to +150°C Max. admissible pressure PN: 16 bar With drain 1/2? BSP spacing 108mm
Brand:
€35.43
(tax excl.)
Reference:
Download PDF
110182
Add to wishlist

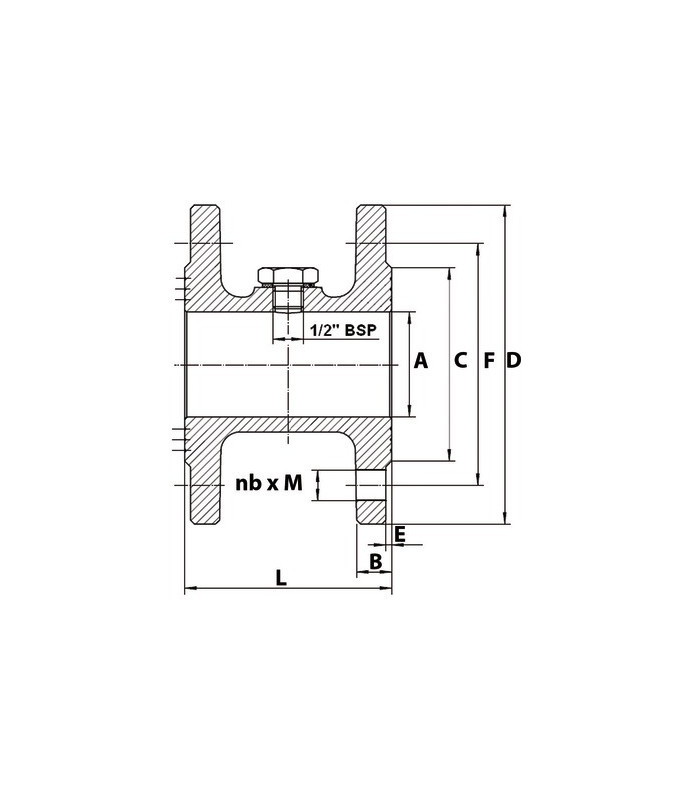

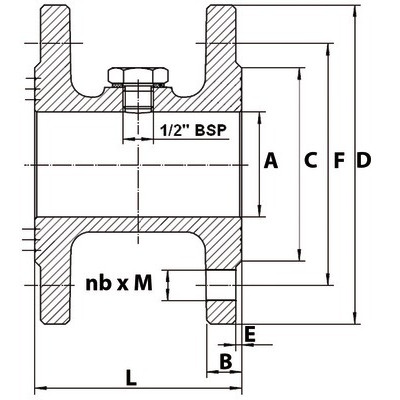

| F (mm) | 145.0 | |
| Length (mm) | 108.00 | |
| M (mm) | 19.0 | |
| DN | 65.0 | |
| E (mm) | 3.0 | |
| D (mm) | 185.0 | |
| A (mm) | 70.3 | |
| B (mm) | 15.0 | |
| C (mm) | 122.0 | |
| Number | 4 | |
| Package Height (m) | 0.18 | |
| Package Width (m) | 0.18 | |
| Package Length (m) | 0.1 | |
| Package Weight (kg) | 3 |
