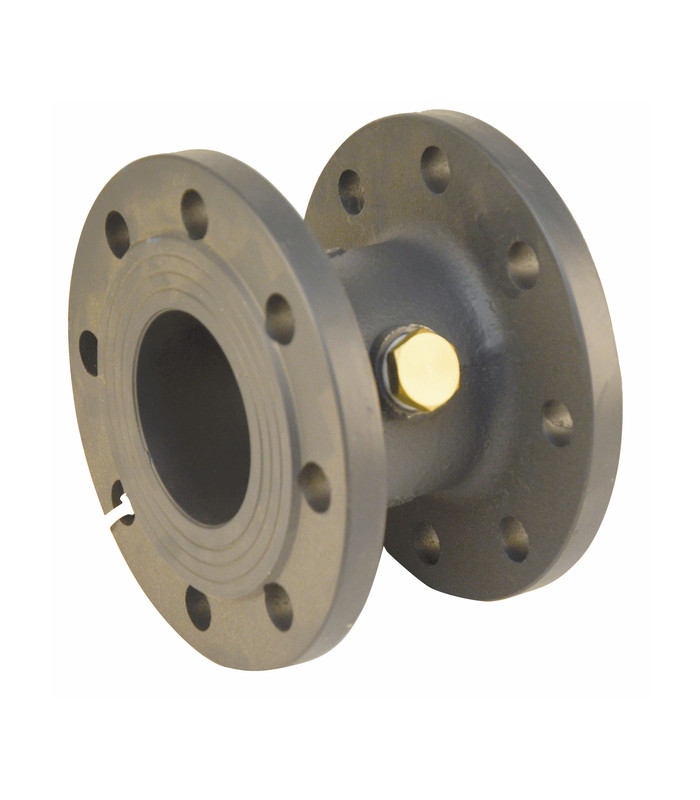

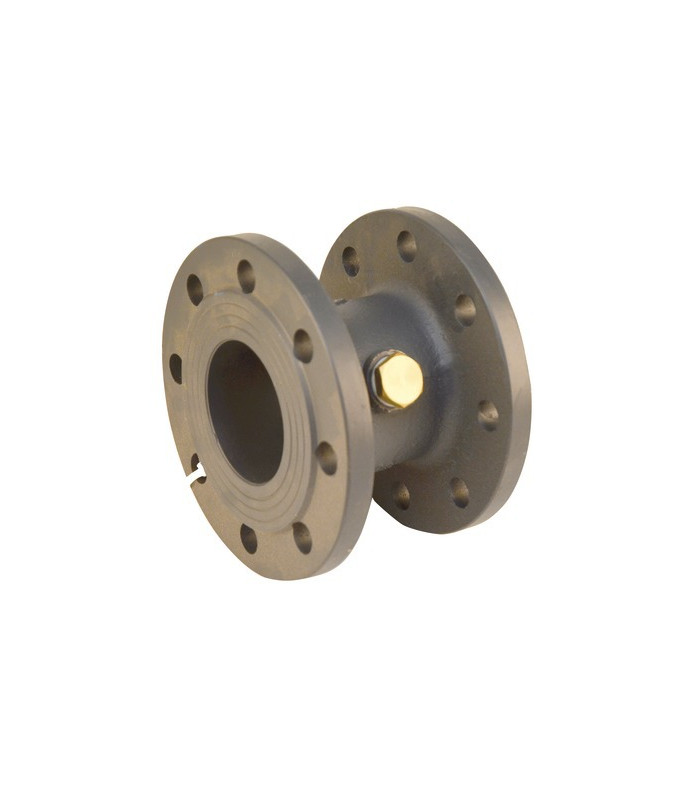

Spacer sleeve D80 NF29323- SFERACO - 1195080
Cast iron with flanges R.F. GN10/16 up to DN150 GN10 in DN200 for spacing NF 29323 The butterfly valve and sleeve assembly allows for the replacement of steel gate valves without modification of the installation Admissible temperature: -10°C to +150°C Max. admissible pressure PN: 16 bar With drain 1/2? BSP spacing 114mm
Brand:
€43.06
(tax excl.)
Reference:
Download PDF
110183
Add to wishlist

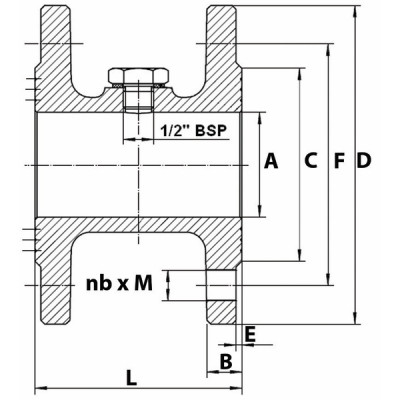

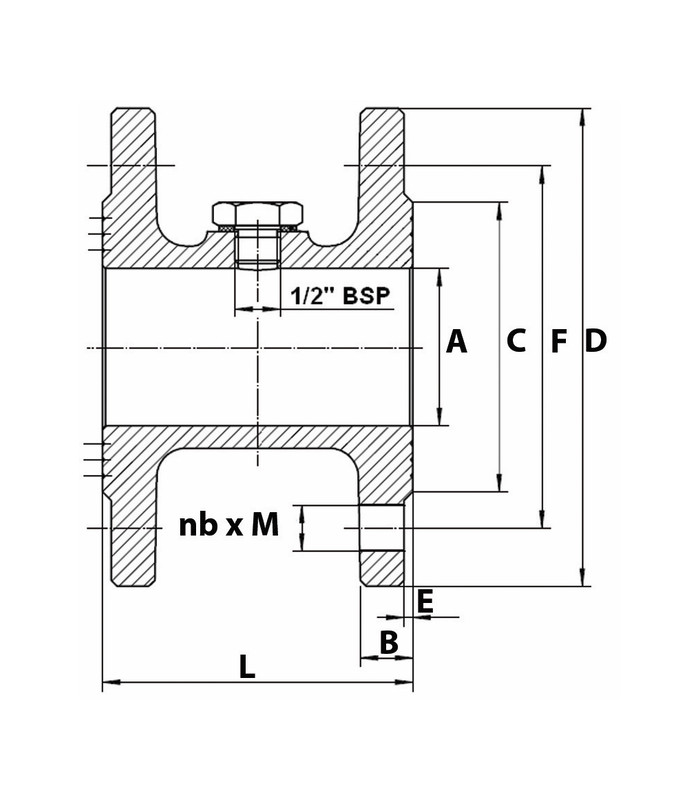

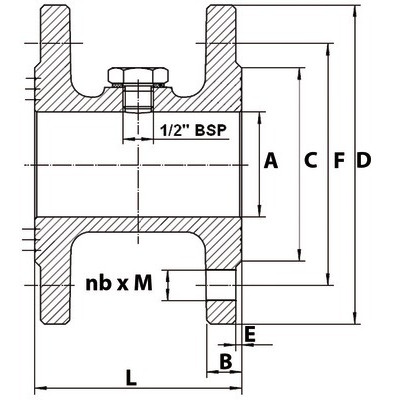

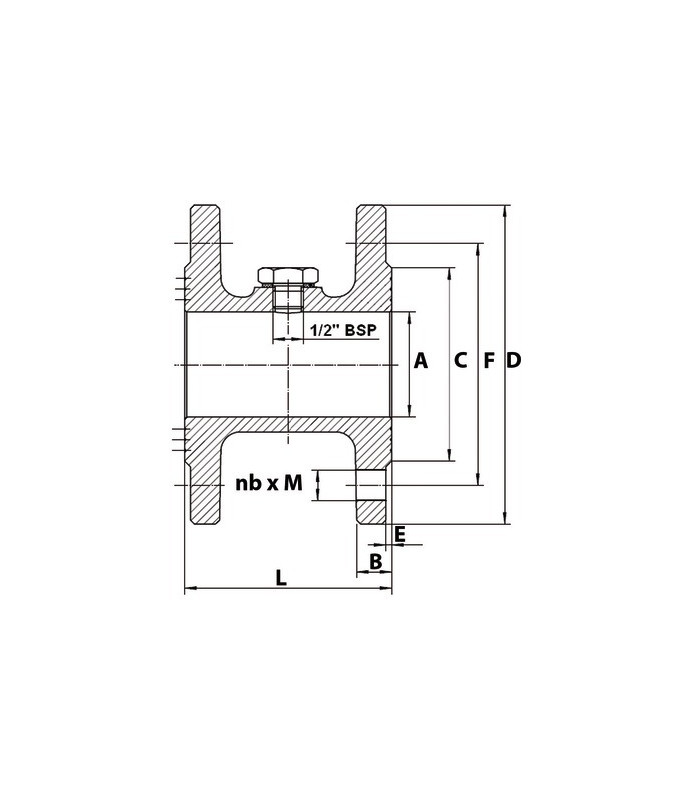

| F (mm) | 160.0 | |
| Longueur (mm) | 114.00 | |
| M (mm) | 19.0 | |
| DN | 80.0 | |
| E (mm) | 3.0 | |
| D (mm) | 200.0 | |
| A (mm) | 82.5 | |
| B (mm) | 17.0 | |
| C (mm) | 138.0 | |
| Nombre | 8 |
