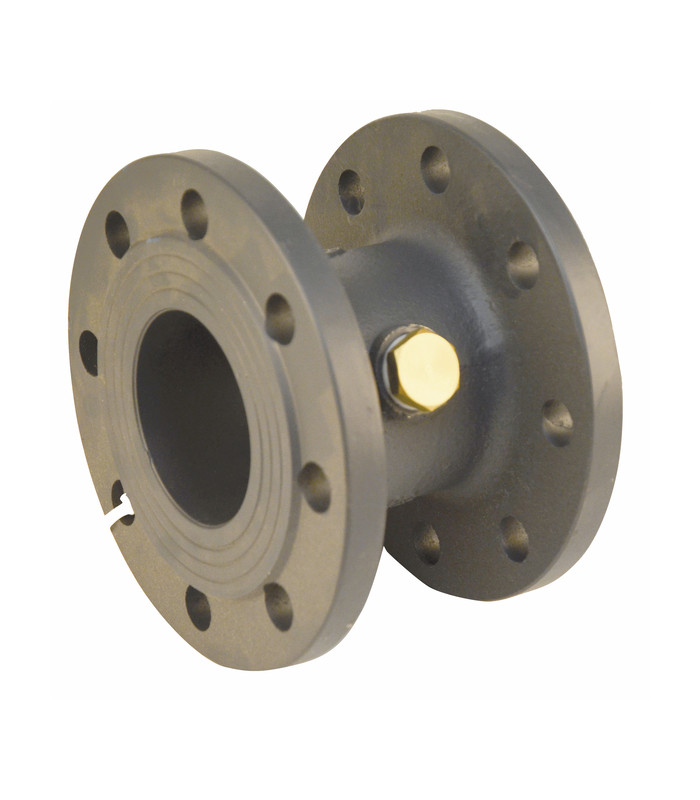

Spacer sleeve D150 NF29323 - SFERACO : 1195150

Name: Spacer sleeve D150 NF29323 - SFERACO : 1195150
Brand: SFERACO
SKU: 110186
Price: 98.74 EUR
Availability: InStock

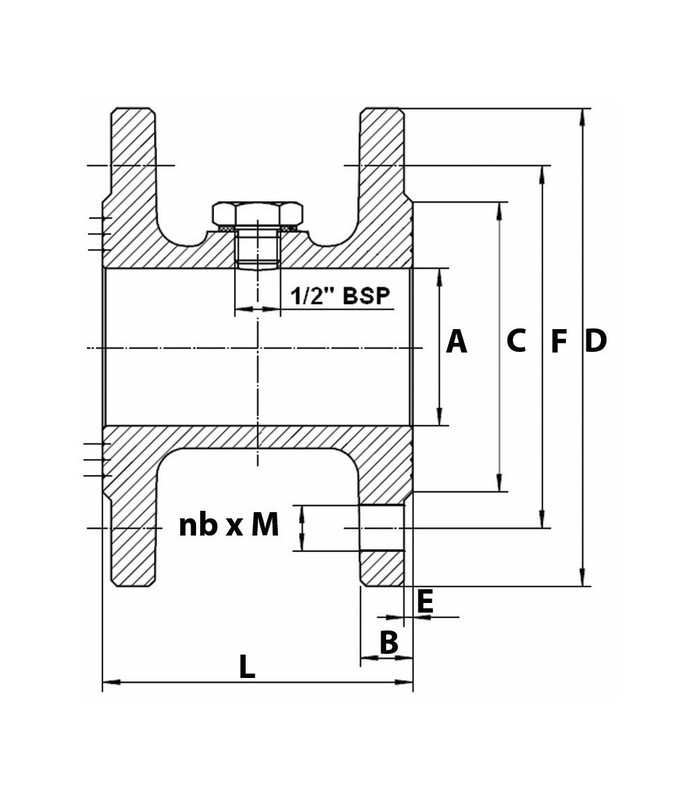

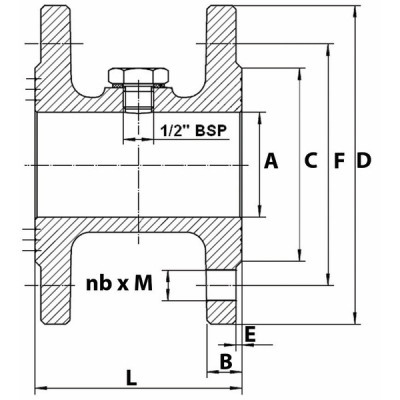

Cast iron with flanges R.F. GN10/16 up to DN150 GN10 in DN200 for spacing NF 29323 The butterfly valve and sleeve assembly allows for the replacement of steel gate valves without modification of the installation Admissible temperature: -10°C to +150°C Max. admissible pressure PN: 16 bar With drain 1/2? BSP spacing 144mm

Brand:

€98.74 (tax excl.)

In Stock 3 products

Reference:

110186

Download PDF

Add to wishlist

Description
Fitted on models...

Description

Cast iron with flanges R.F. PN10/16 up to DN150 PN10 in DN200 for spacing NF 29323 The butterfly valve and sleeve assembly allows for the replacement of steel gate valves without modification of the installation Admissible temperature: -10°C to +150°C Max. admissible pressure PN: 16 bar With drain 1/2? BSP spacing 144mm

Product Details

Reference 110186

Data sheet

FAB_COM_EQ: ORIGINE FABRICANT

Loading in progress...

Reviews

Be the first to write your review !
