Neck flange 50 PN10- DIFF - 110188

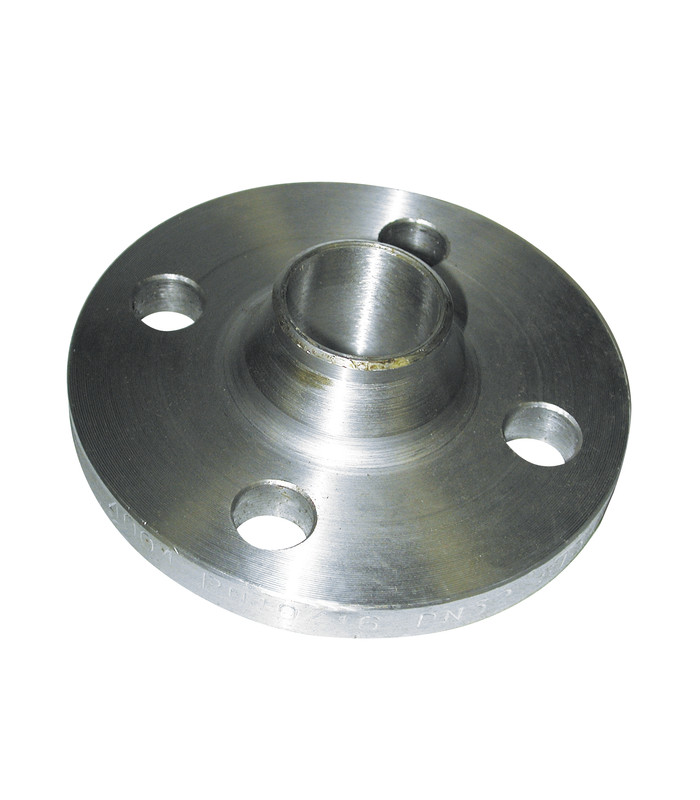

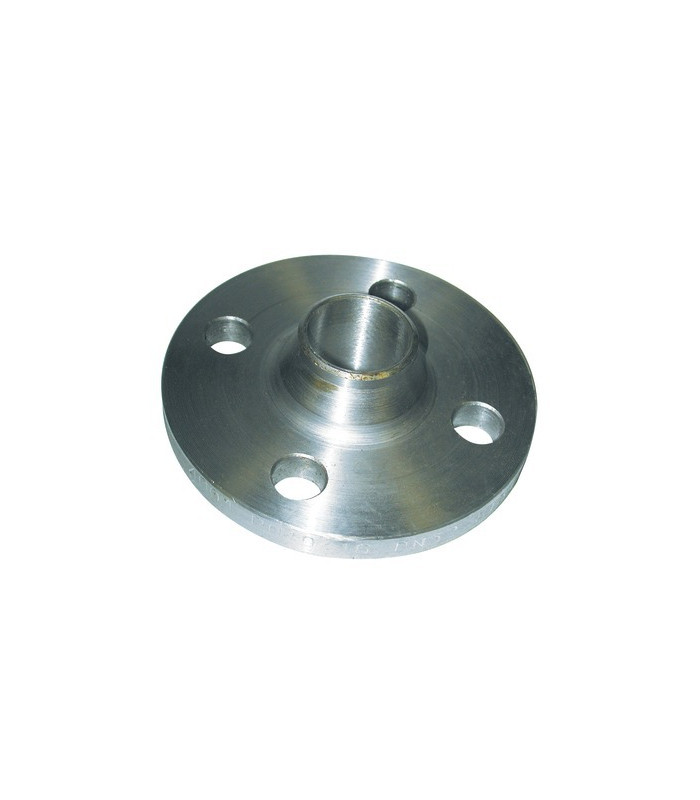

Steel collared flange for welding raised upright joint face 4004 PN10 Manufacturing according to EN 1092-1 standards Marking: A mark is made on each flange Commercial brand, standards, Nominal pressure type, DN, Material, Batch No.
Brand:
€11.21
(tax excl.)
Reference:
Download PDF
110188
Add to wishlist

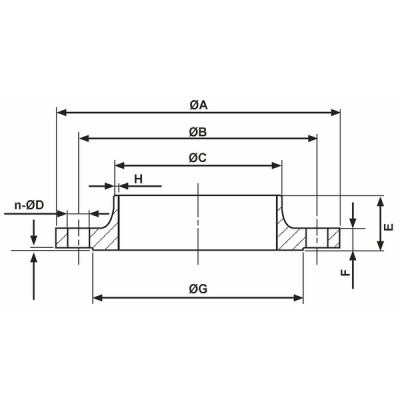

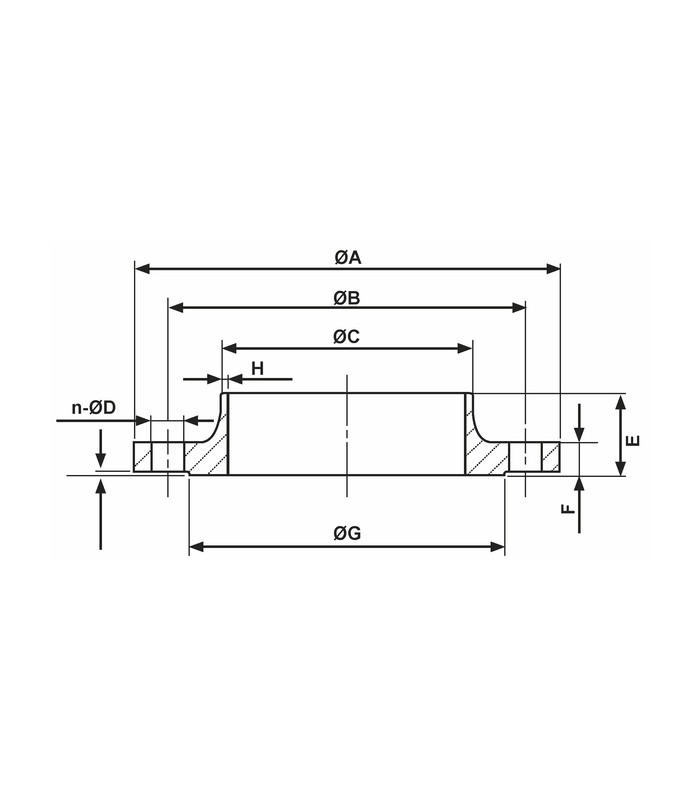

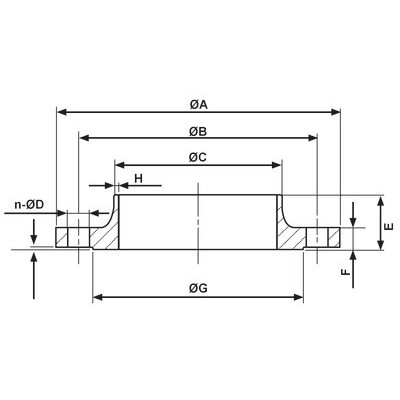

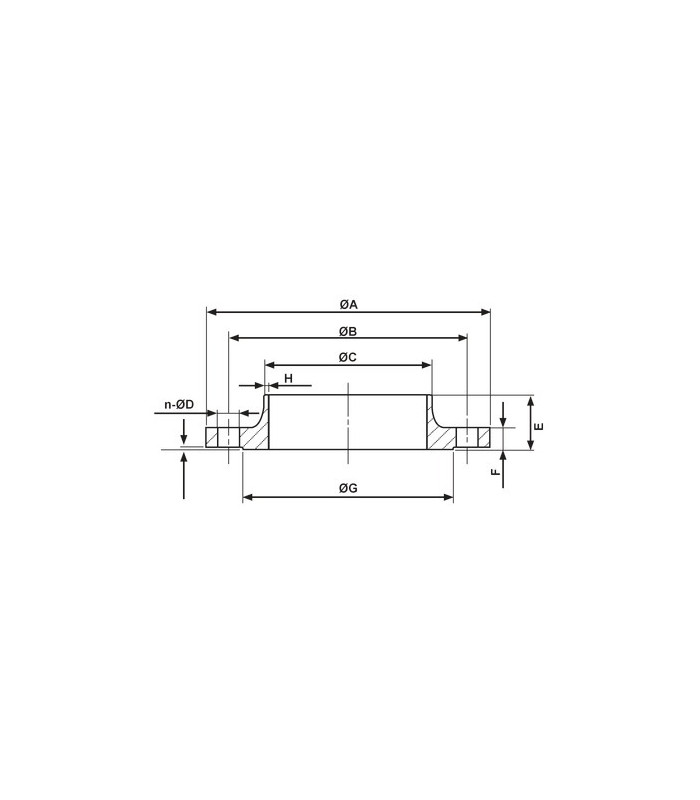

| F (mm) | 18.0 | |
| Fixation | M16 | |
| H (mm) | 2.0 | |
| Ø | 102 | |
| DN | 50.0 | |
| E (mm) | 45.0 | |
| D (mm) | 18.0 | |
| A (mm) | 165.0 | |
| Application | PN : 10-16 | |
| B (mm) | 125.0 | |
| C (mm) | 60.3 | |
| G (mm) | 102 | |
| Nombre | 4 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Hauteur emballage (m) | 0.048 | |
| Largeur emballage (m) | 0.17 | |
| Longueur emballage (m) | 0.17 | |
| Poids emballage (kg) | 2.55 |
