Neck flange 65 PN10- DIFF - 110189

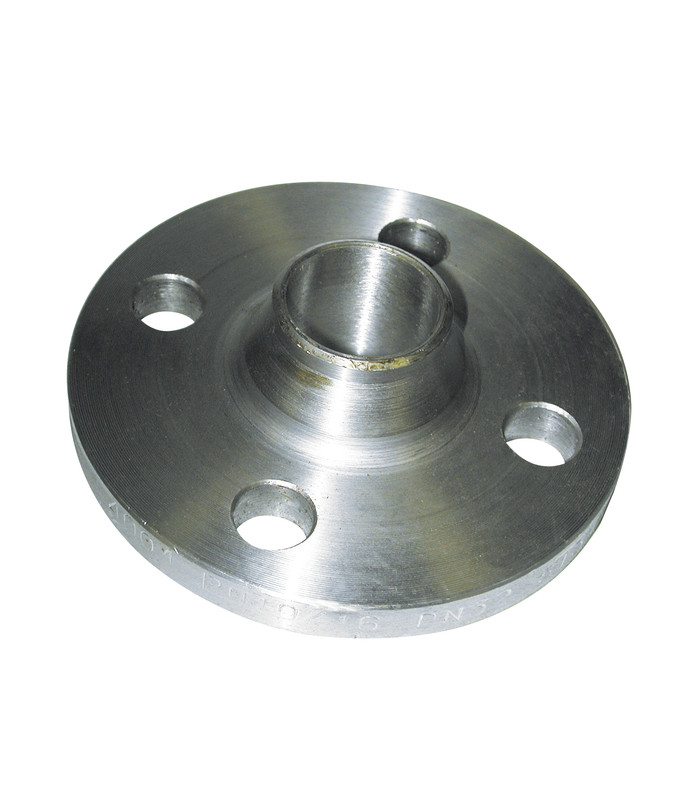

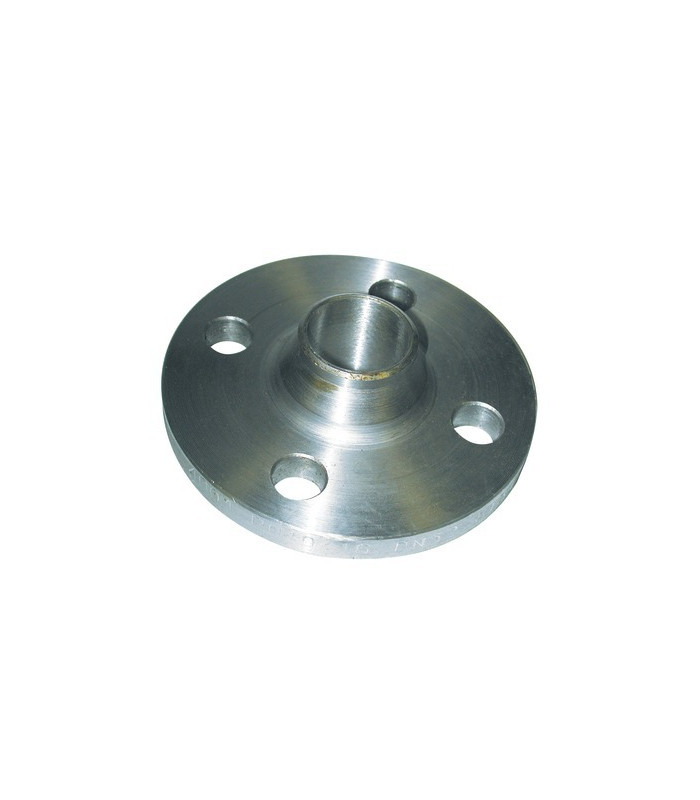

Steel collared flange for welding raised upright joint face 4004 PN10 Manufacturing according to EN 1092-1 standards Marking: A mark is made on each flange Commercial brand, standards, Nominal pressure type, DN, Material, Batch No.
Brand:
€12.19
(tax excl.)
Reference:
Download PDF
110189
Add to wishlist

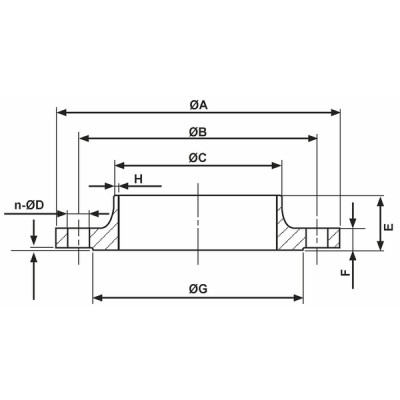

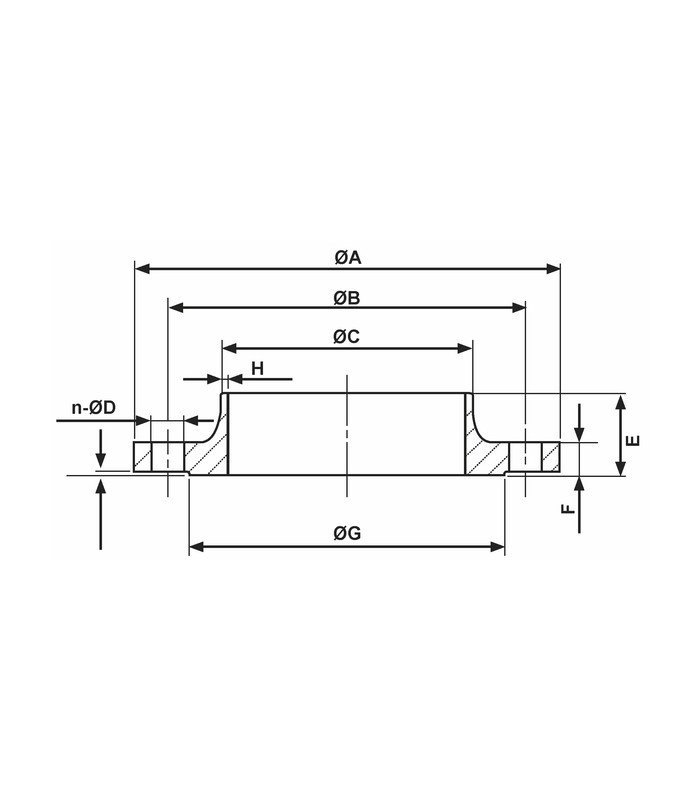

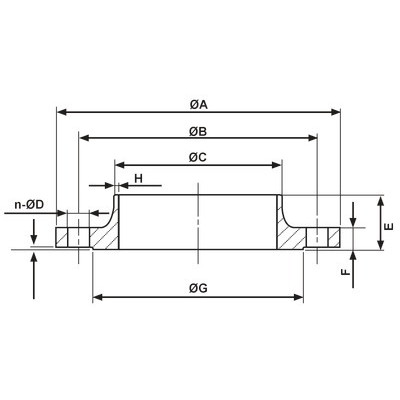

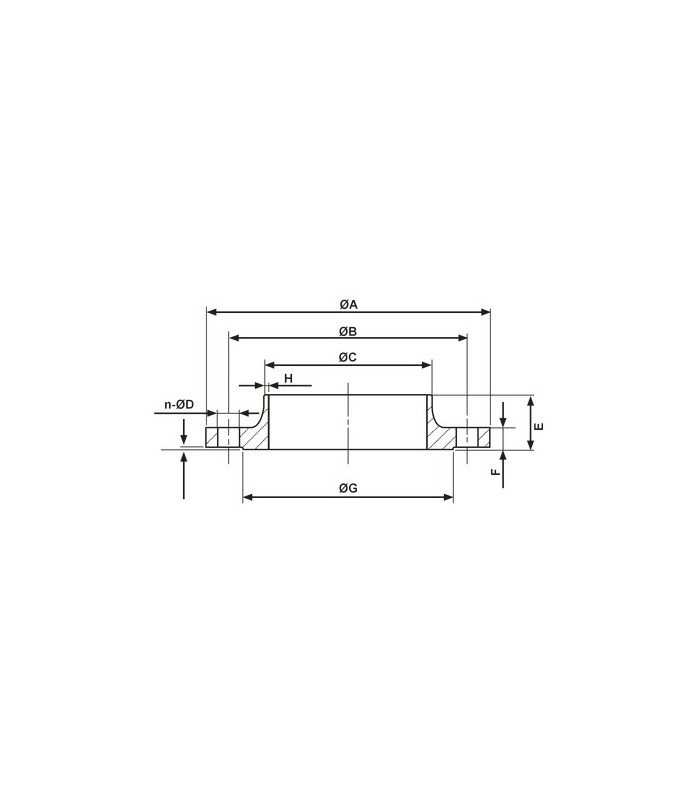

| F (mm) | 18.0 | |
| Fixation | M16 | |
| H (mm) | 2.0 | |
| Ø | 122 | |
| DN | 65.0 | |
| E (mm) | 45.0 | |
| D (mm) | 18.0 | |
| A (mm) | 165.0 | |
| Application | PN : 10-16 | |
| B (mm) | 145.0 | |
| C (mm) | 76.1 | |
| G (mm) | 122 | |
| Nombre | 8 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Hauteur emballage (m) | 0.047 | |
| Largeur emballage (m) | 0.19 | |
| Longueur emballage (m) | 0.19 | |
| Poids emballage (kg) | 3.02 |
110189
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- F (mm)
- 18.0
- Fixation
- M16
- H (mm)
- 2.0
- Ø
- 122
- DN
- 65.0
- E (mm)
- 45.0
- D (mm)
- 18.0
- A (mm)
- 165.0
- Application
- PN : 10-16
- B (mm)
- 145.0
- C (mm)
- 76.1
- G (mm)
- 122
- Nombre
- 8
- Norme
- EN1092_1
- Type
- BW11/B
- Hauteur emballage (m)
- 0.047
- Largeur emballage (m)
- 0.19
- Longueur emballage (m)
- 0.19
- Poids emballage (kg)
- 3.02
