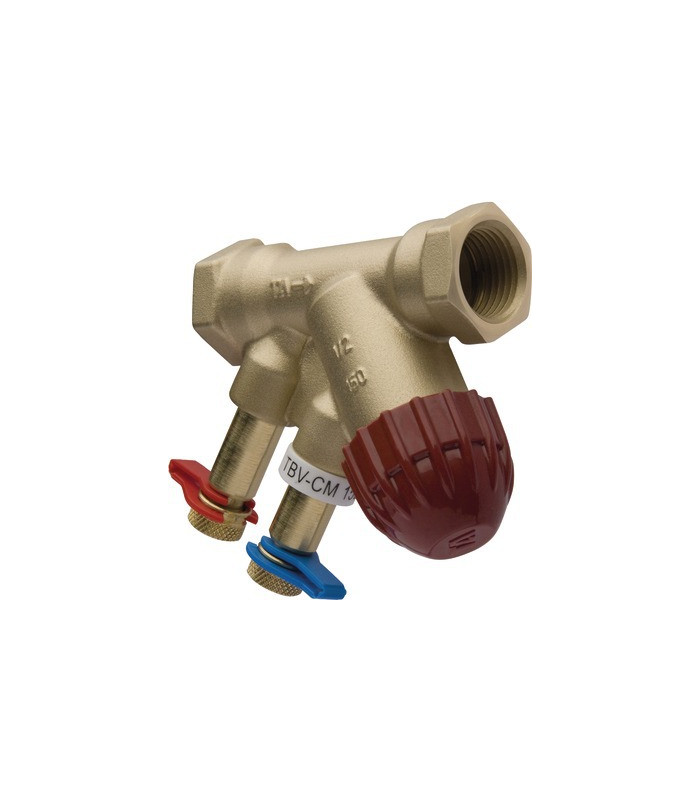

TBV-CM LF low flow valve 1/2- IMI - 52143-115

Name: TBV-CM LF low flow valve 1/2- IMI - 52143-115
Brand: IMI
SKU: 110394
Price: 60.87 EUR
Availability: InStock

Flow and differential pressure measuring helps to reduce pump energy consumption and facilitates commissioning Pressure class: PN 16 Min. working temperature: 0°C Valve body: AMETAL® Valve plug: Stainless steel Spindle seal: EPDM O-ring Membrane: EPDM and HNBR O-rings: EPDM Max. working temperature: 90°C Water or neutral fluids, water-glycol mixtures. Valve insert: AMETAL® and PPS Spindle: Stainless steel ?p insert: PPS Springs: Stainless steel

Brand:

€60.87 (tax excl.)

In Stock 5 products

Reference:

110394

Download PDF

Add to wishlist

Description
Caracteristique

Description

Caractéristiques

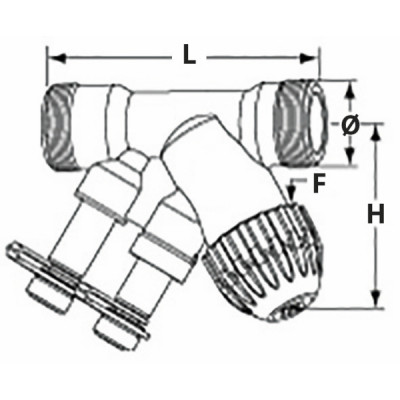

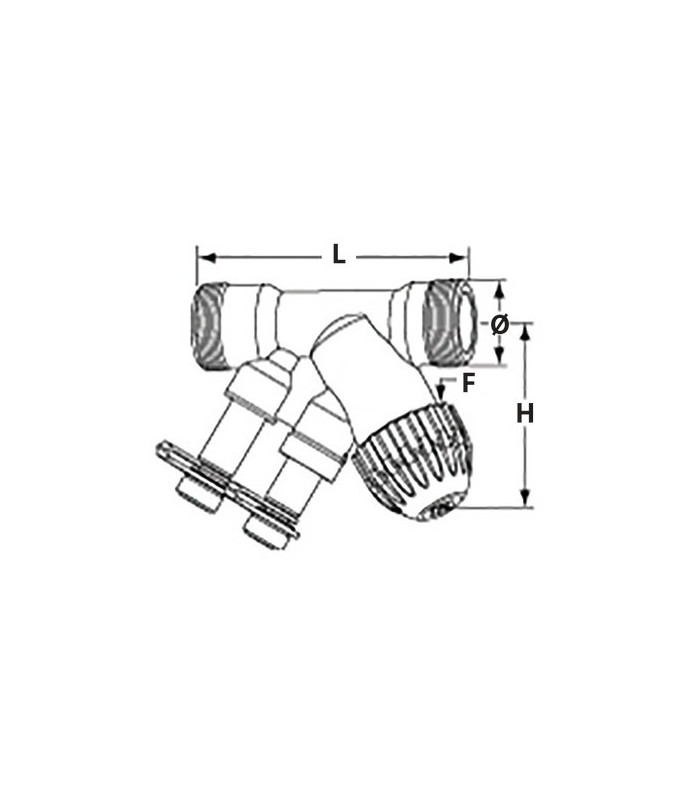

H (mm)	58
Length (mm)	81
Ø	F1/2"
DN	15
Specifications	F: M30x1,5
Certification	ACS
Kv (m³/h)	0.4
Package Height (m)	0.09
Package Width (m)	0.04
Package Length (m)	0.1
Package Weight (kg)	0.35

Product Details

Reference 110394

Data sheet

FAB_COM_EQ: ORIGINE FABRICANT

H (mm): 58

Length (mm): 81

Ø: F1/2"

DN: 15

Specifications: F: M30x1,5

Certification: ACS

Kv (m³/h): 0.4

Package Height (m): 0.09

Package Width (m): 0.04

Package Length (m): 0.1

Package Weight (kg): 0.35
