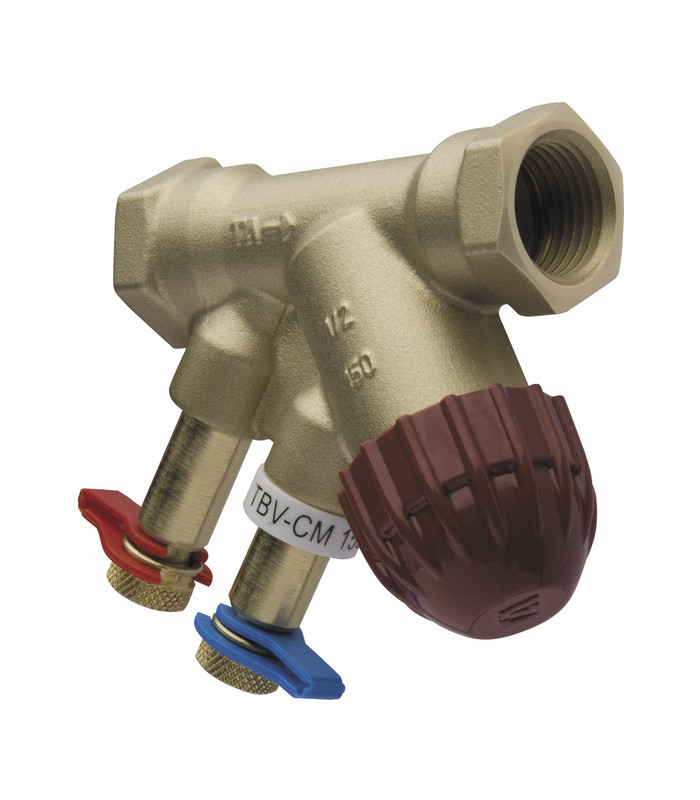

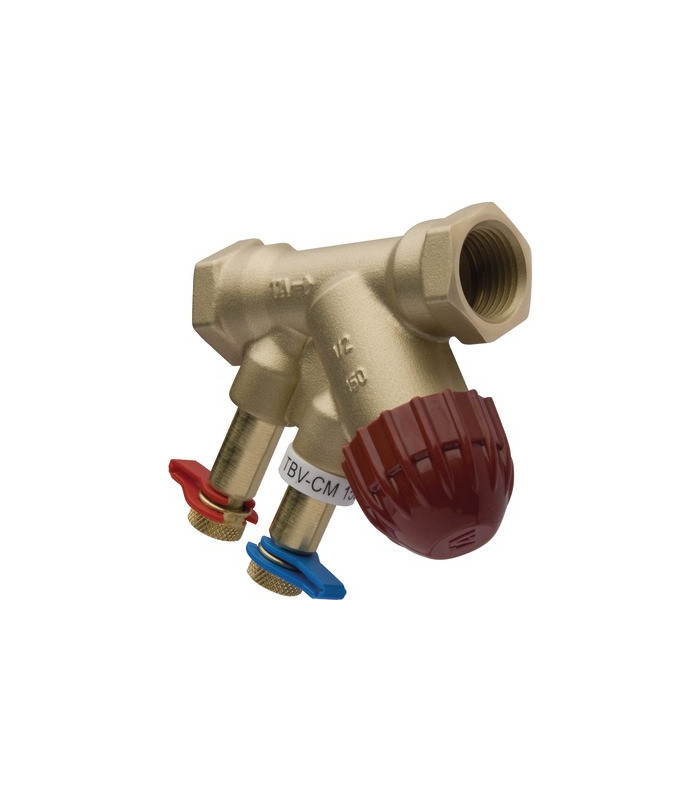

TBV-CM NF normal flow valve 1/2- IMI - 52144-115
Designed for use in terminal units in heating and cooling systems, the TBV-CM ensures accurate hydronic control and optimum circulation. IMI Hydronic Engineering?s dezincification resistant alloy, AMETAL®, minimises the risk of leakage. Dimensions: DN 15-25 Pressure class: PN 16 Max. working temperature: 120°C Min. working temperature: -20°C
Brand:
€60.87
(tax excl.)
Reference:
Download PDF
110395
Add to wishlist

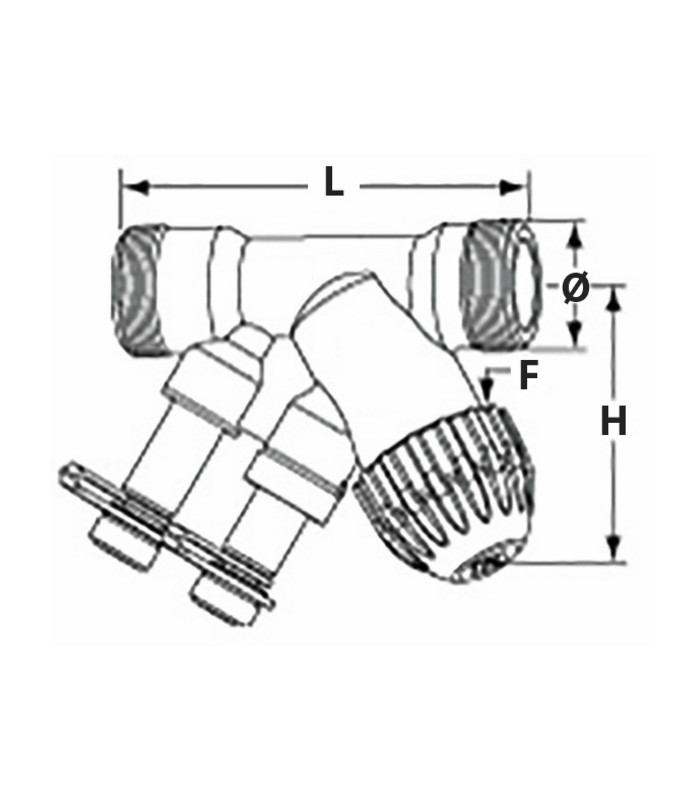

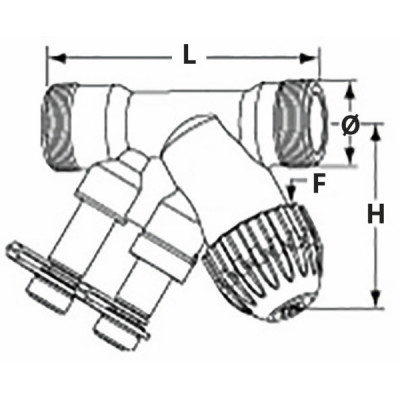

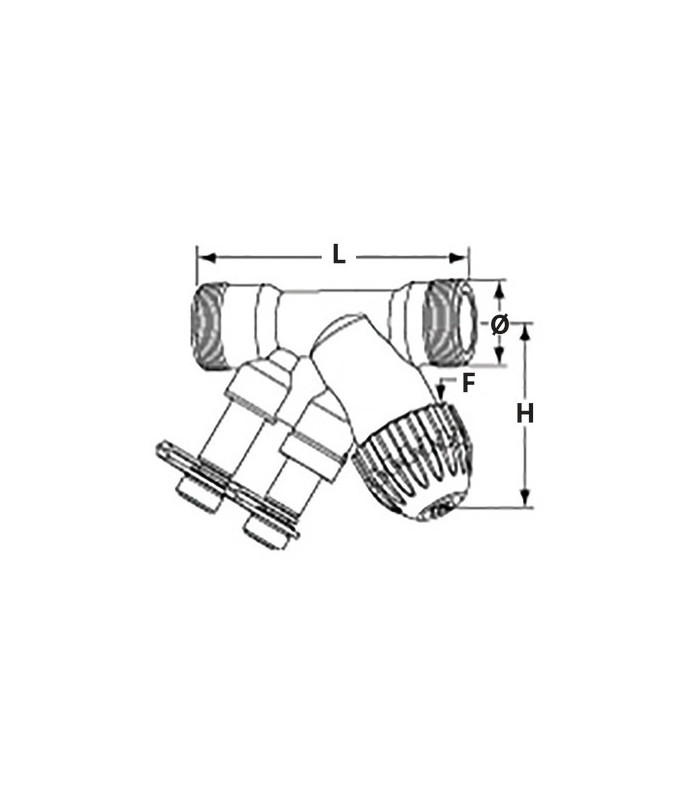

| H (mm) | 58 | |
| Longueur (mm) | 81 | |
| Ø | F1/2" | |
| DN | 15 | |
| Caractéristiques | F: M30x1,5 | |
| Certification | ACS | |
| Kv (m3/h) | 1 | |
| Hauteur emballage (m) | 0.09 | |
| Largeur emballage (m) | 0.04 | |
| Longueur emballage (m) | 0.1 | |
| Poids emballage (kg) | 0.35 |
