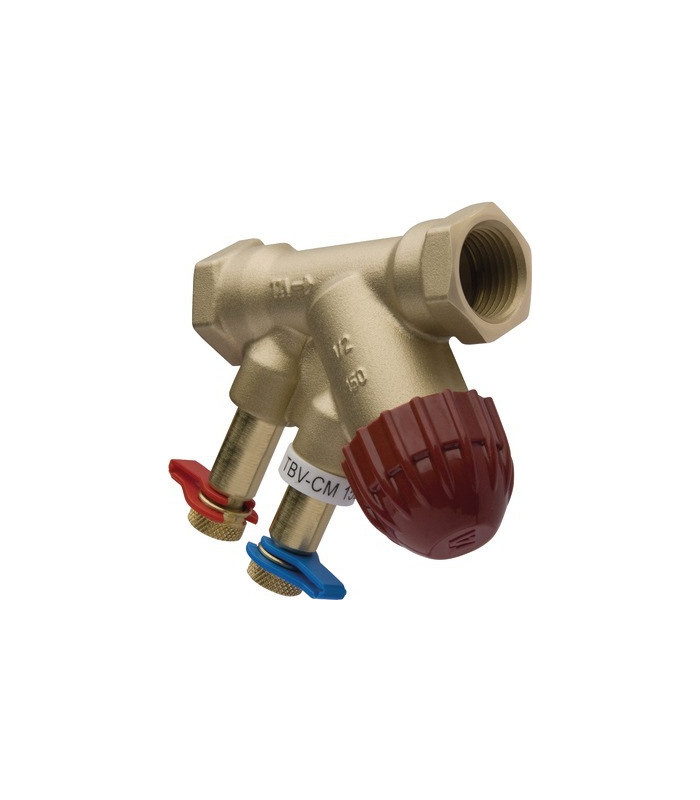

TBV-CM NF normal flow valve 3/4- IMI - 52144-120
Designed for use in terminal units in heating and cooling systems, the TBV-CM ensures accurate hydronic control and optimum circulation. IMI Hydronic Engineering?s dezincification resistant alloy, AMETAL®, minimises the risk of leakage. Dimensions: DN 15-25 Pressure class: PN 16 Max. working temperature: 120°C Min. working temperature: -20°C
Brand:
€69.55
(tax excl.)
Reference:
Download PDF
110396
Add to wishlist

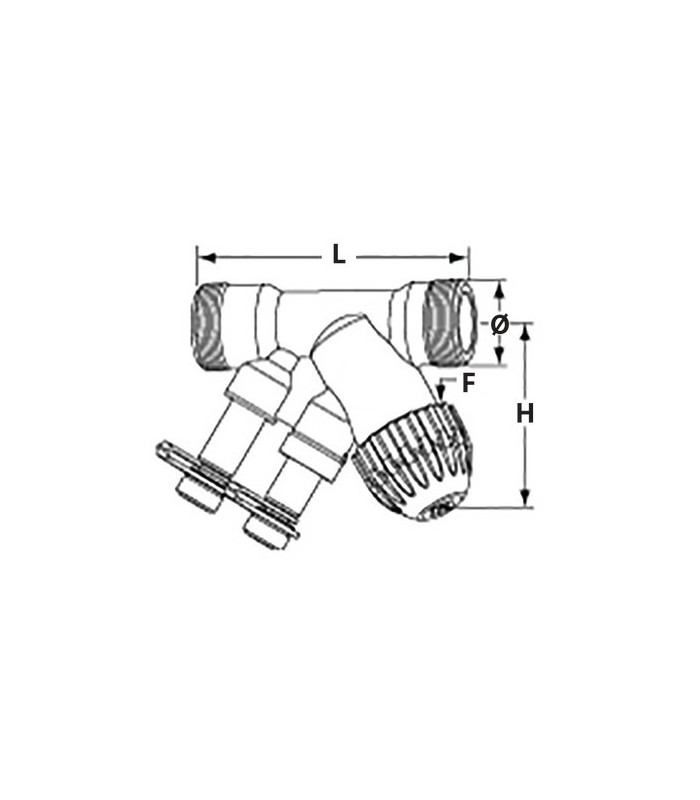

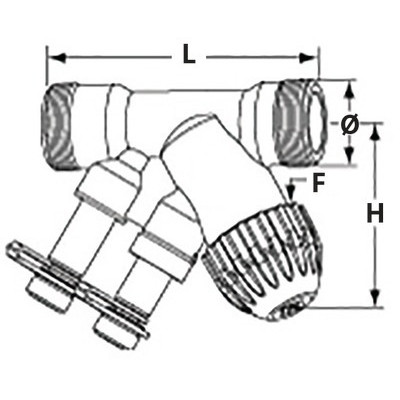

| H (mm) | 57 | |
| Length (mm) | 91 | |
| Ø | F3/4'' | |
| DN | 20 | |
| Specifications | F: M30x1,5 | |
| Certification | ACS | |
| Kv (m³/h) | 2 | |
| Package Height (m) | 0.09 | |
| Package Width (m) | 0.04 | |
| Package Length (m) | 0.1 | |
| Package Weight (kg) | 0.432 |
