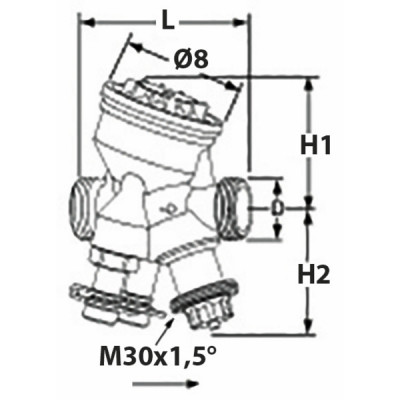

TA-COMPACT-P valve M 1/2? DN 10 flow from 21.5 to 120l/h - IMI : 52164-010
Flow and differential pressure measuring helps to reduce pump energy consumption and facilitates commissioning. Pressure class PN 16 Min. working temperature: 0°C Valve body: AMETAL Valve plug: stainless steel Spindle seal: EPDM O-ring Membrane: EPDM and HNBR O-rings: EPDM Max. working temperature 90°C Water or neutral fluids, water-glycol mixtures. Valve insert: AMETAL and PPS Spindle: stainless steel ¿p insert: PPS Springs: stainless steel
