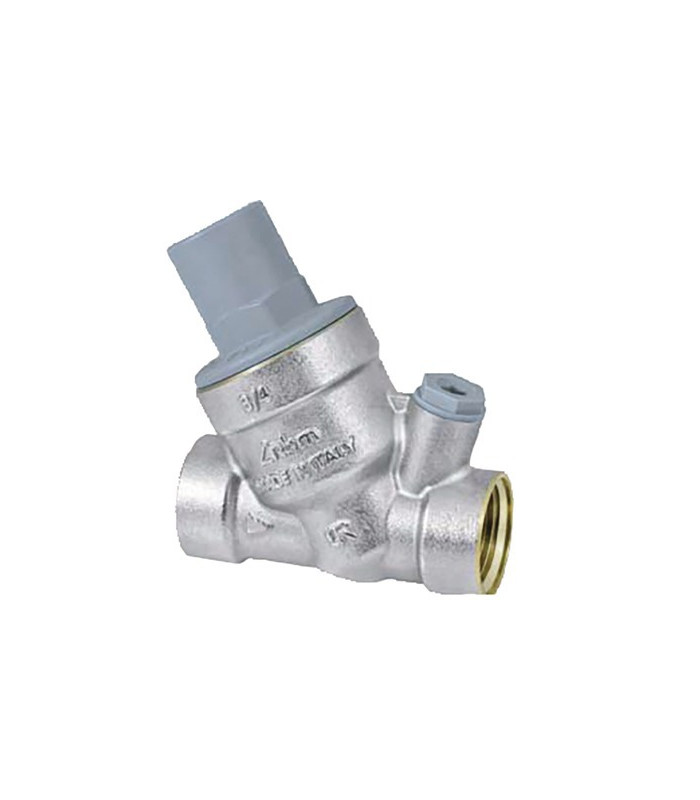

Reducing valve rinox and filter 3/4"- RBM - 28480500
| Length (mm) | 78 | |
| Logo Marque | RBM | |
| Matière | INOX | |
| Ø | F3/4" | |
| DN | 20 | |

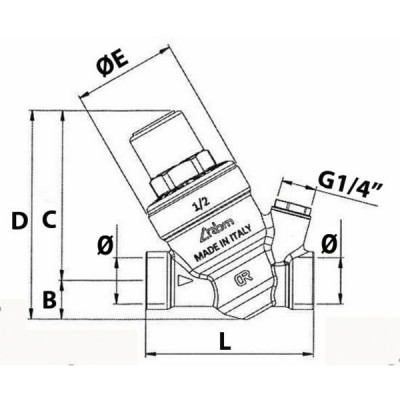

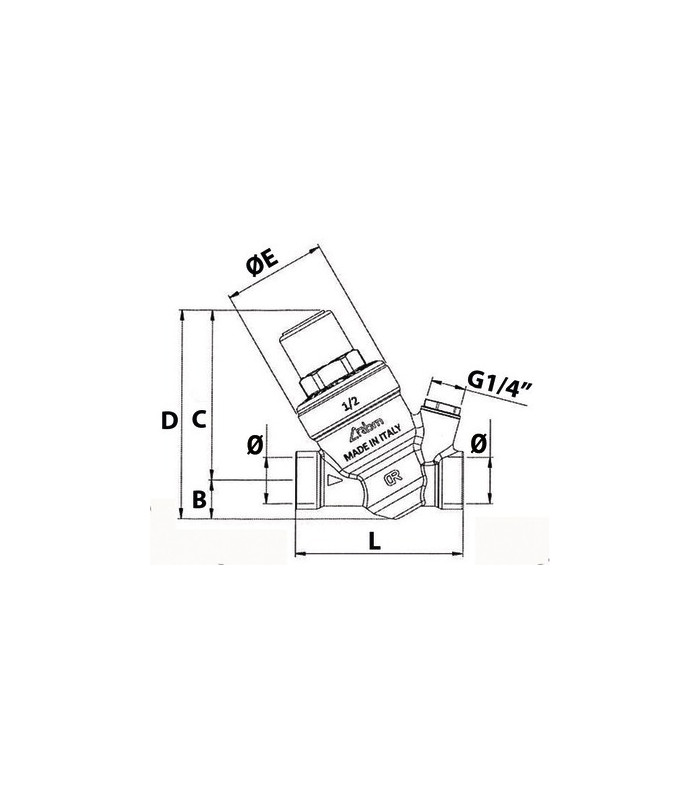

| E (mm) | 46 | |
| Certification | ACS | |
| D (mm) | 93 | |
| A (mm) | 78 | |
| B (mm) | 16 | |
| C (mm) | 77 | |
| Pressure (bar) | 25 | |
| Adjustment | 0,8...7b | |
| Package Height (m) | 0.13 | |
| Package Width (m) | 0.06 | |
| Package Length (m) | 0.09 | |
| Package Weight (kg) | 0.461 | |
| Thread size | Pas de filetage de tuyau |
110500
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- Length (mm)
- 78
- Logo Marque
- RBM
- Matière
- INOX
- Ø
- F3/4"
- DN
- 20
- E (mm)
- 46
- Certification
- ACS
- D (mm)
- 93
- A (mm)
- 78
- B (mm)
- 16
- C (mm)
- 77
- Pressure (bar)
- 25
- Adjustment
- 0,8...7b
- Package Height (m)
- 0.13
- Package Width (m)
- 0.06
- Package Length (m)
- 0.09
- Package Weight (kg)
- 0.461
- Thread size
- Pas de filetage de tuyau
