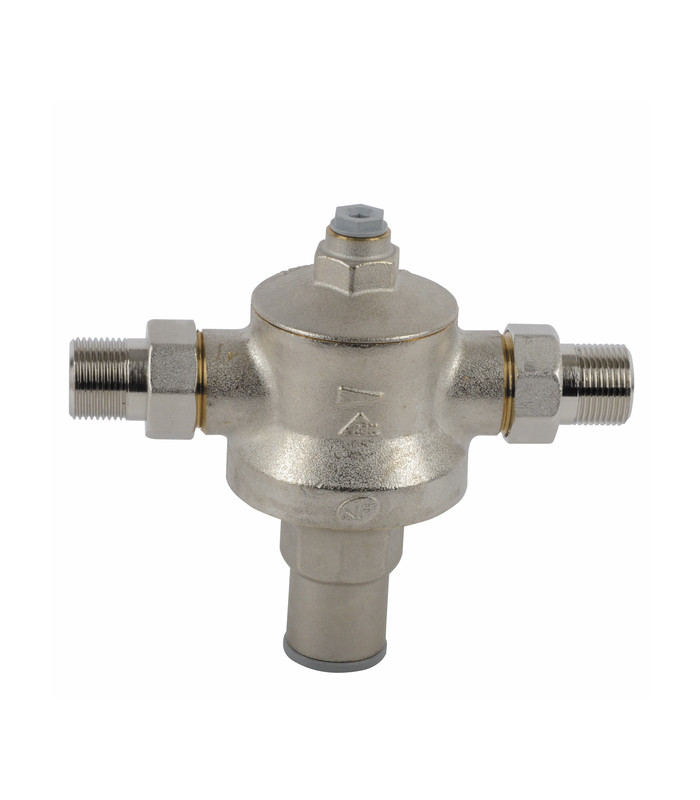

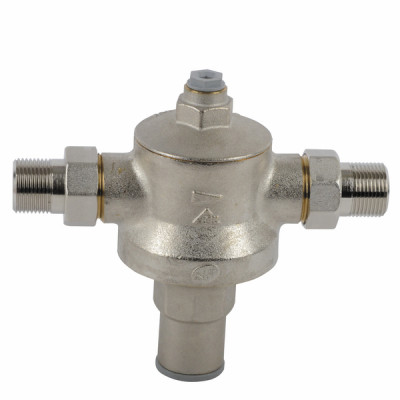

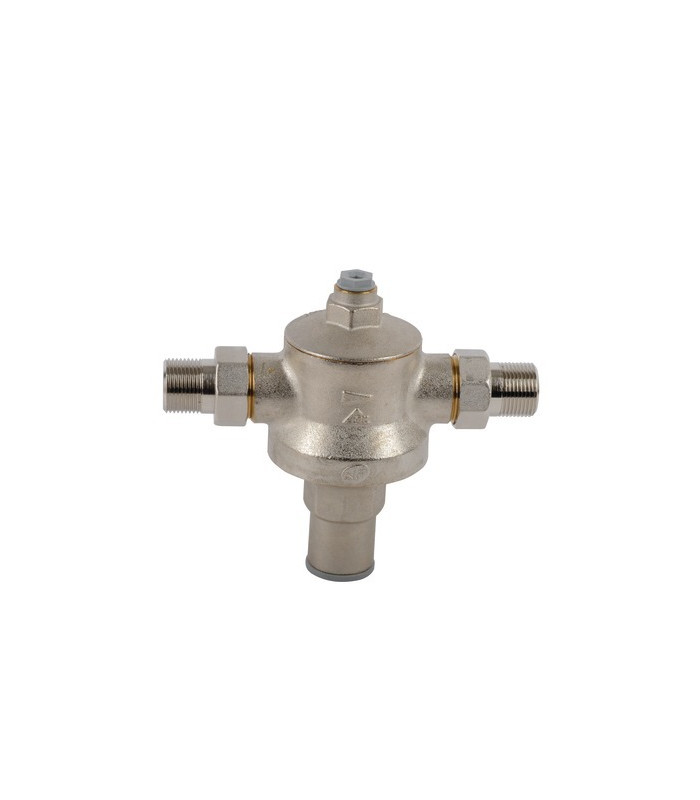

Rinox diaphragm pressure reducing valve MM 3/4"- RBM - 510510
Stainless steel double seat diaphragm operation, with anti-water hammer function.
Brand:
€63.41
(tax excl.)
Reference:
Download PDF
110541
Add to wishlist
Pressure reducing valve in 3/4? MM, stainless steel double seat diaphragm operation, with anti-water hammer function. CHARACTERISTICS: Nickel-plated bodyStainless steel AISI 303 seal seatsNBR sealsThreaded connections MM UNI-EN-ISO 228Pressure gauge connection F 1/4?Max. upstream pressure 40 bar (16 bar in NF)Max. operating temperature 80°CFactory pre-setting 3 barSetting range 0.8 to 5.5 barCertified ACS and NF.
Read more

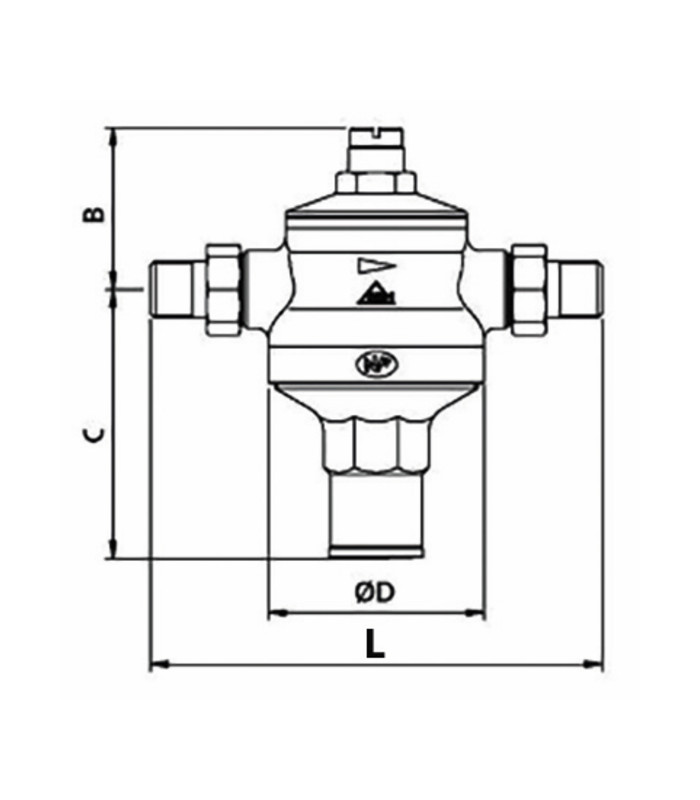

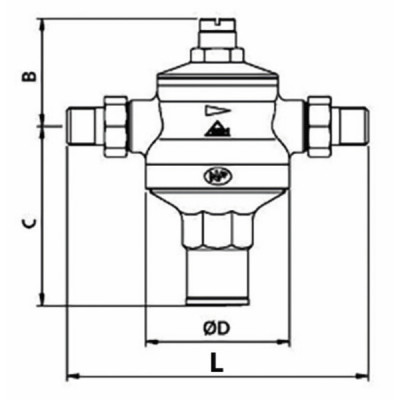

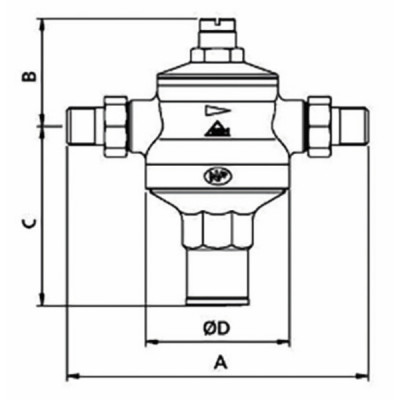

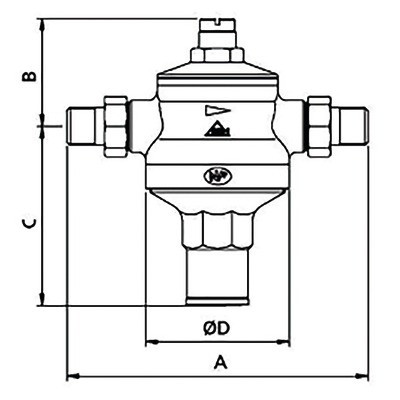

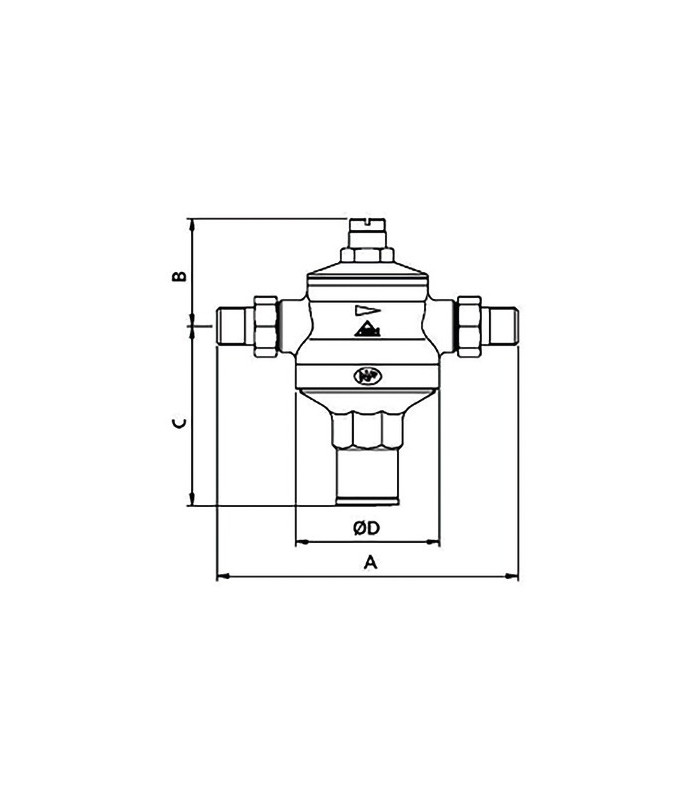

| Length (mm) | 175 | |
| Logo Marque | RBM | |
| Ø | M3/4" | |
| DN | 20 | |
| Certification | ACS | |
| D (mm) | 78 | |
| B (mm) | 58,5 | |
| C (mm) | 97 | |
| Norme | NF | |
| Adjustment | 0,8...5,5b | |
| Package Height (m) | 0.09 | |
| Package Width (m) | 0.165 | |
| Package Length (m) | 0.185 | |
| Package Weight (kg) | 1.8 |
