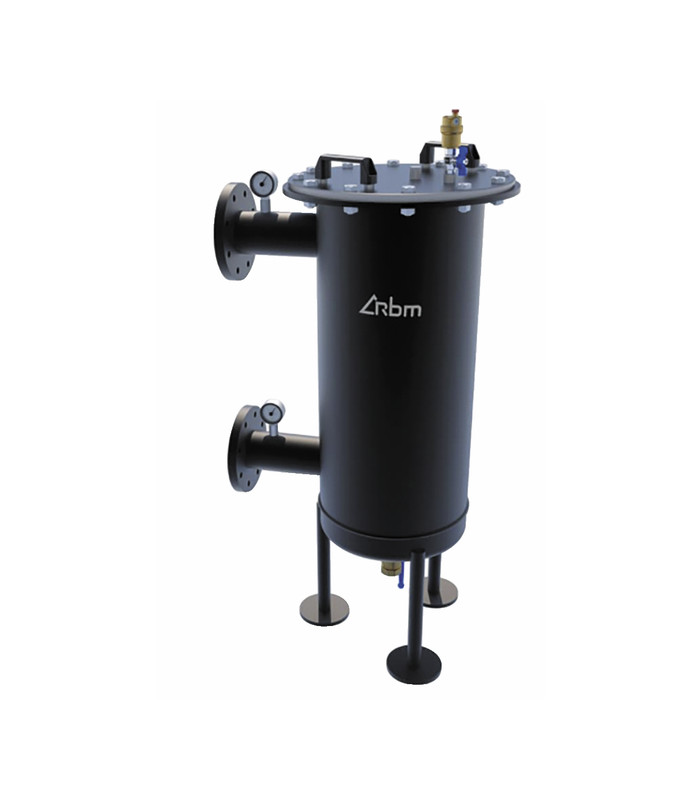

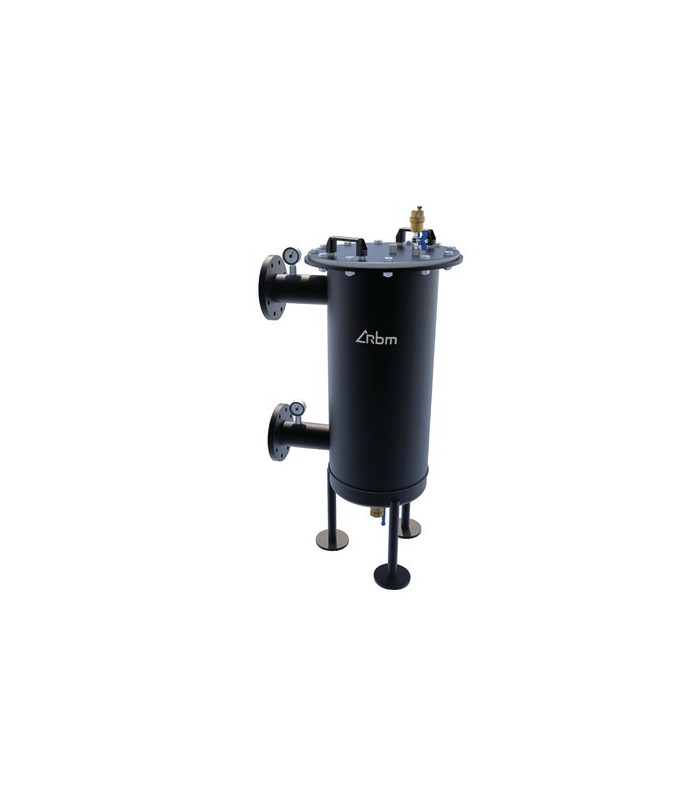

Magnetic filter MG PLUS DN80 - RBM : 35411110

Removes all impurities Guarantees efficiency of the installation Dosing point for the addition of treatment fluids, easy access. Low maintenance cost The large removable basket with non-return valve prevents impurities from falling back into the filter The ability to clean the filter without it emptying completely reduces the quantity of chemical additives to be added after each maintenance operation Self-cleaning Reinforced stainless steel filter mesh, with filtration degree 100-micron Reduced dimensions for the product category The magnets protected from contact with water guarantee easy cleaning The large water capacity extends service intervals Anti-corrosion insulation shell on request Manufacturing characteristics: Varnished steel exterior Steel body Brass valve body EPDM perox gasket Filter basket: AISI stainless steel Magnet 12000 gauss Number of magnets: 4 Connectors: Flange PN16 Manometer: 0-10b delivered Dosing connector 3/8? Usable fluid: water and 30% glycolated water Max usage T°: 95°C Operating pressure 10b Filtration degree: 100 microns Delivered with 1-1/4" purge valve and purge
