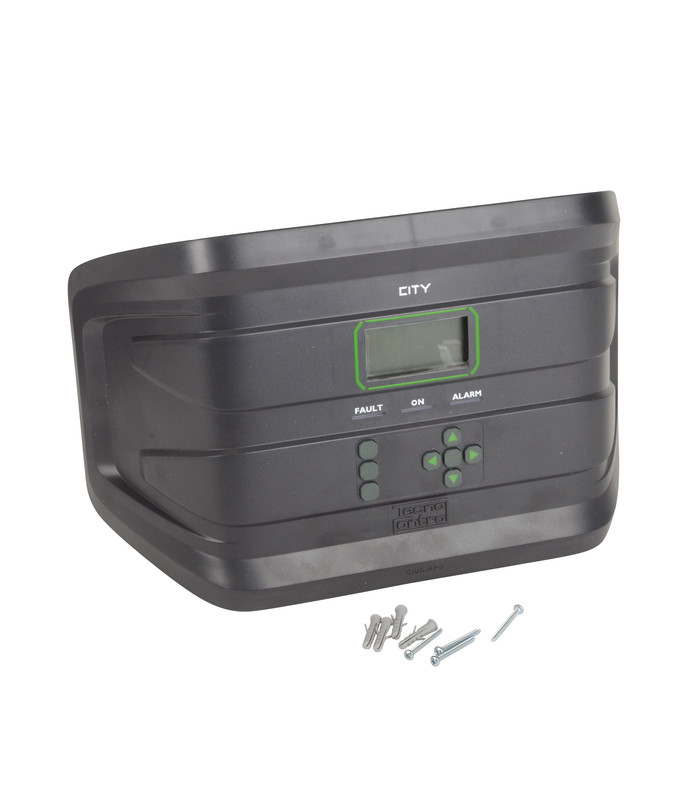

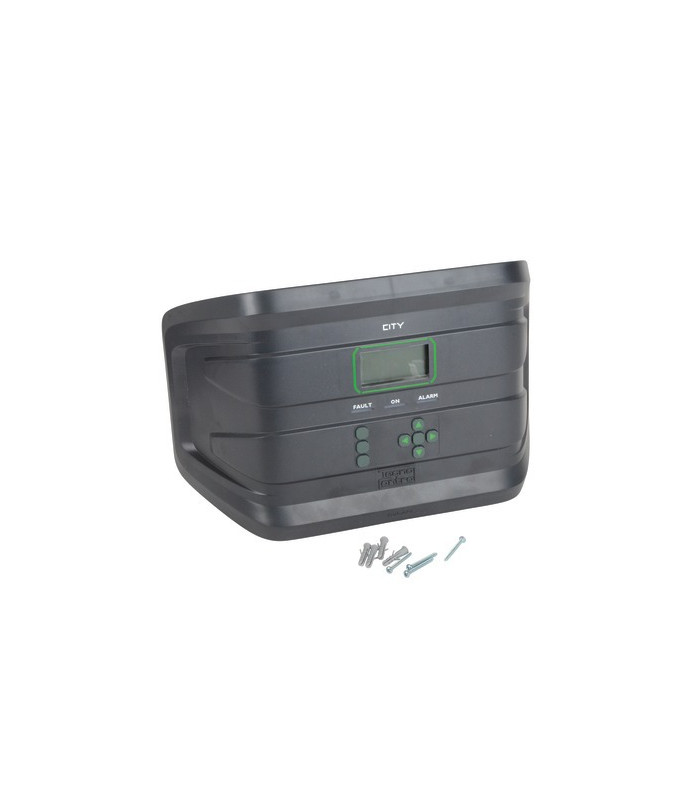

4-way digital control unit CE408P-CITY - TECNOCONTROL : CE408P

4-channel digital multi-gas detection unit, expandable to 8 channels. Backlit RGB colour screen on front panel, real-time display of the values transmitted by connected sensors. Equipped with 4 inputs and 4 relays + disturbance relays in the CE408 version, can be equipped with inputs/outputs, even after installation (maximum 8 inputs and 8 relays) + disturbance relay by adding an ES404 expansion board (4 inputs) and 1 ES414 board (4 relay outputs) for connection of all ES and TS series probes for the detection of explosive or toxic gases and vapours, and oxygen and CO2. Use of the control unit and programming simplified by the guided system and pre-configuration of the sensors. CE standard. IP40 Connectable probes: all probes in the 4-20mA ?SE?, ?TS? and IR series Configuration by pre-configured probes list and by password (3 security levels) AND, OR and PARKING operating logic (DM 1/2/86 or EN50545-1), usable with zones RESET function Display of events (100) Indication of operation with backlit screen Clock Test presence of IN-OUT boards SD card for: Software update Data recorder Backup for Programming Backup with slot for 2 batteries 12V-1.3Ah Dimensions: 379(L)x241(h)x133(d)mm Delivered without probe
