Reference: 905242
Out-of-Stock

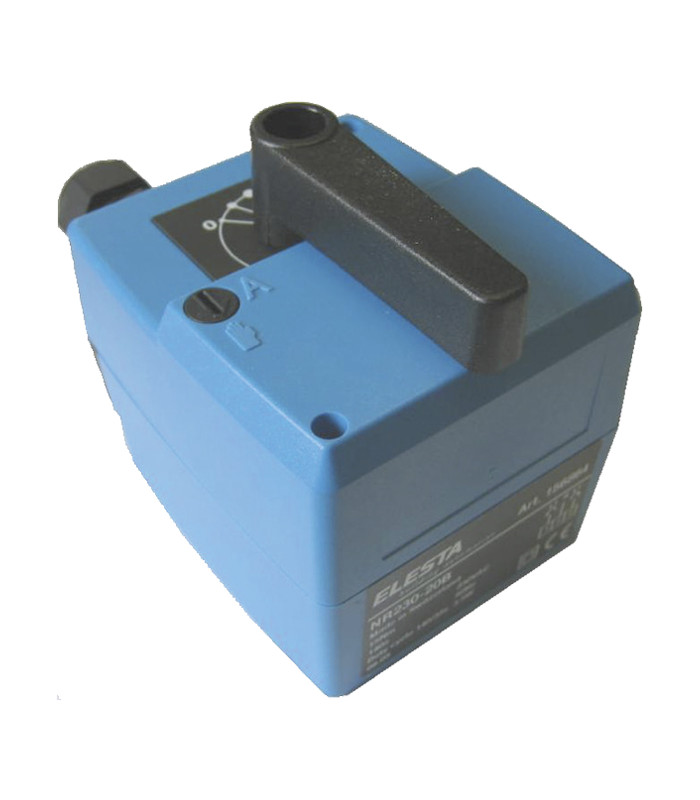

Rotary servomotor 3 points NR230 - E.R.E REGULATION : NR230-20B
Direct mounting on sector gate DN15 to DN150 Can be disengaged for manual control by handle Consumption: 3.5VA On terminal block for NR230-20B Protection index IP40 Delivered with MS-NRE adaptation for ELESTA H3MG and H4MG valve; ESBE 3G, 4G, 3MG, 4MG Thermador 3-way valve, V4V, VC3V, VC4V, Sauter M3R and M4R Control 3 points 15Nm Stroke time 140s-90° Dimensions 93x80x91mm
Loading...
This product can be fitted to the models listed below. :
