Sanicondens eco- SFA - SANICONDENS ECO

Condensate pump for gas boilers, refrigerated display cases, air conditioners and dehumidifier. Space-saving, good for gas boilers. Its tank is used to collect acid waters.

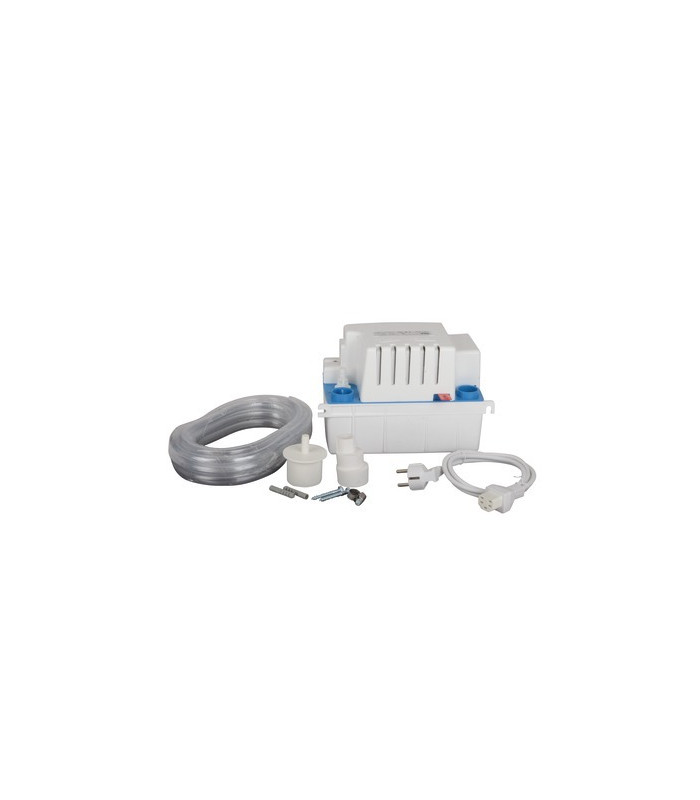

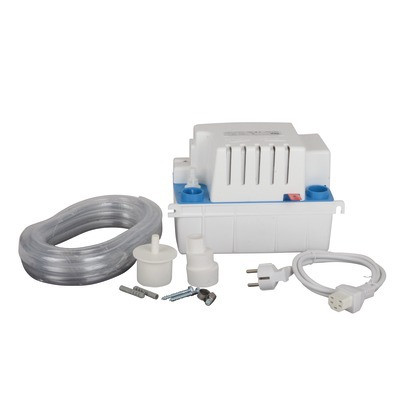

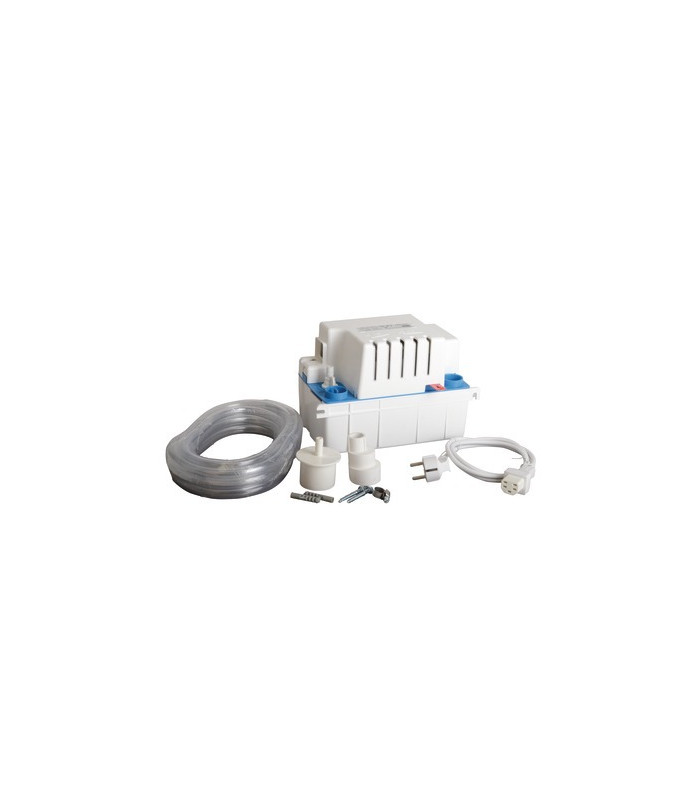

It is delivered with fixing screws, 1 input adaptator, 1 output adaptator (DN 50), 1 evacuation flexible (6 m) and 1 power cable of 2 m.

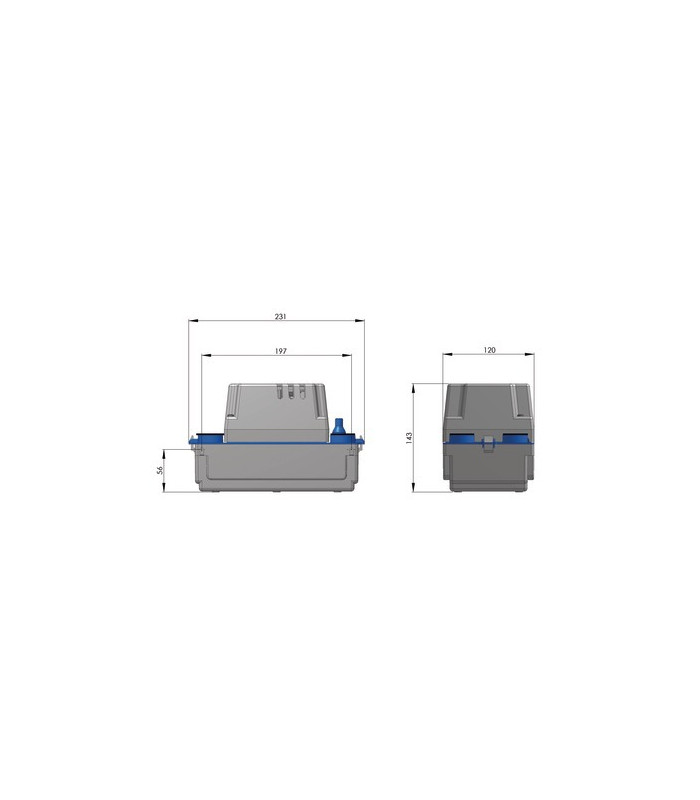

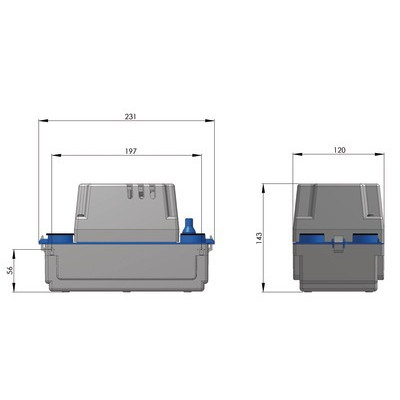

Dimensions : L 260 x P143 x l169 mm
Max temperature of waters used in the shorts periods : 80°C
Electrical class: I
Inlet diameter : 2 inlets diameter 28 mm
Nozzle diameter: 8/10mm
Max flow: 380 l/h
Tank volume: 2.2l
Max power consumption: 60 W
Sound level: < 45 dB(A)
Protection rating: IP20
Wall and floor fixation - Chack valve supplied
Adaptable to wall and floor boilers
Supply: 220-240 V/50 Hz
Max absorbed current: 0.52 A
Flow: >6.2L/min
Net weight : 2 Kg

Possible use for fuel boilers adding the Sanineutral.
Vertical and Horizontal backflow : 4.5 m x 50 m
Maximum power of boilers linked to Sanicondens :

Gas boilers : 50kW
Fuel boilers: 30kW

Guarantee: 2 years
