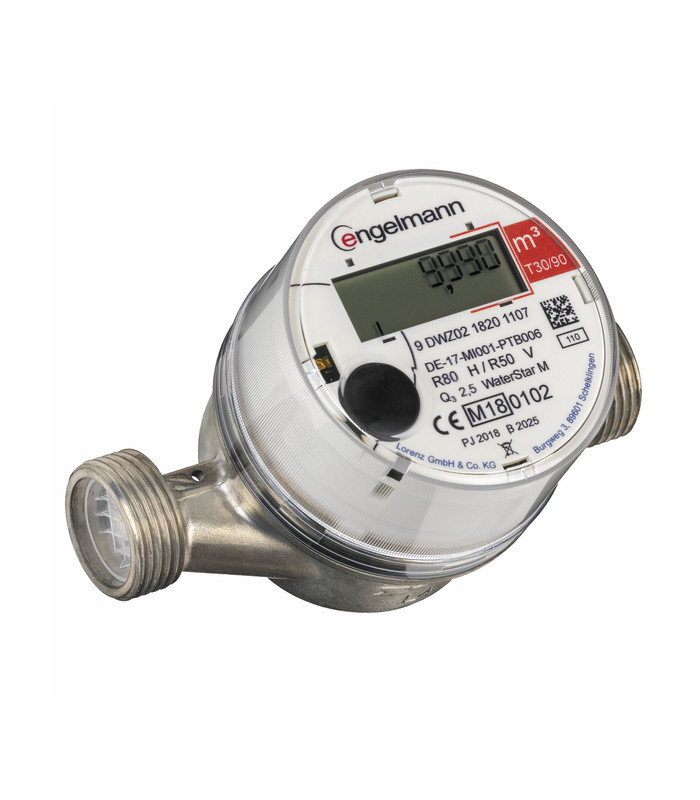

Hot water meter WATERSTAR M 110mm - ENGELMANN SENSOR : 1101600007
WaterStar M 90°C Cold water and hot water single-jet velocity meter equipped for wireless reading or remote reading
Communication integrated wireless M-bus
Measurement by inductive scanning system (high resistance to fraud)
Digital display
Autonomy 10 years
Permanent flow detection
Nominal pressure 10b
Q3/Q1 ratio: Horizontal: R80, vertical: R50 - old measurement class: B
Protection index: IP68
LCD display - 8 digits + special characters; 360° rotatable display
Mounting position: horizontal / vertical ? no straight lengths ? inlet flow correction sieve
Cold water temperature range: (T30) 0.1°C ? 30°C
Hot water temperature range: (T90) 0.1°C ? 90°C
Conforming with Open Metering System (OMS) (OMS 4 Mode 5)
Wireless mode T1 and C1 selectable
15 monthly indexes transmitted by Wmbus radio (15 monthly indexes and 15 mid-month indexes via optical interface)
Compact body diameter: 64.5mm
MID meter - approved commercial transaction
