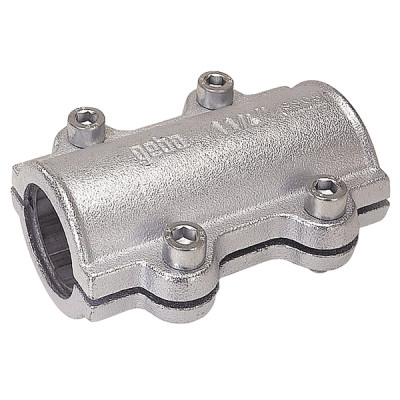

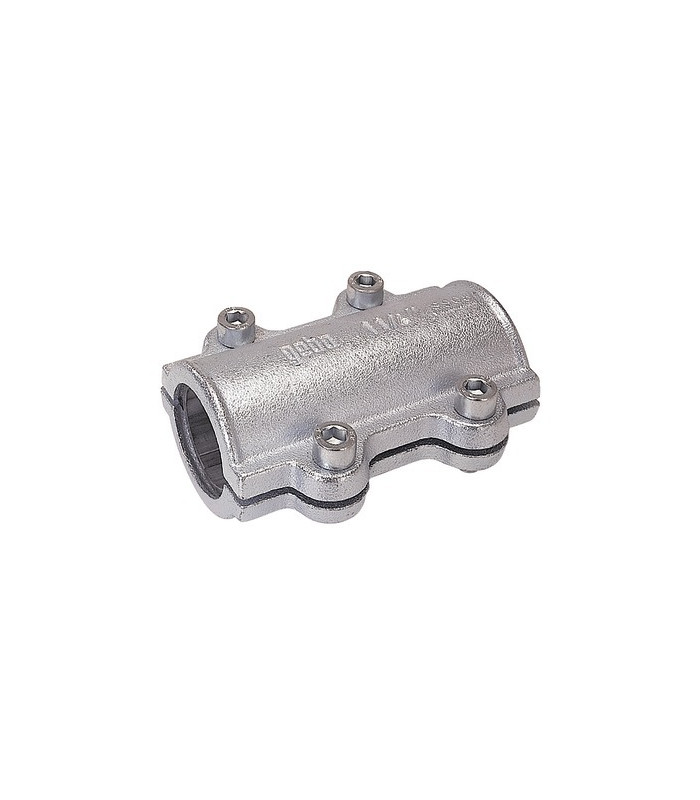

Long steel repair collar DSL 48.3 (1-1/2") - GEBO : 01.252.28.05

GEBO DSL repair collar to repair a pipe
The GEBO DSL collar is ideal for repairs on a domestic hot water pipe or a heating pipe. A leak can be plugged with a GEBO DSL collar regardless of whether the surface is porous or if there is a hole in the pipe.
It is made of malleable cast iron, and is ideal for steel tubes and at certain temperatures:

Up to 25°C for domestic hot water
Up to 90°C for heating water


Install the Gebo DSL repair collar

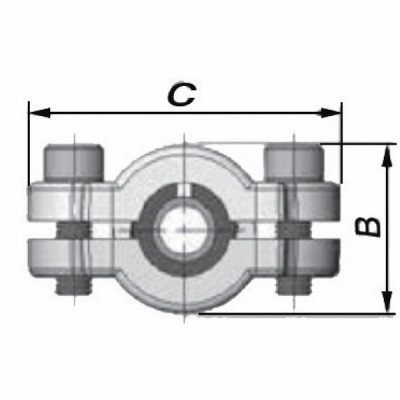

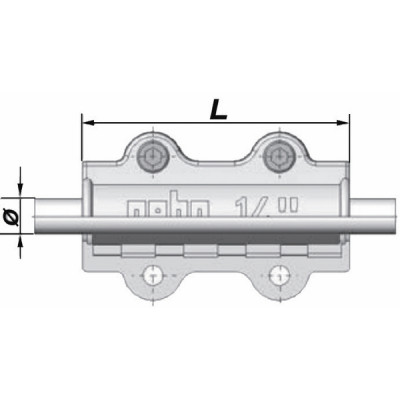

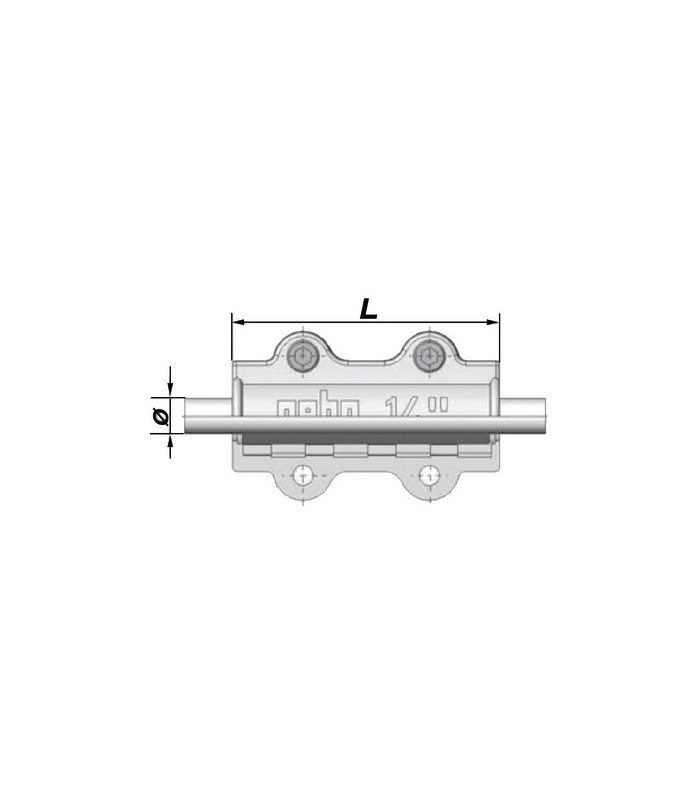

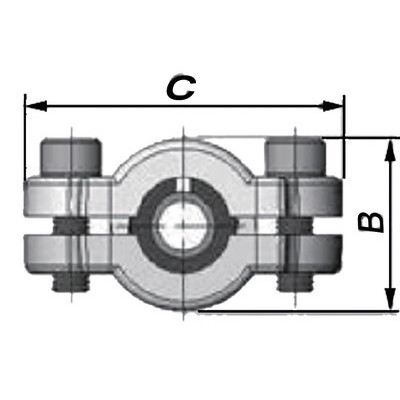

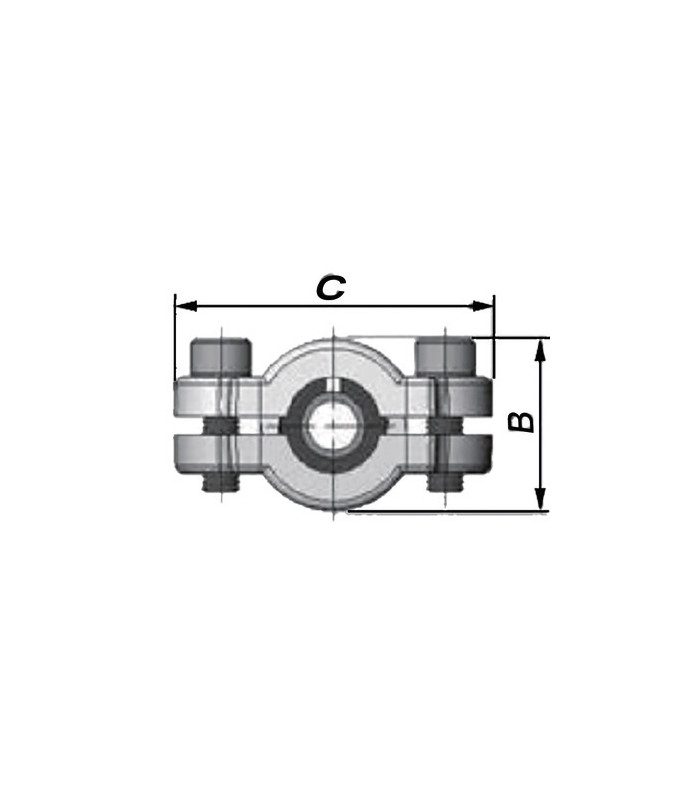

Know the diameter of the pipe and the length over which the GEBO repair collar should be installed.
Install the sleeve after cleaning the section to be plugged.
Install the GEBO DSL collar with an Allen key.
Restart the installation and test if the leak is plugged.
