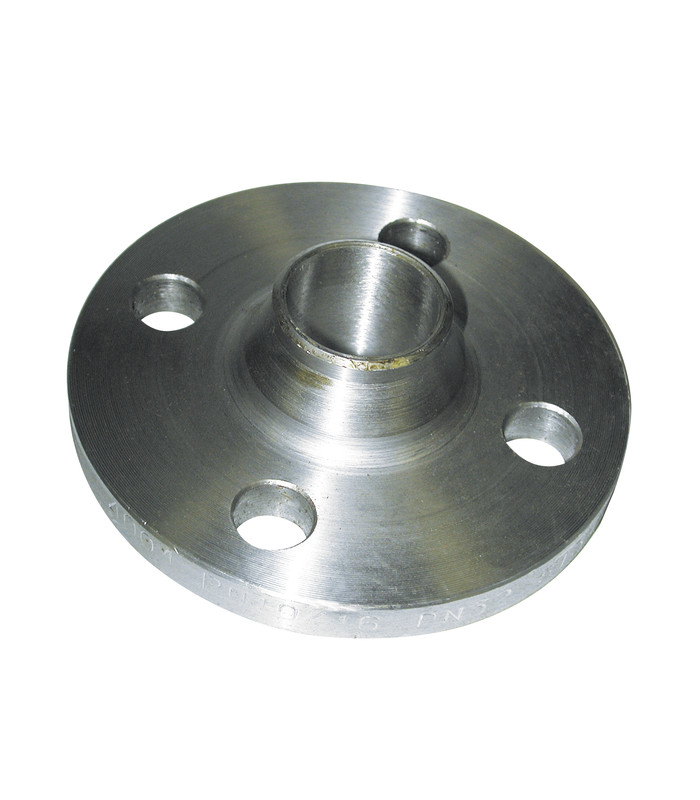

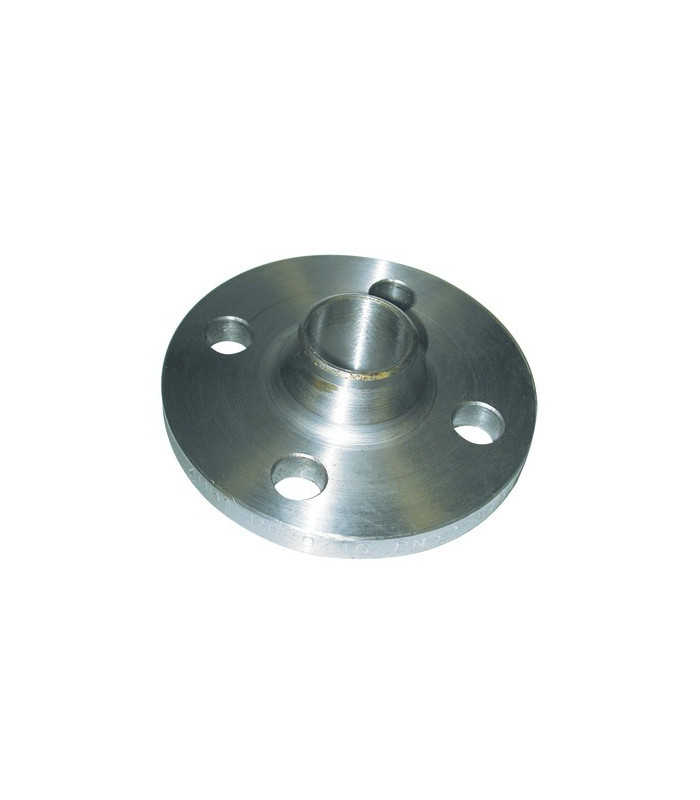

Collar flange to be welded steel DN15- DIFF - 110968

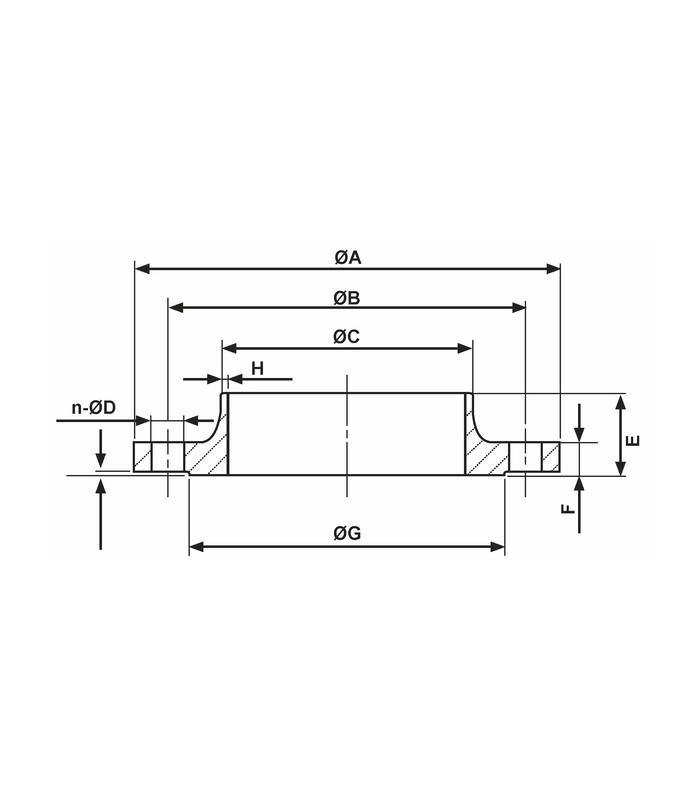

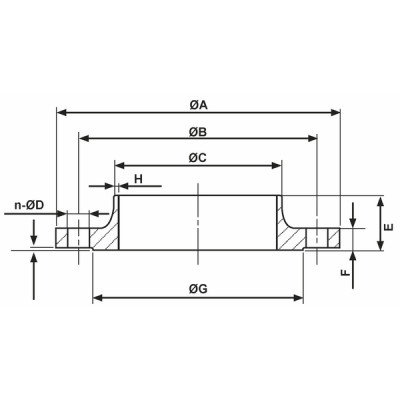

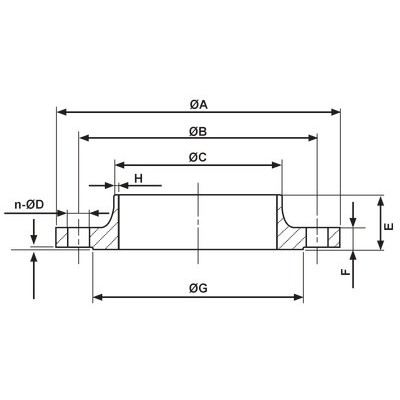

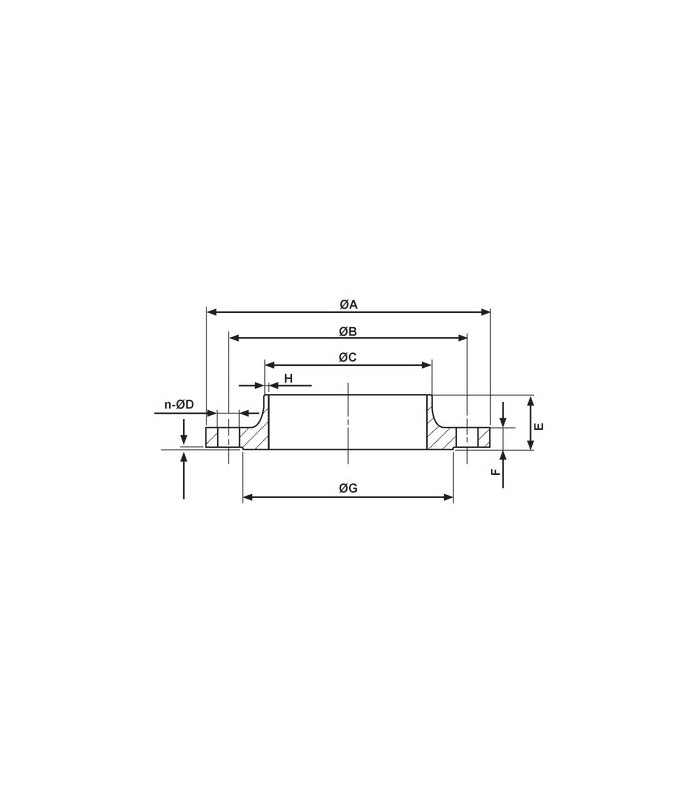

| F (mm) | 16.0 | |
| Fixation | M12 | |
| H (mm) | 2.0 | |
| Ø | 45 | |
| DN | 15.0 | |
| E (mm) | 38.0 | |
| D (mm) | 14.0 | |
| A (mm) | 95.0 | |
| Application | PN : 10-40 | |
| B (mm) | 65.0 | |
| C (mm) | 21.3 | |
| G (mm) | 45 | |
| Nombre | 4 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Hauteur emballage (m) | 0.038 | |
| Largeur emballage (m) | 0.095 | |
| Longueur emballage (m) | 0.095 | |
| Poids emballage (kg) | 0.7 |
110968
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- F (mm)
- 16.0
- Fixation
- M12
- H (mm)
- 2.0
- Ø
- 45
- DN
- 15.0
- E (mm)
- 38.0
- D (mm)
- 14.0
- A (mm)
- 95.0
- Application
- PN : 10-40
- B (mm)
- 65.0
- C (mm)
- 21.3
- G (mm)
- 45
- Nombre
- 4
- Norme
- EN1092_1
- Type
- BW11/B
- Hauteur emballage (m)
- 0.038
- Largeur emballage (m)
- 0.095
- Longueur emballage (m)
- 0.095
- Poids emballage (kg)
- 0.7
