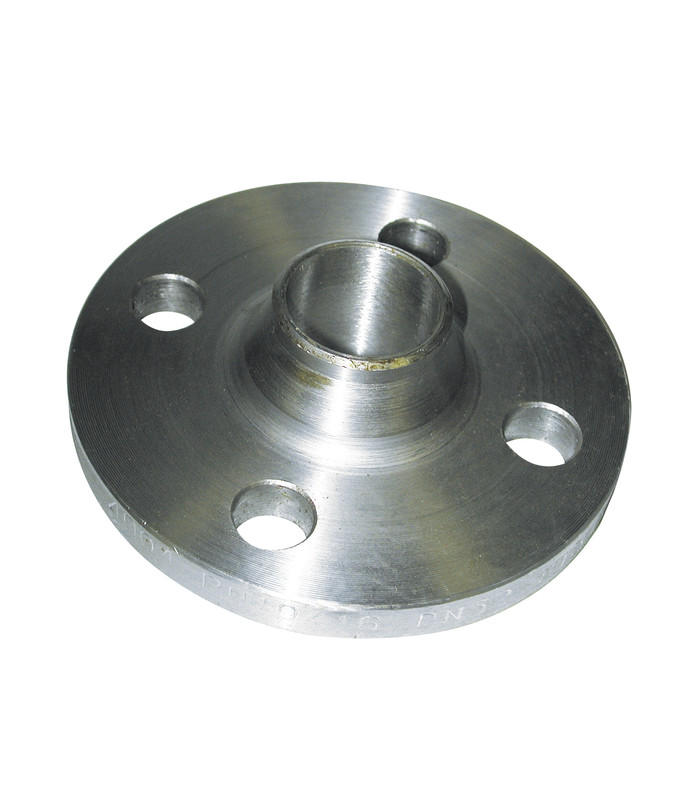

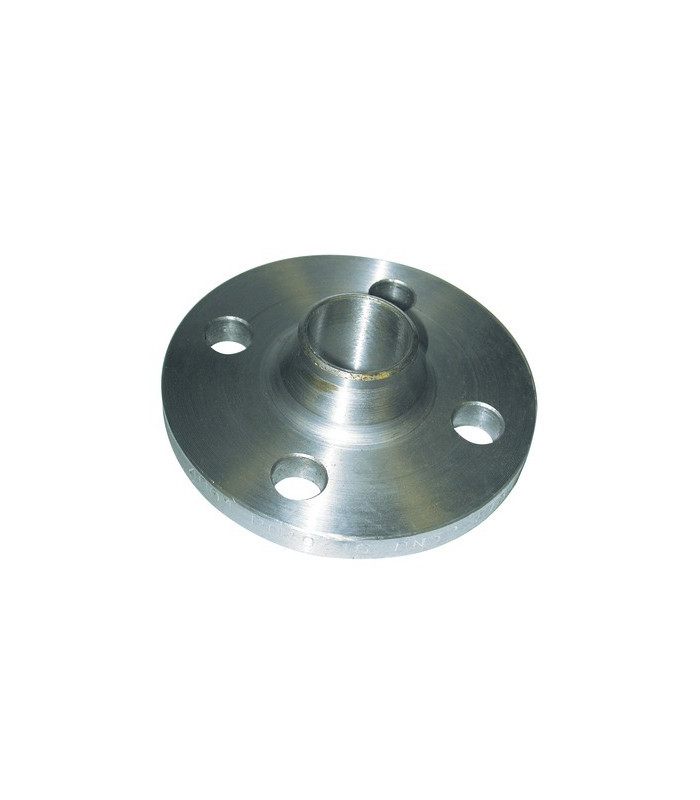

Collar flange to be welded steel DN25- DIFF - 110970

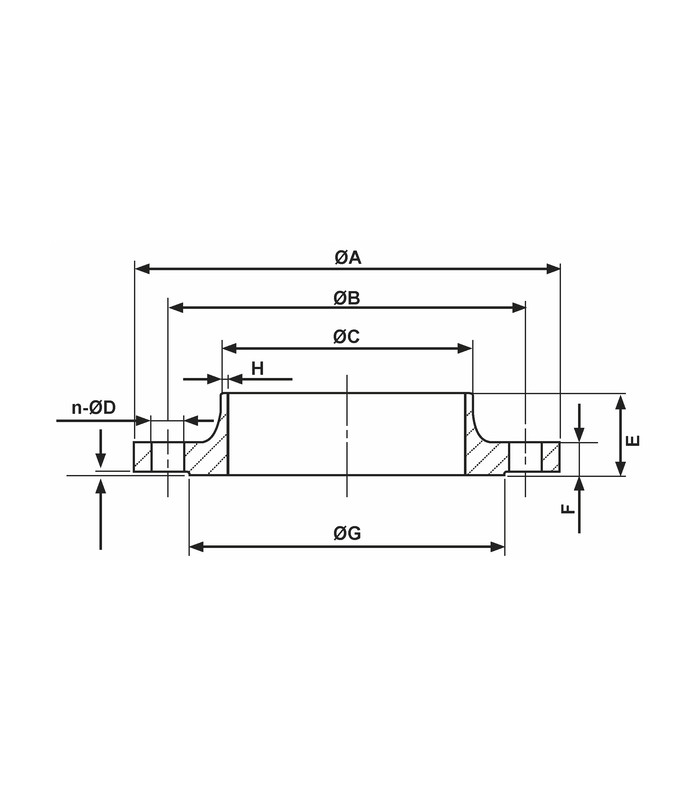

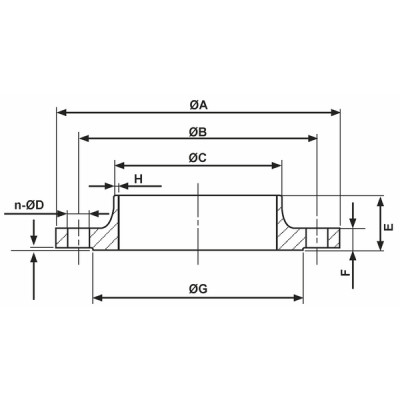

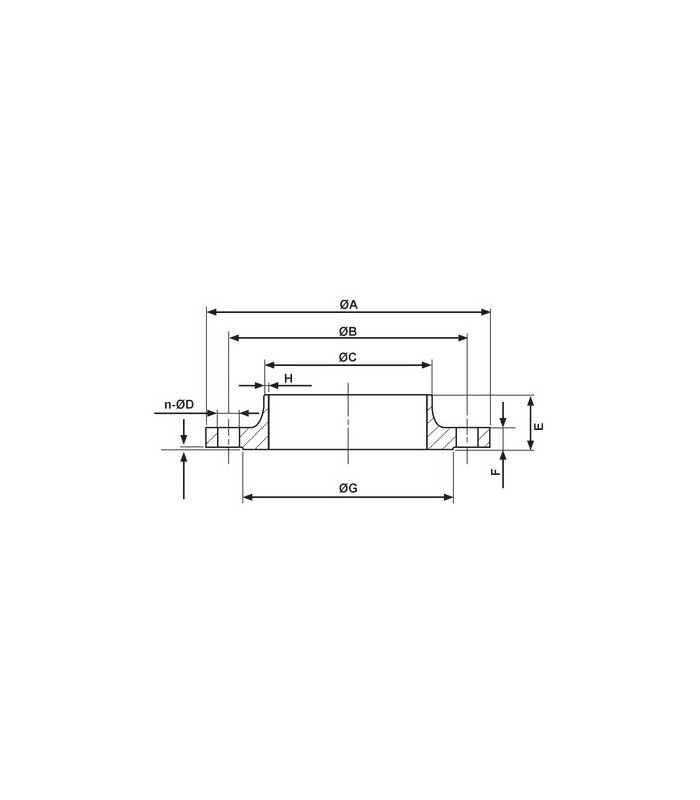

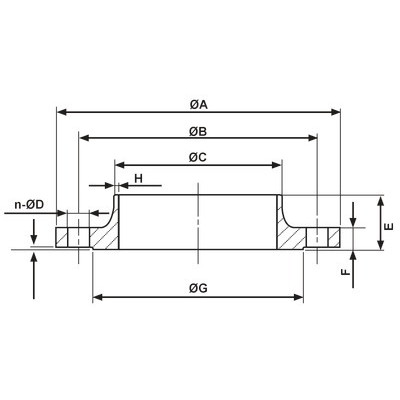

| F (mm) | 18.0 | |
| Fixation | M12 | |
| H (mm) | 2.6 | |
| Ø | 68 | |
| DN | 25.0 | |
| E (mm) | 40.0 | |
| D (mm) | 14.0 | |
| A (mm) | 115.0 | |
| Application | PN : 10-40 | |
| B (mm) | 85.0 | |
| C (mm) | 33.7 | |
| G (mm) | 68 | |
| Nombre | 4 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Hauteur emballage (m) | 0.04 | |
| Largeur emballage (m) | 0.115 | |
| Longueur emballage (m) | 0.115 | |
| Poids emballage (kg) | 1.25 |
110970
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- F (mm)
- 18.0
- Fixation
- M12
- H (mm)
- 2.6
- Ø
- 68
- DN
- 25.0
- E (mm)
- 40.0
- D (mm)
- 14.0
- A (mm)
- 115.0
- Application
- PN : 10-40
- B (mm)
- 85.0
- C (mm)
- 33.7
- G (mm)
- 68
- Nombre
- 4
- Norme
- EN1092_1
- Type
- BW11/B
- Hauteur emballage (m)
- 0.04
- Largeur emballage (m)
- 0.115
- Longueur emballage (m)
- 0.115
- Poids emballage (kg)
- 1.25
